(4) Remove the exhaust system-to-body ground
strap from over the top of the right frame rail.
INSTALLATION
ENGINE-TO-BODY GROUND STRAPS
(1) Position the engine-to-body ground strap(s) in
the engine compartment.
(2) On 5.2L and 5.9L engines only, position the
right engine-to-body ground strap eyelet terminal
over the inboard rear valve cover stud of the right
cylinder head.
(3) On 5.2L and 5.9L engines only, install and
tighten the nut and washer that secures the right
engine-to-body ground strap eyelet terminal to the
inboard rear valve cover stud of the right cylinder
head. Tighten the nut to 2.8 N·m (25 in. lbs.).
(4) On 4.7L engines only, install and tighten the
screw and washer that secures the right engine-to-
body ground strap eyelet terminal to the transmis-
sion at the right rear corner of the engine block.
Tighten the screw to 67.8 N·m (50 ft. lbs.).
(5) On 4.7L engines only, position the right engine-
to-body ground strap eyelet terminal and the wire
harness grounds over the weld stud on the right
front fender wheelhouse inner panel.
(6) On 4.7L engines only, install and tighten the
nut and washer that secures the right engine-to-body
ground strap eyelet terminal and the wire harness
grounds to the weld stud on the right front fender

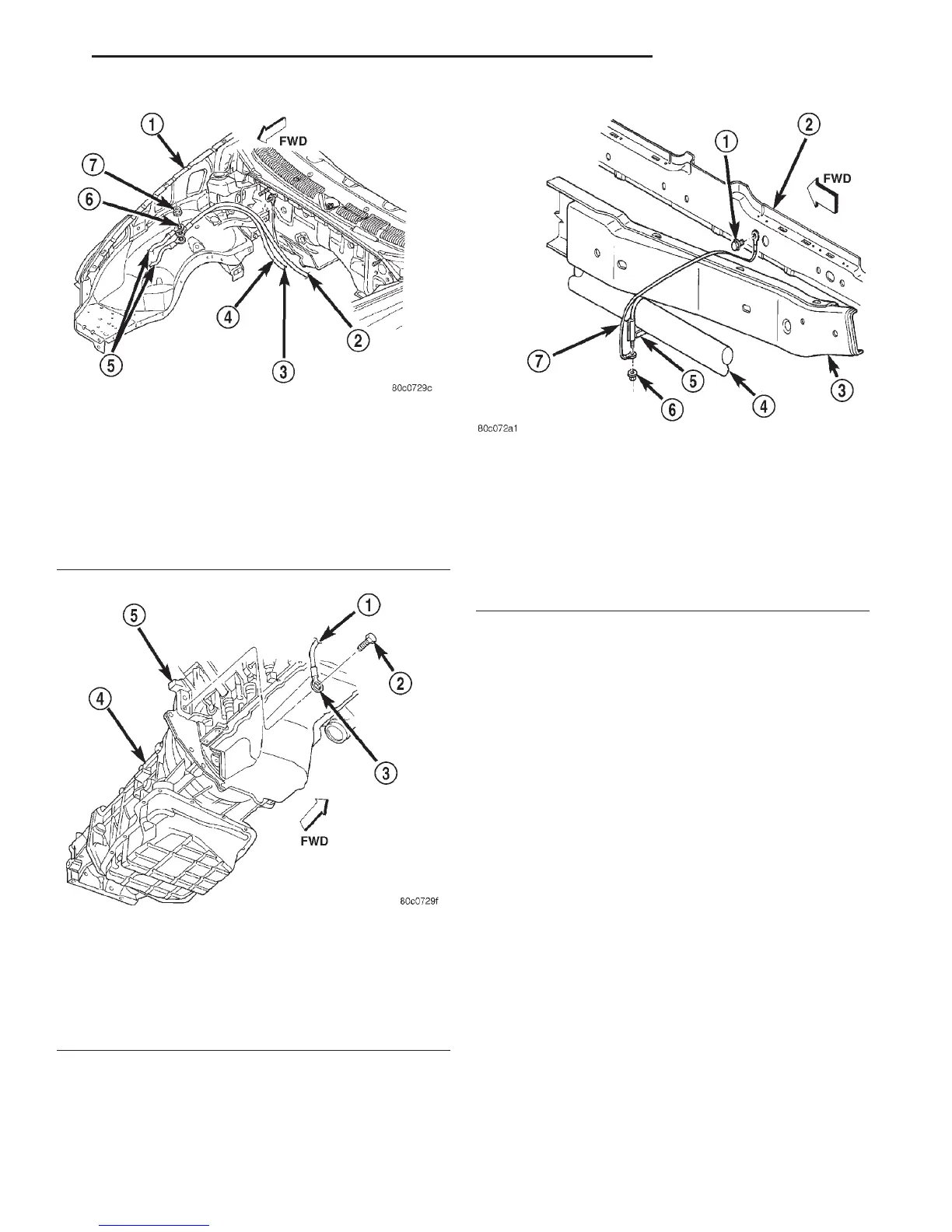

Fig. 19 Engine-To-Body Ground Strap Remove/
Install - 4.7L Engine Only
1 – RIGHT FRONT FENDER
2 – TO RIGHT CYLINDER HEAD
3 – TO TRANSMISSION
4 – RIGHT GROUND STRAP
5 – WIRE HARNESS GROUNDS
6 – WELD STUD
7 – NUT AND WASHER
Fig. 20 Engine-To-Body Ground Strap Remove/
Install - 4.7L Engine Only
1 – TO RIGHT FENDER STUD
2 – SCREW AND WASHER
3 – RIGHT GROUND STRAP
4 – TRANSMISSION
5 – ENGINE BLOCK
Fig. 21 Exhaust System-To-Body Ground Strap
Remove/Install
1 – SCREW
2 – RIGHT BODY SILL PANEL
3 – RIGHT FRAME RAIL
4 – EXHAUST PIPE
5 – CLAMP
6 – NUT AND WASHER
7 – EXHAUST SYSTEM-TO-BODY GROUND STRAP
DN AUDIO SYSTEMS 8F - 19
REMOVAL AND INSTALLATION (Continued)
