OVERHEAD CONSOLE READING LAMP BULB
REMOVAL
(1) Using a small flat blade, carefully pry forward
edge of reading lamp lens downward from lamp.
(2) Disengage lamp lens from pivots on overhead
console.
(3) Rotate bulb holder and pull bulb from lamp.
INSTALLATION
(1) Position bulb in lamp and rotate to secure.
(2) Position lamp lens on overhead console. Ensure
contact tab (Fig. 11) on lamp lens is aligned with
lamp switch.
(3) Carefully press lamp lens onto pivots.

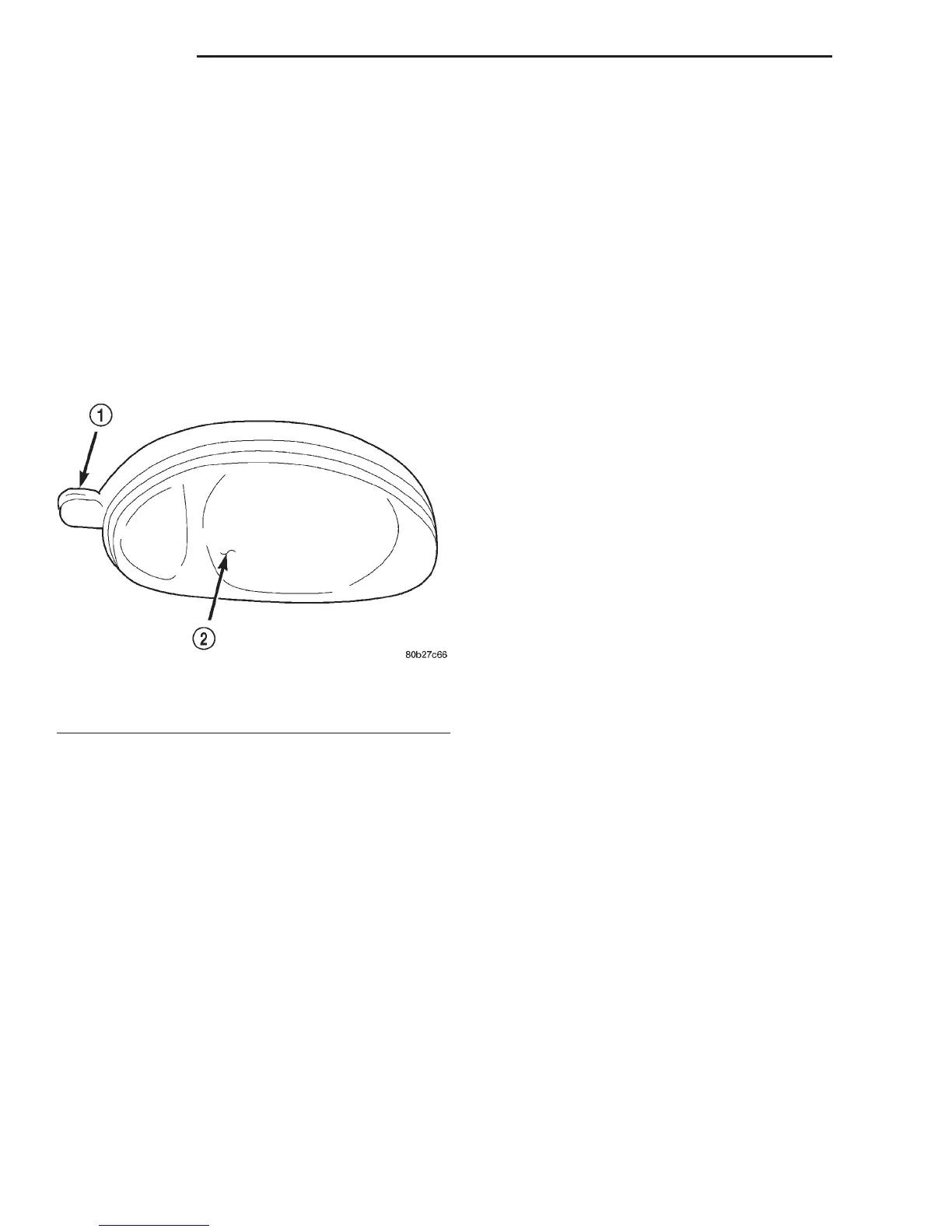

Fig. 11 Reading Lamp Lens
1 – SWITCH CONTACT TAB
2 – READING LAMP LENS
8L - 14 LAMPS DN
REMOVAL AND INSTALLATION (Continued)
