INSTALLATION
(1) Engage the replacement bulb wire loop to the
terminal closest to the lamp base wire connector.
(2) Depress the opposite terminal inward and
engage the remaining bulb wire loop.
(3) Position the lamp lens on the lamp base and
press into place.
DOME LAMP BULB
REMOVAL
(1) Using a small flat blade, pry the left side (driv-
er’s side) of the lamp lens downward.
(2) Pull bulb from lamp.
INSTALLATION
(1) Install bulb in lamp.
(2) Position lens on lamp and snap into place.
2ND SEAT DOME/READING LAMP BULB
REMOVAL
(1) Using a small flat blade, pry the center rear-
ward edge of the dome/reading lamp lens downward
from lamp (Fig. 9).
(2) Pull bulb from socket (Fig. 10).
INSTALLATION
(1) Position bulb in lamp.
(2) Push the lamp lens up into the lamp to secure.

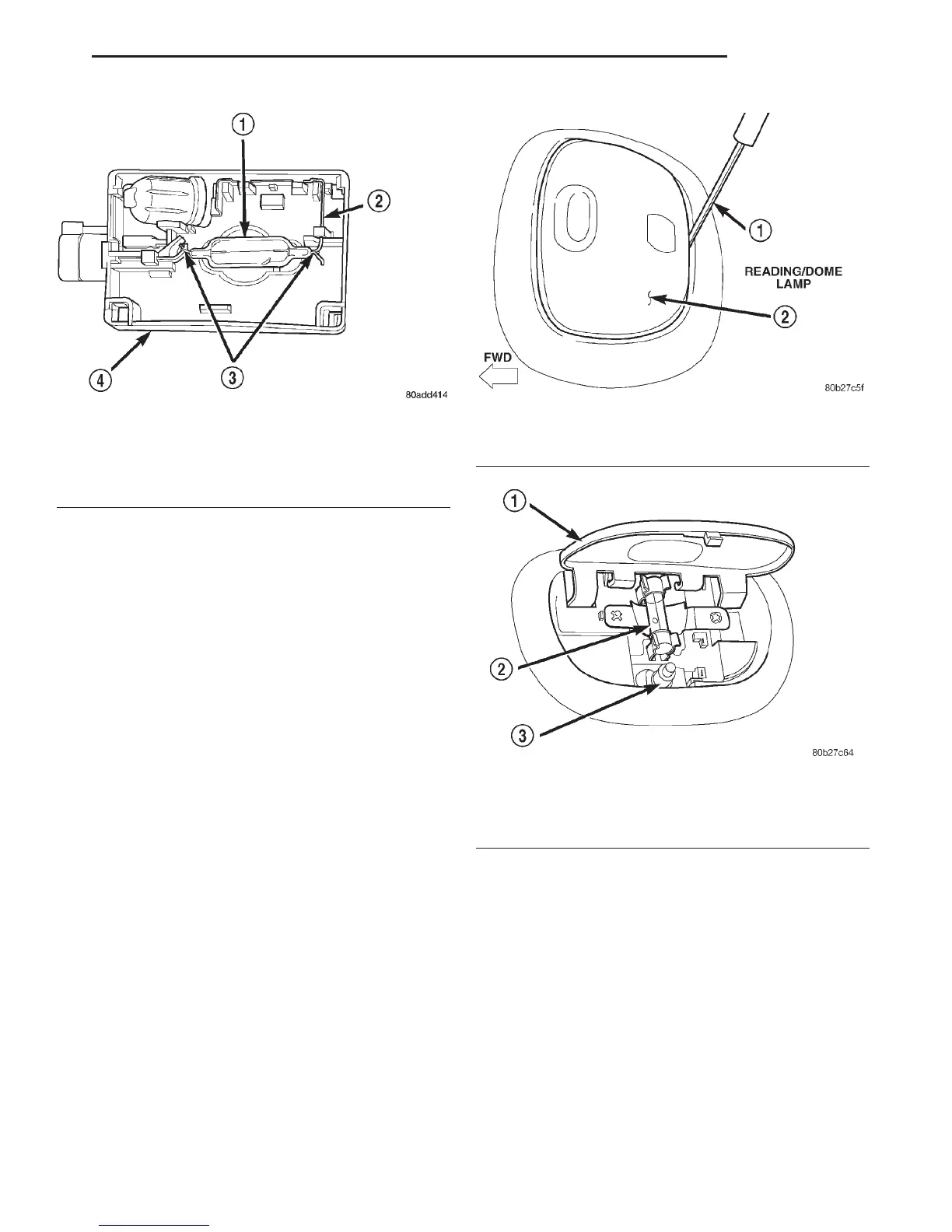

Fig. 8 Underhood Lamp Bulb
1 – BULB
2 – DEPRESS TERMINAL INWARD
3 – BULB WIRE LOOP
4 – LAMP BASE
Fig. 9 Lamp Lens
1 – FLAT BLADE
2 – LENS
Fig. 10 Dome/Reading Lamp Bulb
1 – LAMP LENS
2 – BULB
3 – SWITCH
DN LAMPS 8L - 13
REMOVAL AND INSTALLATION (Continued)
