REMOVAL AND INSTALLATION
HEADLAMP
REMOVAL
(1) Open hood.
(2) Remove the bolts attaching headlamp to the
inner fender panel (Fig. 1).
(3) Grasp the headlamp and firmly pull the head-
lamp to disengage it from the panel.
(4) Disengage the connector from the headlamp
bulb.
(5) Separate bulb from headlamp.
(6) Remove the bulb sockets from the front park/
turn signal/side marker lamps
(7) Separate headlamp module from vehicle.
INSTALLATION
CAUTION: Do not touch the bulb glass with fingers
or other oily surfaces. Reduced bulb life will result.
(1) Install bulb sockets for the front park/turn sig-
nal/side marker lamps
(2) Engage the connector to the headlamp bulb.
(3) Position headlamp in inner fender panel and
firmly push headlamp inward to lock into place.
(4) Install the bolts attaching headlamp to the
panel.
FOG LAMP
The fog lamps are serviced from the rearward side
of the front bumper.
REMOVAL
(1) Disengage fog lamp harness connector.
(2) Remove the bolts attaching the fog lamp to the
bumper (Fig. 2).
(3) Separate fog lamp from bumper.
INSTALLATION
(1) Position fog lamp in bumper.
(2) Install the bolts attaching the fog lamp to the
bumper.
(3) Connect fog lamp harness connector.
(4) Check for proper operation and beam align-
ment.
PARK, TURN SIGNAL AND SIDE MARKER
LAMP
REMOVAL
(1) Remove torx screw attaching park lamp to
headlamp module (Fig. 3).
(2) Pull the park and turn signal lamp outward
and separate from headlamp module.
(3) Remove park and turn signal sockets from back
of lamp (Fig. 4).
(4) Remove side marker socket from back of lamp.
(5) Separate park and turn signal lamp from vehi-
cle.
INSTALLATION
(1) Install side marker socket in back of lamp.
(2) Install park and turn signal sockets in back of
lamp.
(3) Using the guides on the bottom and side of the
headlamp module, align the park and turn signal
lamp under headlamp module.
(4) Slide the park and turn signal lamp inward
under headlamp module. Push firmly until the lamp
is seated.

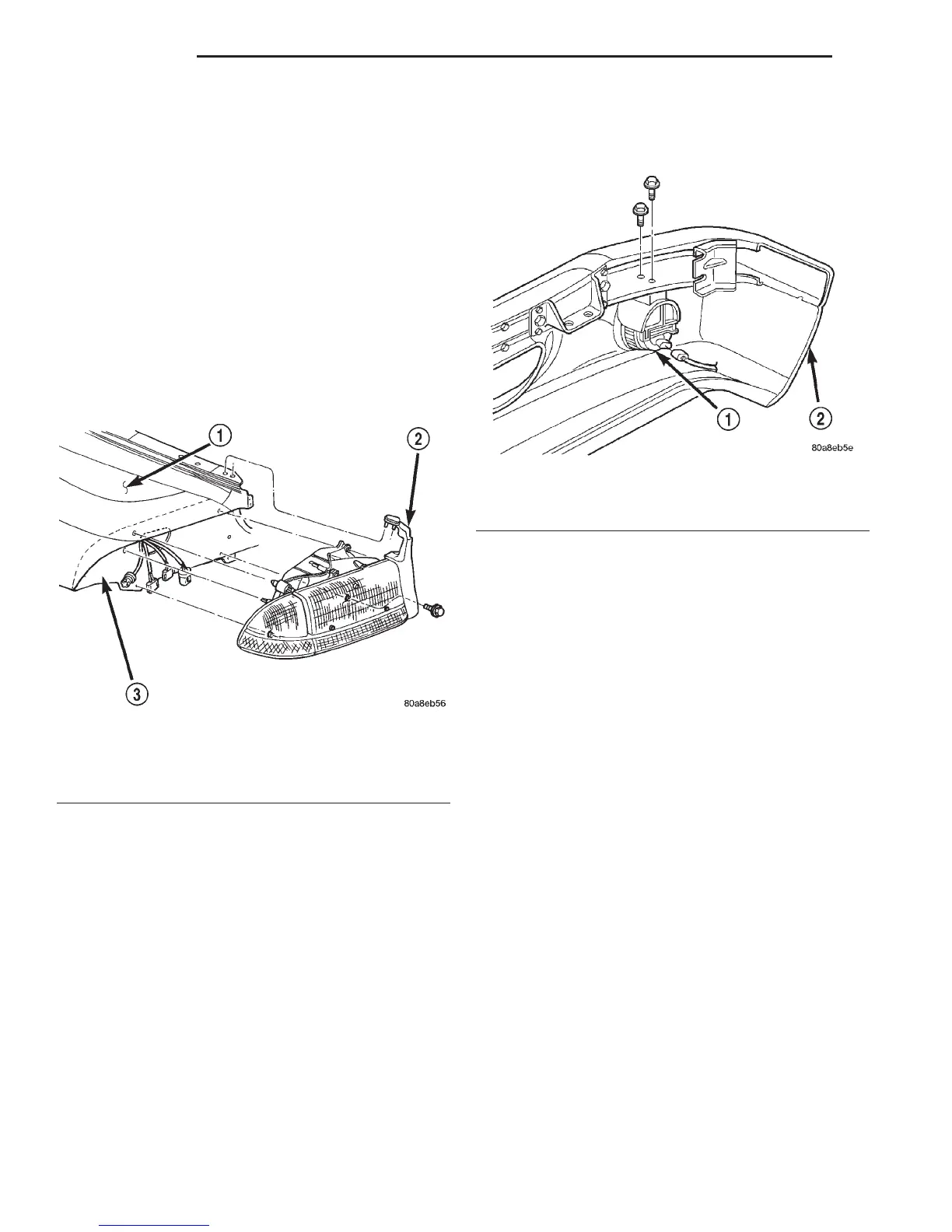

Fig. 1 Headlamp
1 – FENDER
2 – SEAL
3 – INNER FENDER
Fig. 2 Fog Lamp
1 – FOG LAMP
2 – FRONT BUMPER
8L - 16 LAMPS DN
