(5) Install screw attaching park lamp to headlamp
module.
CENTER HIGH MOUNTED STOP LAMP
(CHMSL)
REMOVAL
(1) Remove liftgate trim panel.
(2) Remove CHMSL lamp mounting screws (Fig.
5).
(3) Remove CHMSL lamp.
(4) Turn bulb sockets 1/4 turn counterclockwise.
(5) Separate socket from lamp.
INSTALLATION
(1) Position socket in lamp.
(2) Turn bulb sockets 1/4 turn clockwise.
(3) Position CHMSL lamp in place and install
mounting screws.
(4) Install liftgate trim panel.
LIFTGATE/CARGO LAMP
REMOVAL
(1) Using a small flatblade, carefully pry the out-
ward edge of the liftgate/cargo lamp from trim panel.
(2) Release the locking tab on the lamp harness
connector and disconnect the harness connector from
the lamp.
(3) Separate the lamp from the liftgate (Fig. 6).
INSTALLATION
(1) Connect the harness connector to the lamp.
(2) Position the lamp in the liftgate and press
inward to secure.
TAIL, BRAKE, TURN SIGNAL AND BACK-UP
LAMP
REMOVAL
(1) Release liftgate latch and open liftgate.
(2) Remove screws attaching tail, brake, turn sig-
nal and back-up lamp to liftgate opening (Fig. 7).
(3) Separate inner end of lamp from quarter panel.
(4) Disengage hook holding outer end of lamp to
quarter panel opening.
(5) Separate lamp from quarter panel.
(6) Disengage positive lock on wire connector (Fig.
8).

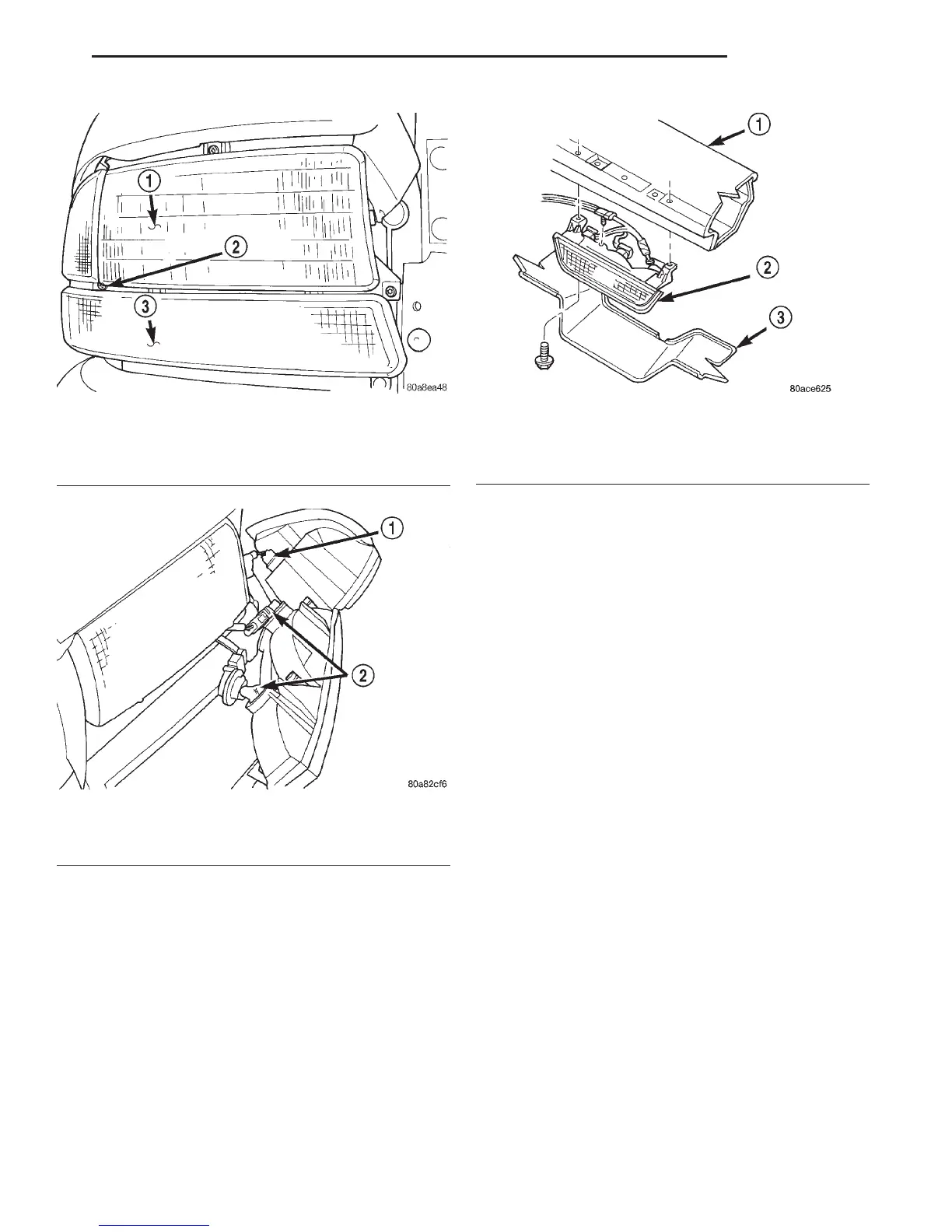

Fig. 3 Park Lamp Screw
1 – HEADLAMP
2 – HIDDEN SCREW
3 – PARK LAMP
Fig. 4 Park, Turn Signal And Side Marker Lamp
1 – SIDE MARKER LAMP BULB
2 – PARK/TURN SIGNAL LAMP BULB
Fig. 5 Center High Mounted Stop Lamp
1 – LIFTGATE
2 – CHMSL
3 – LIFTGATE TRIM
DN LAMPS 8L - 17
REMOVAL AND INSTALLATION (Continued)
