(7) Depress lock tab on the side of the body har-
ness connector.
(8) Disengage wire connector from tail lamp circuit
board.
(9) Separate tail lamp from vehicle.
INSTALLATION
(1) Place tail lamp in position on vehicle.
(2) Engage wire connector into tail lamp circuit
board.
(3) Engage positive lock on wire connector.
(4) Place lamp in position in position on quarter
panel.
(5) Engage hook to hold outer end of lamp to quar-
ter panel opening.
(6) Position inner end of lamp into quarter panel.
(7) Install screws attaching tail, stop, turn signal
and back-up lamp to liftgate opening.
LICENSE PLATE LAMP
REMOVAL
(1) Remove screws attaching license plate lamp to
rear bumper.
(2) Remove bulb socket from lamp.
(3) Separate lamp from bumper.
INSTALLATION
(1) Install bulb socket in lamp.
(2) Position lamp at bumper.
(3) Install screws attaching license plate lamp to
rear bumper.
UNDERHOOD LAMP
REMOVAL
(1) Disconnect the wire harness connector from the
lamp.
(2) Remove lamp lens.
(3) Remove bulb.
(4) Remove screw attaching underhood lamp to the
inner hood panel (Fig. 9).
(5) Separate underhood lamp from vehicle.

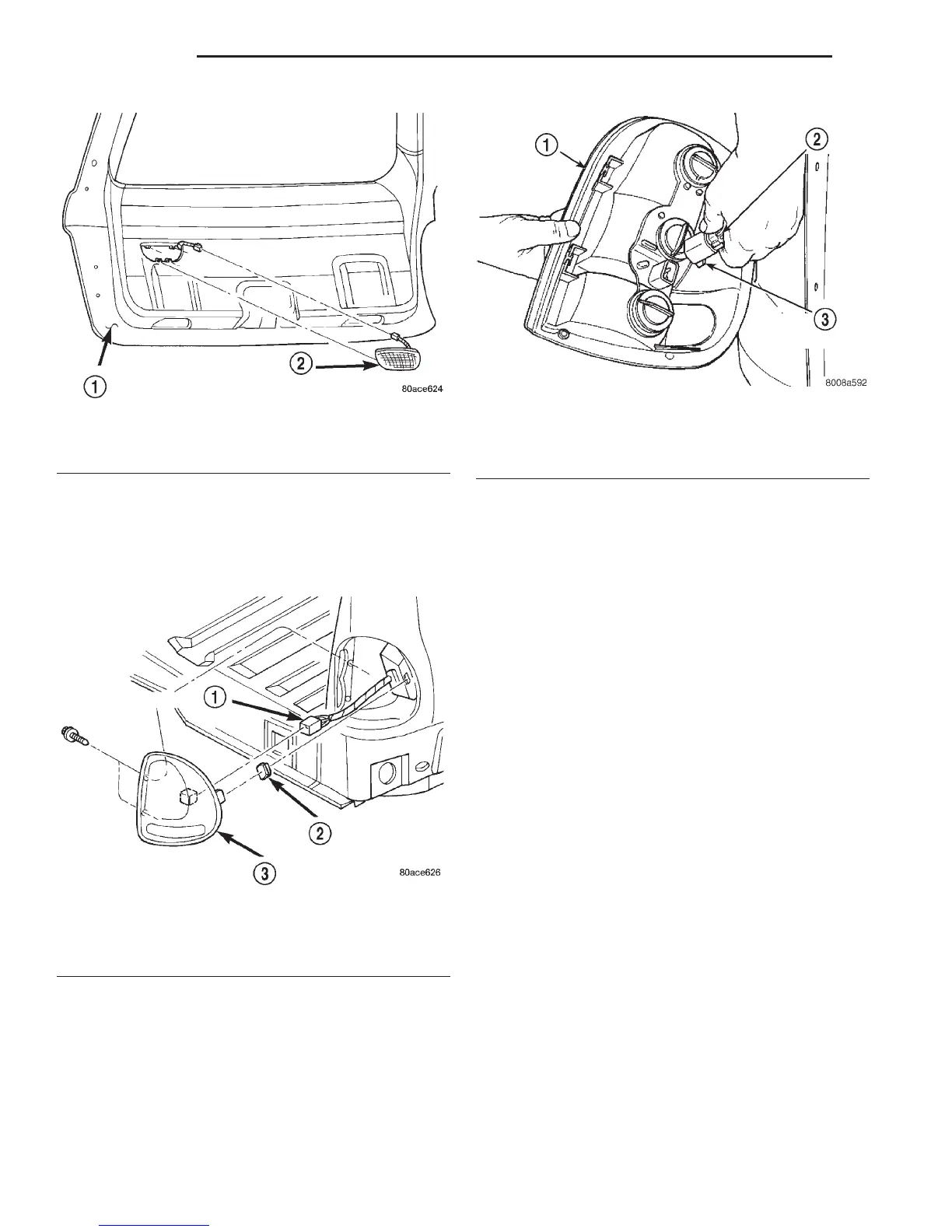

Fig. 6 Liftgate/Cargo Lamp
1 – LIFTGATE
2 – LIFTGATE LAMP
Fig. 7 Tail, Brake, Turn Signal and Back-up Lamp
1 – CONNECTOR
2 – GROMMET
3 – TAIL LAMP
Fig. 8 Tail Lamp Connector
1 – TAIL, STOP AND TURN SIGNAL LAMP
2 – WIRE CONNECTOR
3 – POSITIVE LOCK
8L - 18 LAMPS DN
REMOVAL AND INSTALLATION (Continued)
