INSTALLATION
NOTE: If the relay and fuse block is being replaced
with a new unit, be certain to transfer each of the
fuses, the flasher and the relays from the faulty
relay and fuse block to the proper cavities of the
replacement relay and fuse block. Refer to Fuse/
Fuse Block in the index of this service manual for
the location of complete relay and fuse block circuit
diagrams and cavity assignments.
(1) Position the relay and fuse block and the
instrument panel wire harness onto the instrument
panel.
(2) Install the relay and fuse block by engaging its
mounting slots onto the tabs on the Junction Block
(JB).
(3) Engage each of the retainers that secure the
instrument panel wire harness to the instrument
panel components. Refer to Connector Locations in
the index of this service manual for the location of
more information on the instrument panel wire har-
ness retainer locations.
(4) Install all of the fasteners that secure each of
the instrument panel wire harness ground eyelets to
the instrument panel components. Refer to Connec-
tor Locations in the index of this service manual
for the location of more information on the ground
eyelet locations.
(5) Reconnect each of the instrument panel wire
harness connectors. Refer to Connector Locations
in the index of this service manual for the location of
more information on the instrument panel wire har-
ness connector locations.
(6) Install the instrument panel assembly onto the
dash panel. Refer to Instrument Panel Assembly
in the index of this service manual for the location of
the instrument panel assembly installation proce-
dures.
(7) Reconnect the battery negative cable.

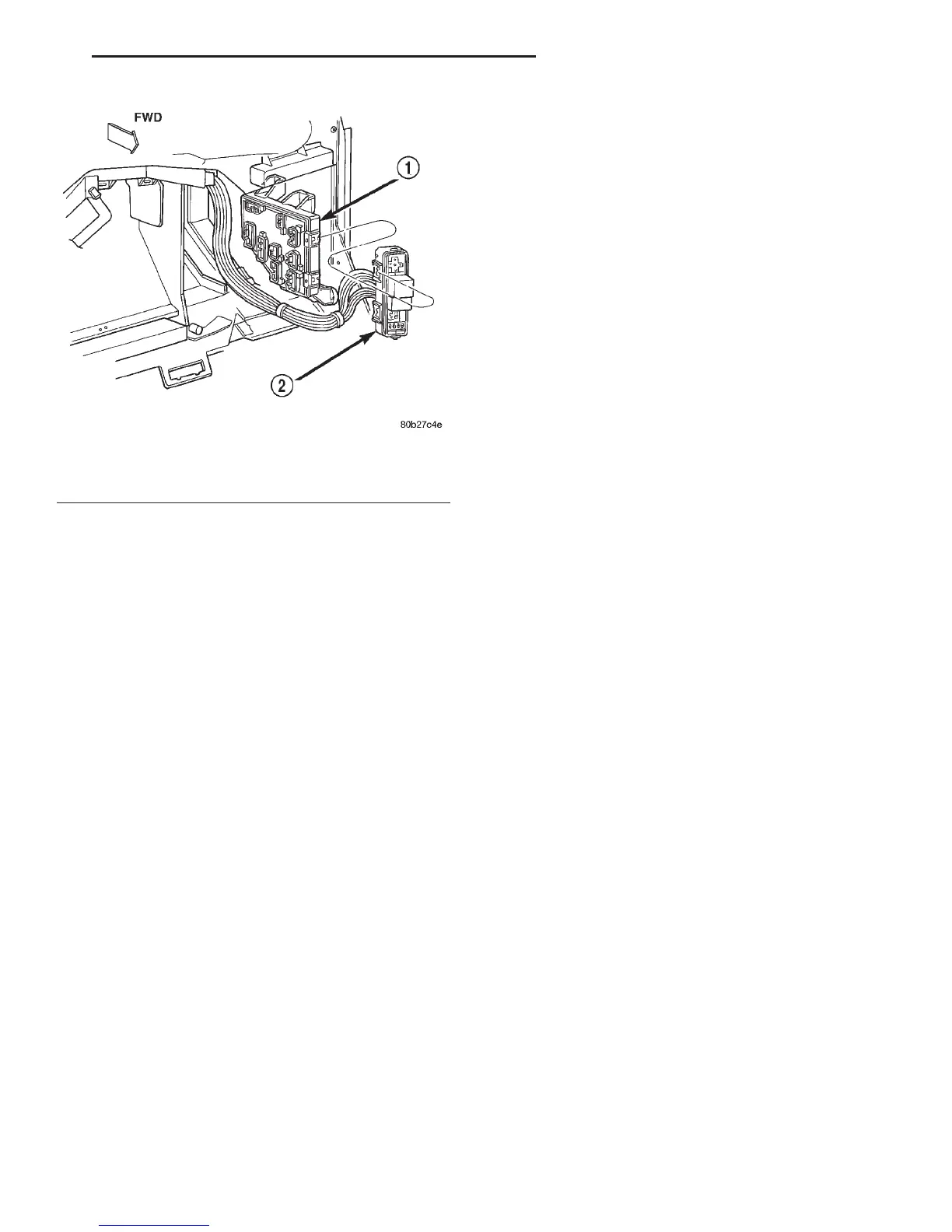

Fig. 11 Relay and Fuse Block Remove/Install
1 – JUNCTION BLOCK
2 – RELAY AND FUSE BLOCK
