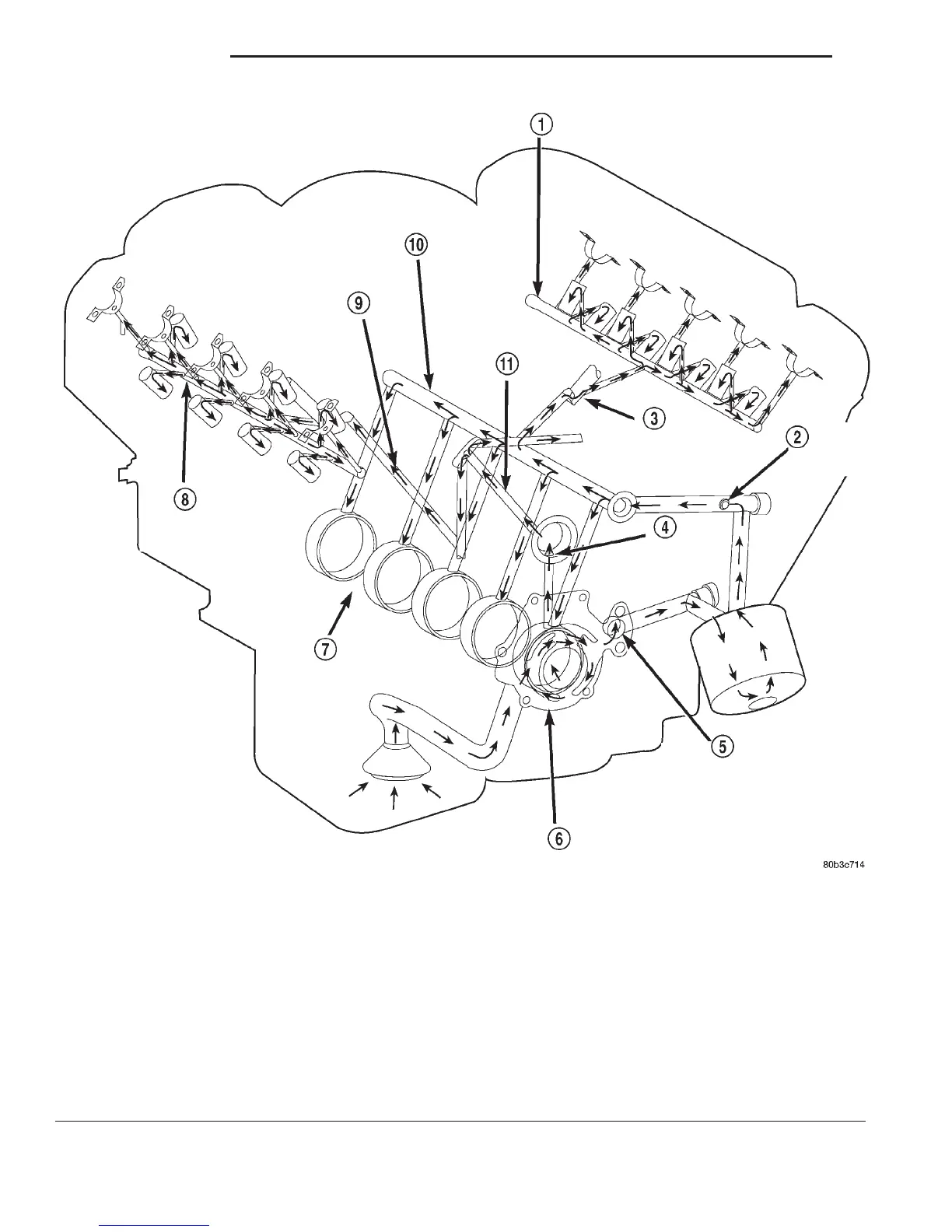

1 – LEFT CYLINDER HEAD OIL GALLERY
2 – OIL PRESSURE SENSOR LOCATION
3 – TO LEFT CYLINDER HEAD
4 – OIL FEED TO IDLER SHAFT
5 – OIL PUMP OUTLET TO BLOCK
6 – OIL PUMP
7 – TO CRANKSHAFT MAIN JOURNALS
8 – RIGHT CYLINDER HEAD OIL GALLERY
9 – TO RIGHT CYLINDER HEAD
10 – CYLINDER BLOCK MAIN GALLERY
11 – OIL FEED TO BOTH SECONDARY TENSIONERS
Fig. 2 Engine Oil Lubrication System
9 - 4 4.7L ENGINE DN
DESCRIPTION AND OPERATION (Continued)
