OPERATION
The muffler is designed to muffle the sound of the
exhaust as if leaves the engine.
TAILPIPE
DESCRIPTION
The tailpipe is made of stainless steel and attaches
to the muffler (Fig. 5).
OPERATION
The tailpipe channels the exhaust out of the muf-
fler and out from under the vehicle to control noise
and prevent exhaust gas fumes from entering the
passenger compartment.
HEAT SHIELDS
DESCRIPTION
There are two types of heat shields used. One is
stamped steel the other is molded foil sheets. The
shields attach to the vehicle around the exhaust system
(Fig. 6).
OPERATION
The heat shields prevent heat from the exhaust
system from entering the passenger area and other
areas where the heat can cause damage to other com-
ponents.

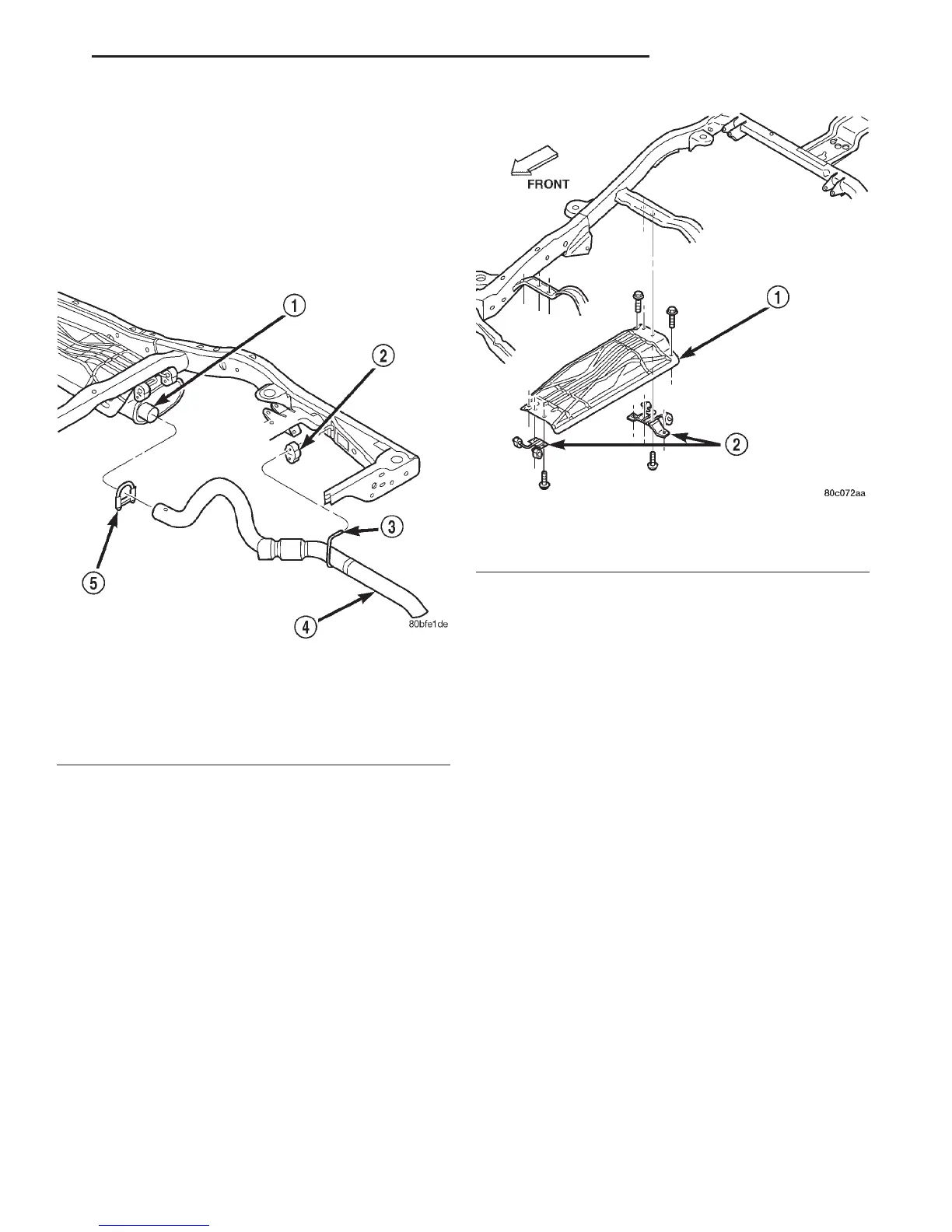

Fig. 6 Heat Shield—Typical
1 – MUFFLER HEAT SHIELD
2 – MUFFLER HANGERS
Fig. 5 Tailpipe—Typical
1 – MUFFLER
2 – TAILPIPE HANGER INSULATOR
3 – TAILPIPE HANGER
4 – TAILPIPE
5 – CLAMP
DN EXHAUST SYSTEM 11 - 3
DESCRIPTION AND OPERATION (Continued)
