(18) Remove the depth shims from the pinion
shaft. Record the thickness of the depth shims.
INSTALLATION
(1) Apply Mopart Door Ease, or equivalent, stick
lubricant to outside surface of bearing cup.

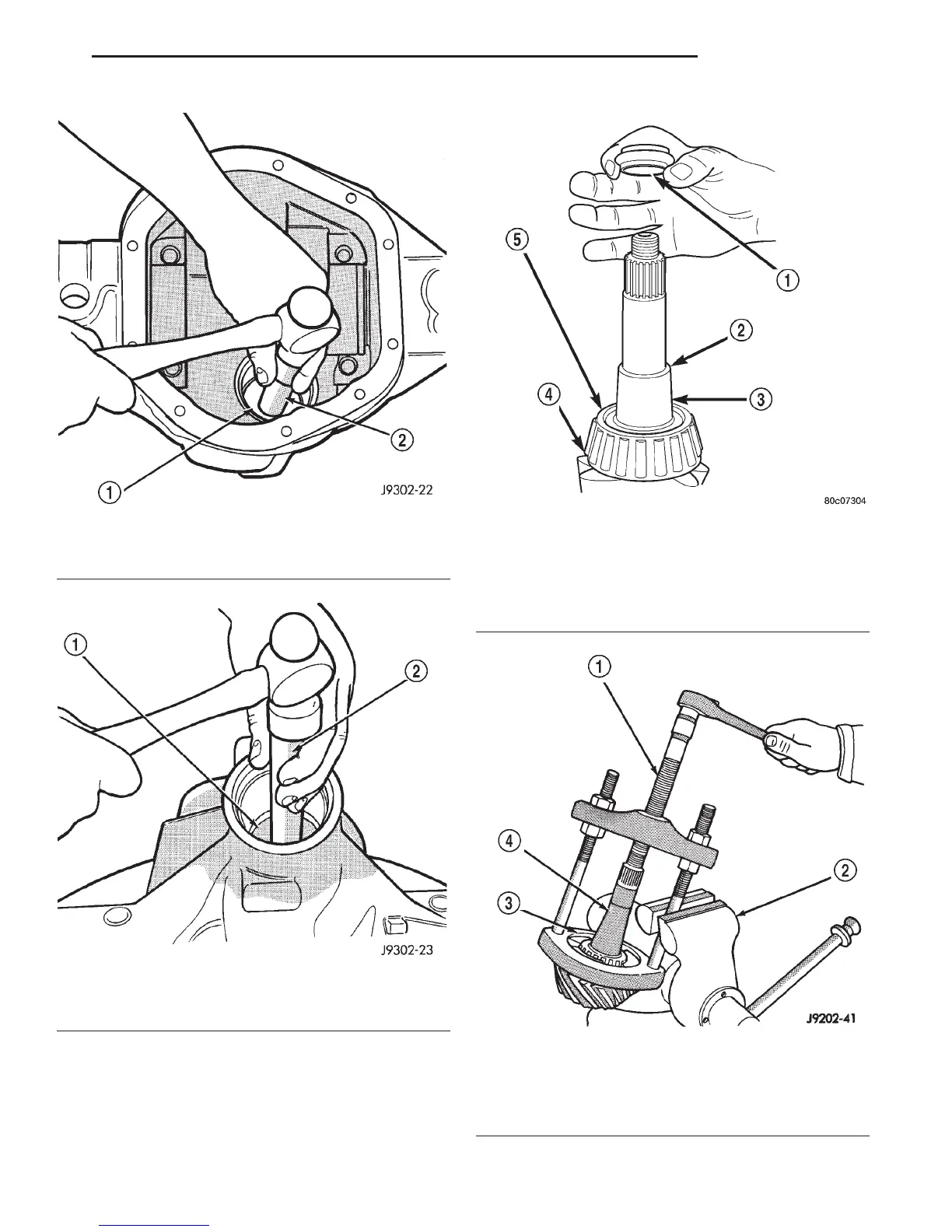

Fig. 21 Front Bearing Cup Removal
1 – REMOVER
2 – HANDLE
Fig. 22 Rear Bearing Cup Removal
1 – DRIVER
2 – HANDLE
Fig. 23 Collapsible Spacer
1 – COLLAPSIBLE SPACER
2 – SHOULDER
3 – PINION
4 – PINION DEPTH SHIM
5 – REAR BEARING
Fig. 24 Rear Bearing Removal
1 – SPECIAL TOOL C-293–PA
2 – VISE
3 – ADAPTERS
4 – DRIVE PINION GEAR SHAFT
DN C205F AXLE 3 - 43
REMOVAL AND INSTALLATION (Continued)
