ParaMon-Pro X instruction manual DOC.60391-01/21

14.1.3 Output step

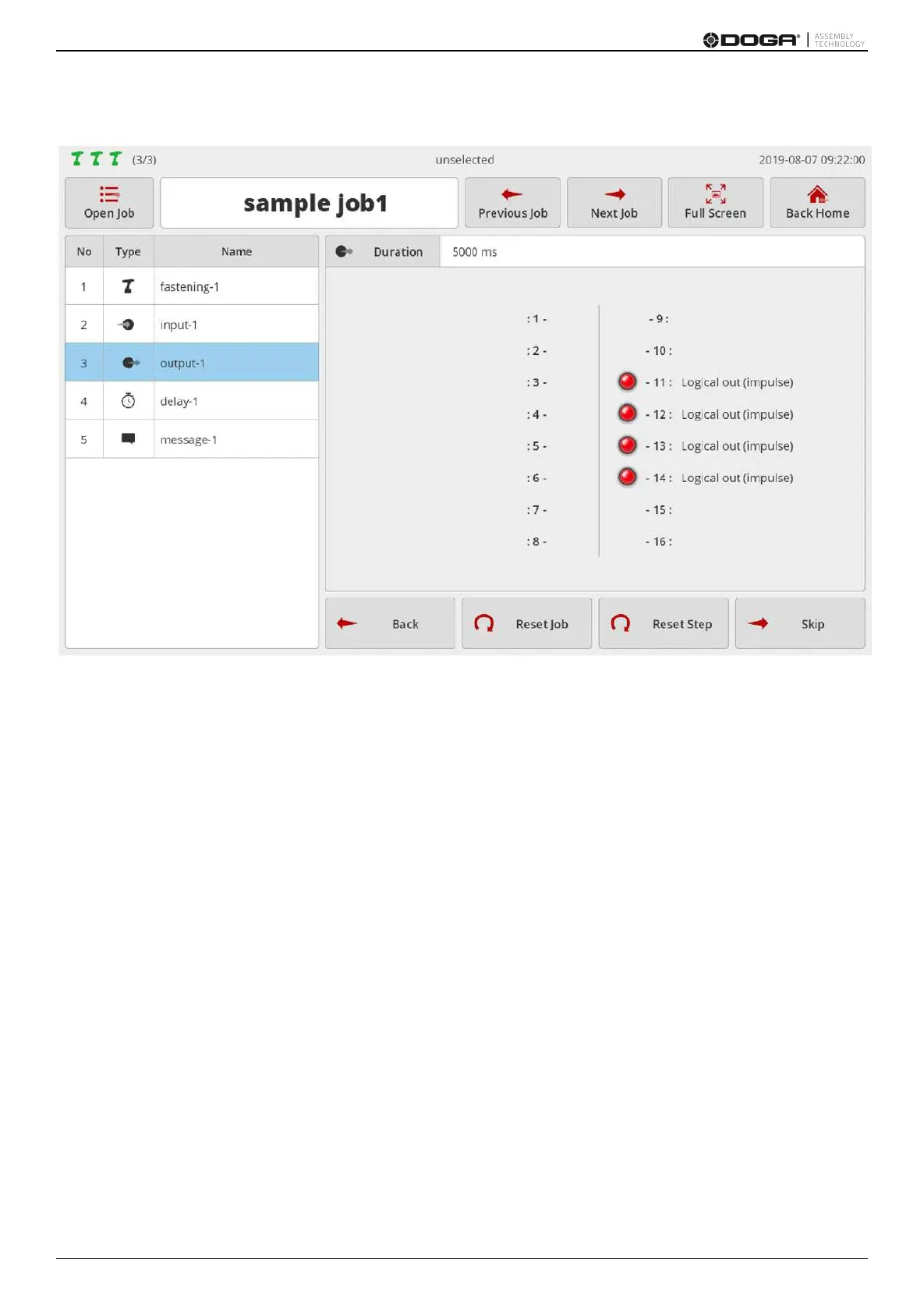

The above page appears when four inputs were programmed to ‘Impulse’ in the output step.

LED light is turned on four enabled ports only.
