ParaMon-Pro X instruction manual DOC.60391-01/21
96
14.1.2 Input step

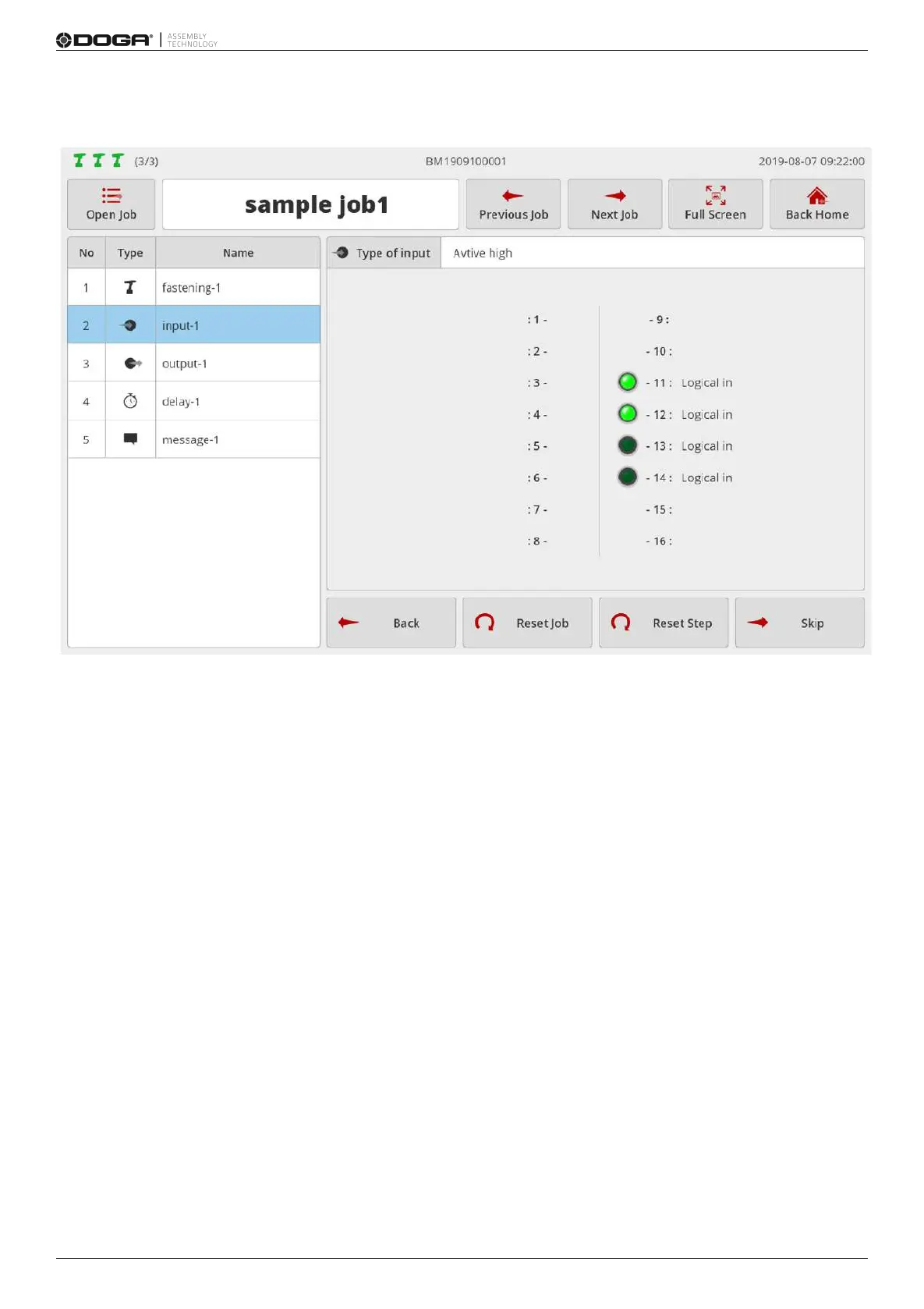

The above page appears when four inputs were programmed to ‘Active high’ in the input step.
LED light is turned on four enabled ports only.
LED light is turned on in input-sensed ports such as No.11 and No.12.
LED light is off in non-input ports such as No.13 and No.14.
