9.1 Graph

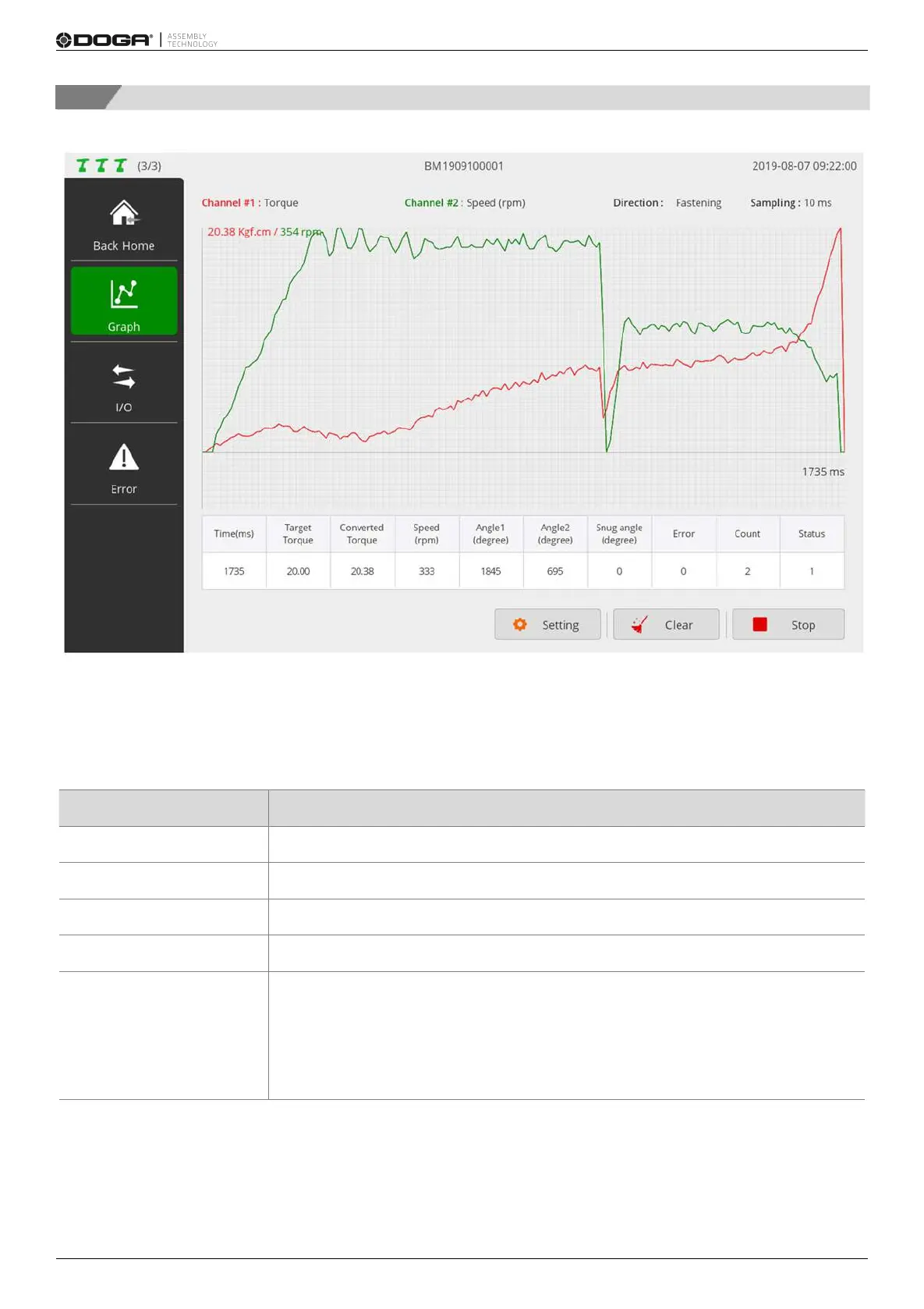

It is able to check the target tool’s fastening data in realtime graph.
In addition, it is possible to compare and analyze correlations between two different source data by providing a total of
2 channels and supporting 8 different source data by channel.
The source data selectable by channel are as follows:
Torque changes by time (ms)
Current changes by time (ms)
Speed changes by time (ms)
Angle changes by time (ms)
While the above speed represents the actual revolving speed of the tool, speed
command refers to target speed to control.
In other words, if speed and speed command are set and compared in two channels,
it is able to compare and analyze if the tool is operated according to the desired
speed.
