Maintenance Section
-141-
13. BAT - 10A : Horn
14. BAT – 10A : VCU Power
15. BAT – 25A : Fuel heater
16. BAT – 25A : Fuel heater
17. BAT – 15A : Option BAT power
18. BAT – 15A : Lamp
Relays are identified as follows:
1. FWD
2. C/SPEED
3. LP FUEL
4. LAMP
5. REV
6. NEUTRAL
7. FUEL PUMP
8. STARTER
9. MAIN
10. ETC

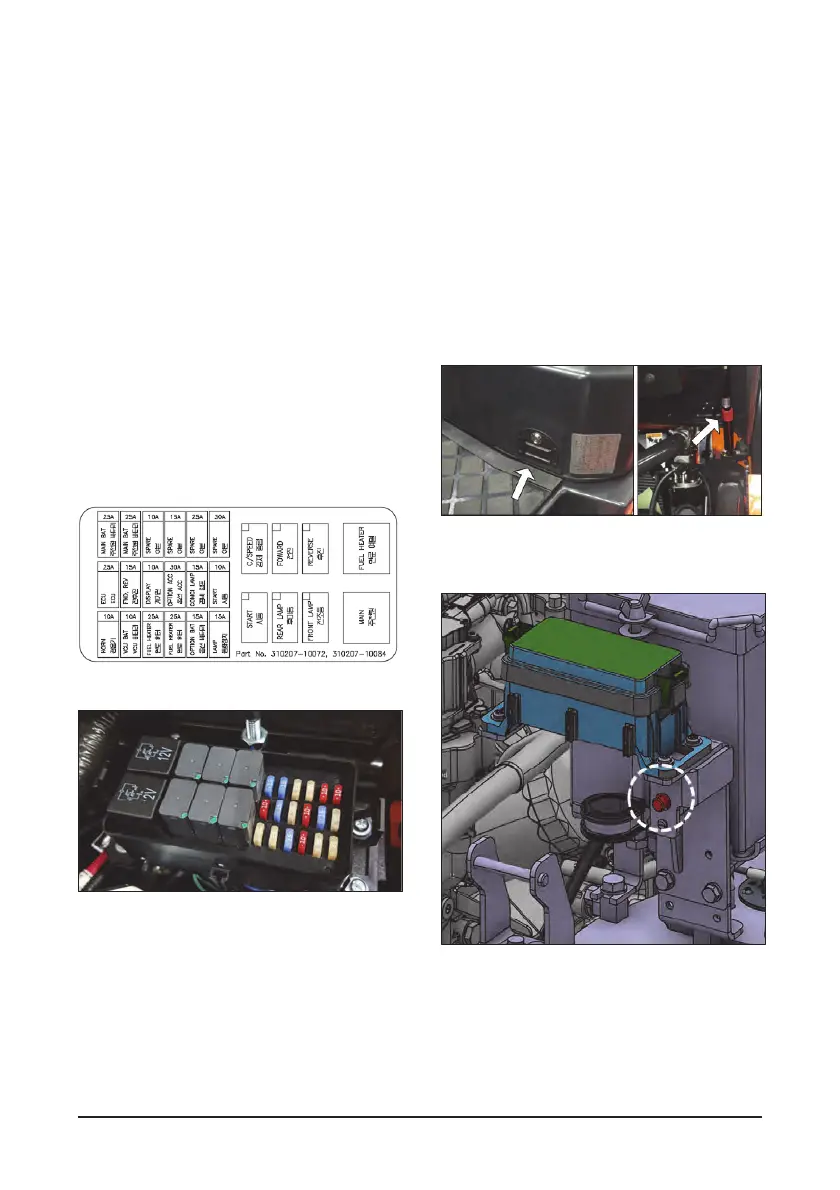

Check the fuses. Use a flashlight, if necessary.
Remove the cover from the fuse box located under
the air filter
Fuse - Protects an electrical circuit from an overload.
Opens (filament separates) if an overload occurs.
Relay – Electrically operated switch.
Bulbs
Bulbs are identified as follows:
1. Bulb-head lamp halogen (12V-35W)
*2. Bulb-back up (12V-10W)
*3. Bulb-turn signal (12V-23W)
*4. Bulb-stop & tail (12V-23/8W)
*Optional lamp or light
Circuit Breaker
Raise the hood and seat assembly. Make sure the
support cylinder securely holds the hood open.
The main circuit breaker is located on the rear of the
support for the hydraulic controls.
NOTE: To reset circuit breakers push in on the
button. The button should stay in if the
breaker is reset. If the button will not stay in,
or comes out shortly after reset, have the
circuits checked.
