Operation Section
-53-
Operator’s Station and Monitoring Systems
Instrument Panel
Your lift truck may not have the same indicator or warning lights as shown in the illustrations.
Due to the various options available, typical instrument panels are shown.
However, the symbols on the indicators and lights on your panel identify what those particular items are.
Also, the symbol for each of the items is identified and an explanation of their function and location is described on
the following pages.

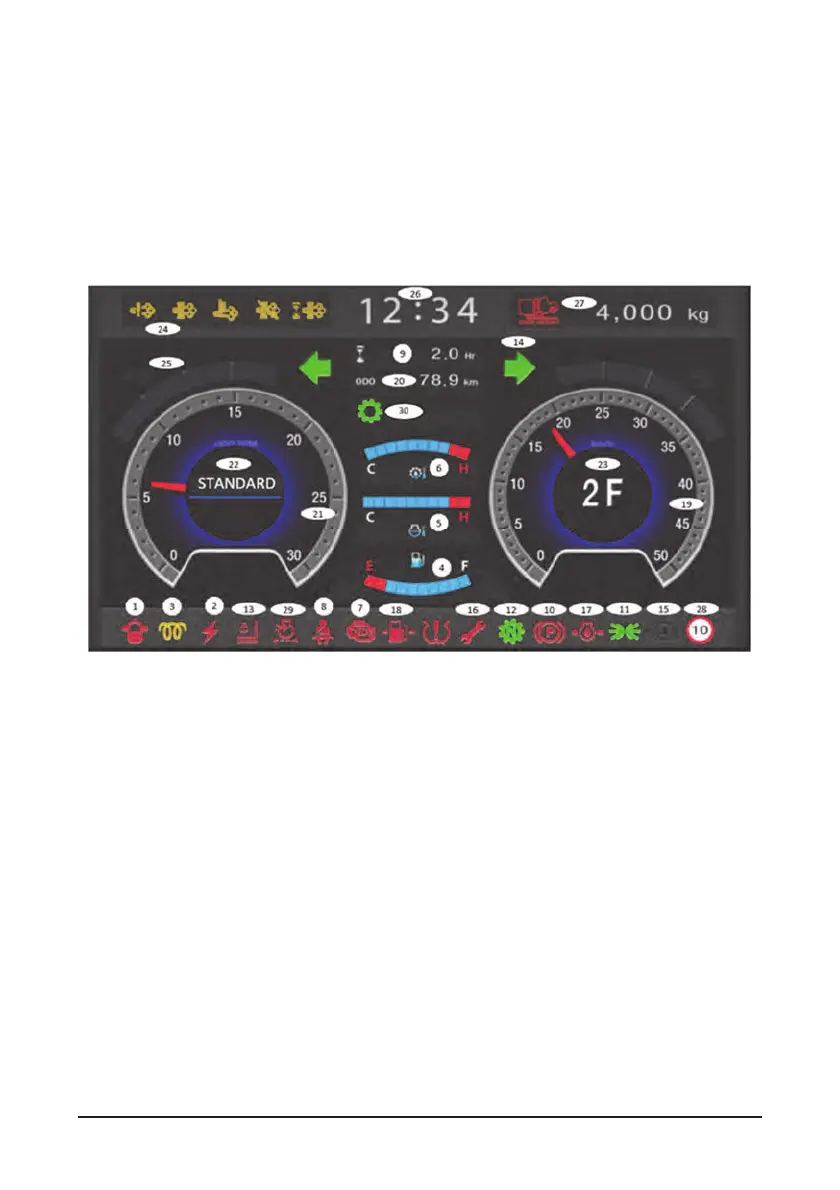

1. Diesel Engine Water in Fuel Filter Indicator Light
2. Alternator Indicator Light
3. Diesel Engine Start Preheat Indicator Light
4. Fuel Level Gauge
5. Engine Coolant Temperature Gauge
6. Transmission Oil Temperature Gauge
7. Engine Malfunction Indicator Light (MIL)
8. Seat Belt Warning Light (If Equipment)
9. Service Hour Meter
10. Parking Indicator Light
11. Front Floodlights
12. Transmission Neutral Position Light
13. Mast Interlock
14. Directional Turning Indicator Light
15. Brake oil level
16. ECT Warning Lamp
17. Engine Oil Pressure Warning Lamp
18. Fuel Warning Lamp
19. Speedometer
20. Odometer
21. Engine rpm Gauge
22. Vehicle Mode
23. T/M Gear Inform
24. After Treatment Indicator (After Treatment Only)
25. Regen Gauge (After Treatment Only)
26. Clock
27. Weight Scale Indicator (OPT)
28. Speed Limit Indicator
29. Air Cleaner Indicator
30. TM Option Indicator
To Next Page
