Doosan D35C-9 User Manual

Maintenance Section
-140-
Lightly oil the hood latch mechanism and the rod for
the hood support cylinder.

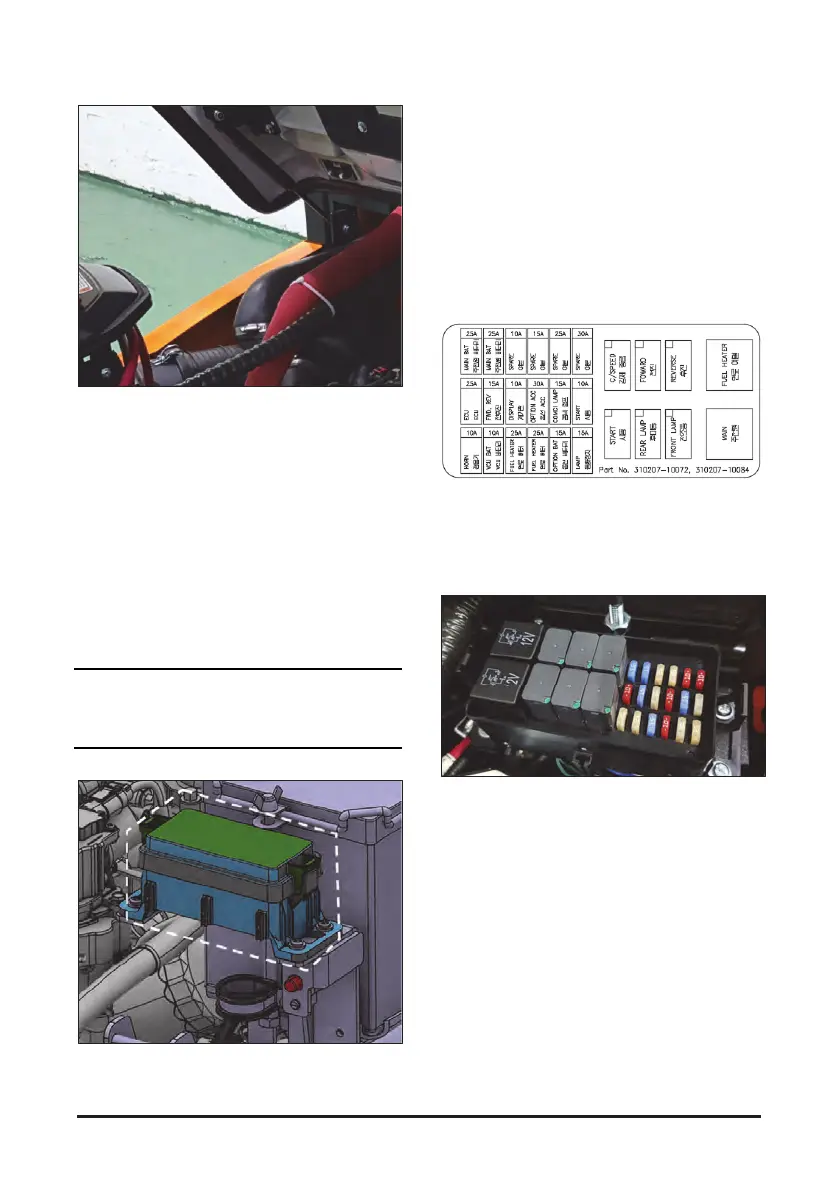

Fuses, Bulbs, Circuit Breaker &
Relay - Change, Reset
Fuses
NOTE: If a fuse filament separates, use only the
same type and size fuses for replacement.
NOTE: If the filament in a new fuse separates,
have the circuits and instruments checked.
NOTICE
Always replace fuses with ones of the correct
ampere rating.
Typical Example
Check the fuses. Use a flashlight, if necessary.
Fuses are identified as follows:
1. Horn - 10 amps.
2. Head/Rear Lamp - 15 amps.
3. Fwd./Rev. Solenoid, lamp Relay & Back-up
Lamp/alarm - 10 amps.
4. Instrument Panel & Fuel Shutoff - 15 amps.
5. Turn Signal Lamp, Stop/Strobe Lamp & C.S.D.
6. Start Relay - 5 amp.
Check the fuses. Use a flashlight, if necessary.
Remove the front cover from the fuse box located
under the cowl.
Fuse - Protects an electrical circuit from an overload.
Opens (filament separates) if an overload occurs.
Check the fuses. Use a flashlight, if necessary.
Fuses are identified as follows:
1. BAT - 25A : Main power (BAT)
2. BAT - 25A : Main power (BAT)
3. Spare - 10A
4. Spare - 15A
5. Spare - 25A
6. Spare - 30A
7. Main - 25A : ECU Main power
8. IGN - 15A : FWD, REV power
9. IGN - 10A : Display cluster
10. ACC - 30A : Option ACC power
11. ACC - 15A : Combi lamp
12. ST - 10A : Start power
