Maintenance Section
-161-

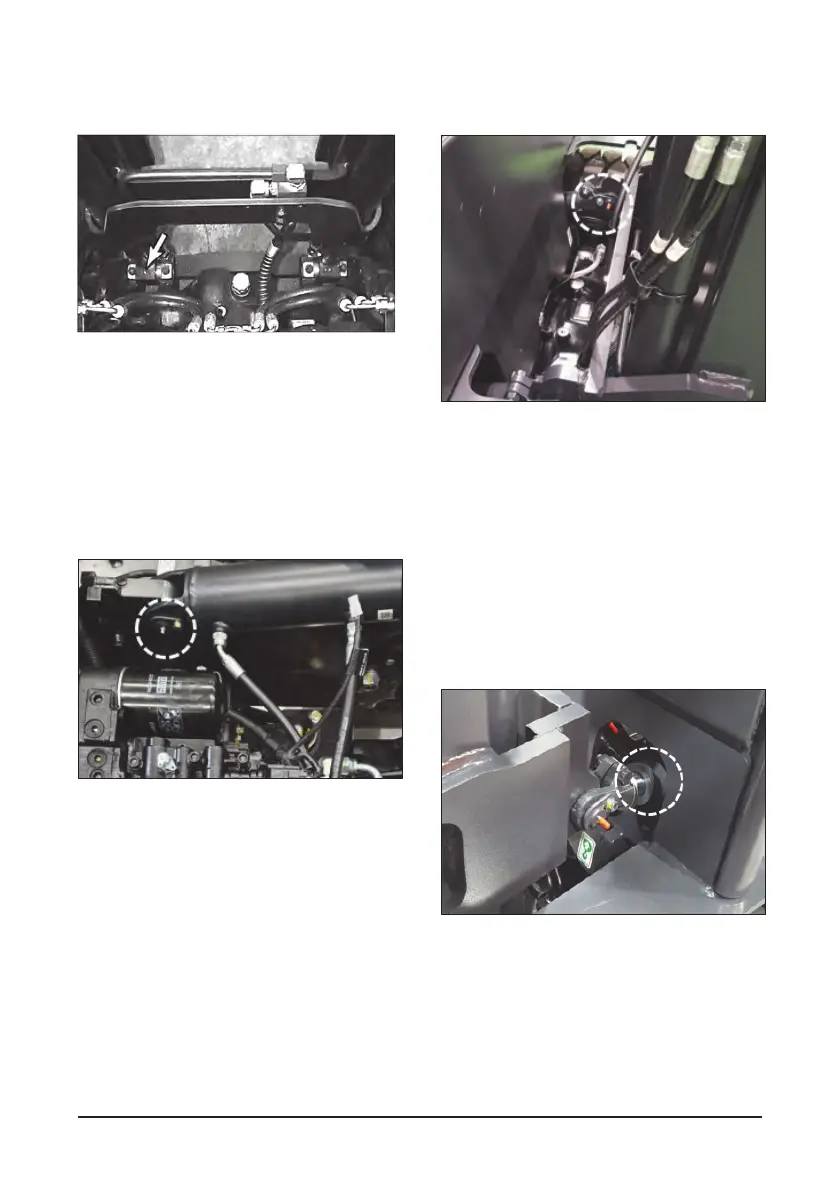

Mast Hinge Pin – Lubricate
Typical Example
Lower the forks and tilt the mast forward.
Lubricate the two fittings for the mast hinge pins, one
on each side of the mast.
Tilt Cylinders - Check, Adjust,
Lubricate
Chassis Pivot Eyebolts - Lubricate
Typical Example
Lubricate two fittings for the pivot eyebolts, one on
each tilt cylinder.
Check the pivot eye pins for loose retainer bolts and
wear.
Mast Pivot Eyes - Lubricate
Typical Example
Lubricate two fittings for the mast pivot eyes, one on
each side of the pin.
Check the pivot eye pins for loose retainer bolts and
wear.
Cylinder Rod Extension – Adjust
NOTE: The following description is for forward tilt.
For cylinder rod back tilt, the collar should
be stationary by the tilt eye. If it is not, the
O-ring inside the collar may need to be
replaced. To adjust back tilt, spacers must
be added or removed.
Typical Example
Check to make sure the tilt cylinders extend and
retract evenly.
If one cylinder continues to move after the other
cylinder has stopped in full forward or backward tilt,
an adjustment must be made to one cylinder.
