Parking Brake Adjusting
1. Park the lift truck on a level surface, lowered the
forks, shift the transmission to NEUTRAL and
shut OFF the engine and block the wheels
securely.
2. Chock the lift truck's tires to prevent unintentional
movement.
3.
Remove the floor mat and floor plate.
4. Make sure the parking brake is released. Refer to
the “How to release the electronic parking brake”
in the operation section

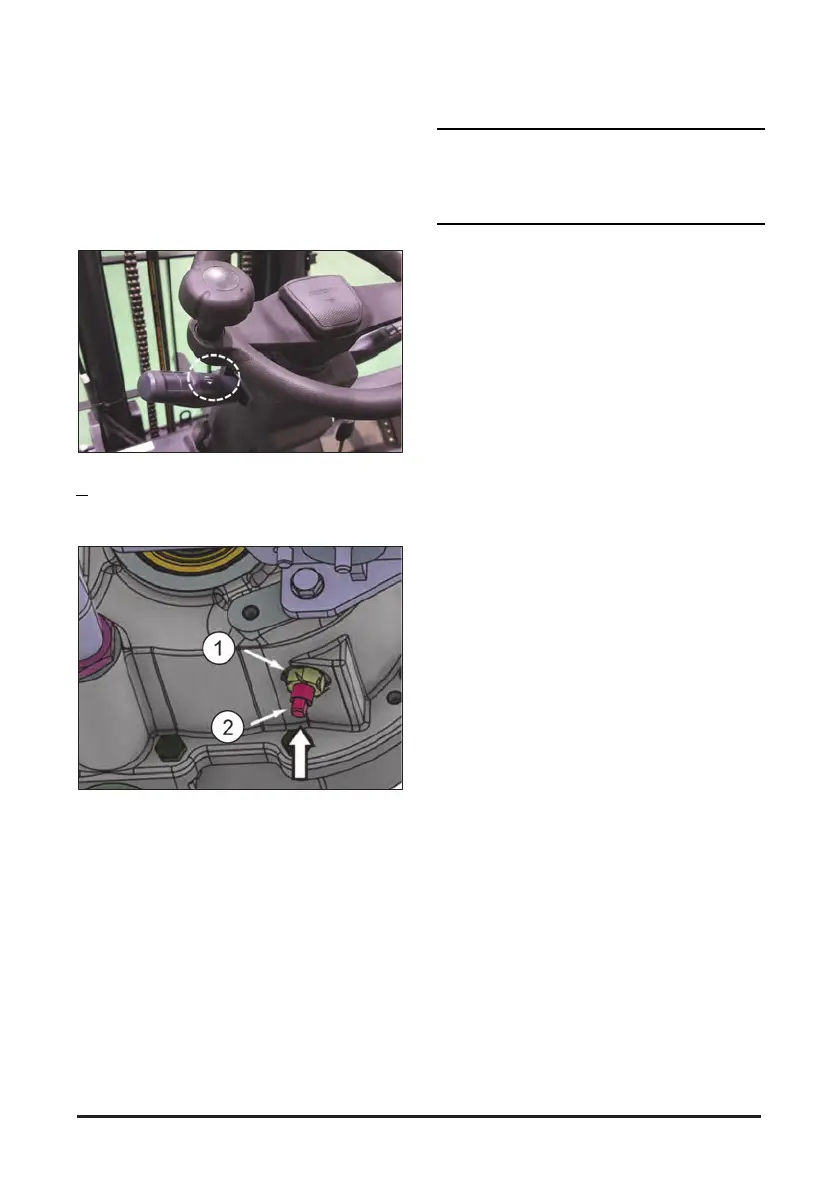

5.
Remove the lock nut (1)
6. Fully lock the Parking brake adjust bolt (2) by
rotating it clockwise and then, loosen it by rotating
for 1/2 turn counterclockwise.
7. Lock the Lock nut (1) with Parking brake adjust
bolt fully secured to prevent it from moving.
8. Return the parking brake. Refer to the “How to
return the electronic parking brake” in the
operation section.
9. Reinstall the floor plate and floor mat.
10. Engage the parking brake, remove the tire
chocks and test the parking brake. Refer to
‘Parking Brake Testing’ in the preceding section.
NOTICE
If the parking brake is adjusted several times and
there is no normal braking force, the transmission
needs to be disassembled to replace the parking
brake band.
