Adjustment of Armrest
Using the two adjustment device, adjust the
positions of the arm rests to a comfortable position.
knob #1 - forward, backward adjustment
knob #2 - upward, downward adjustment

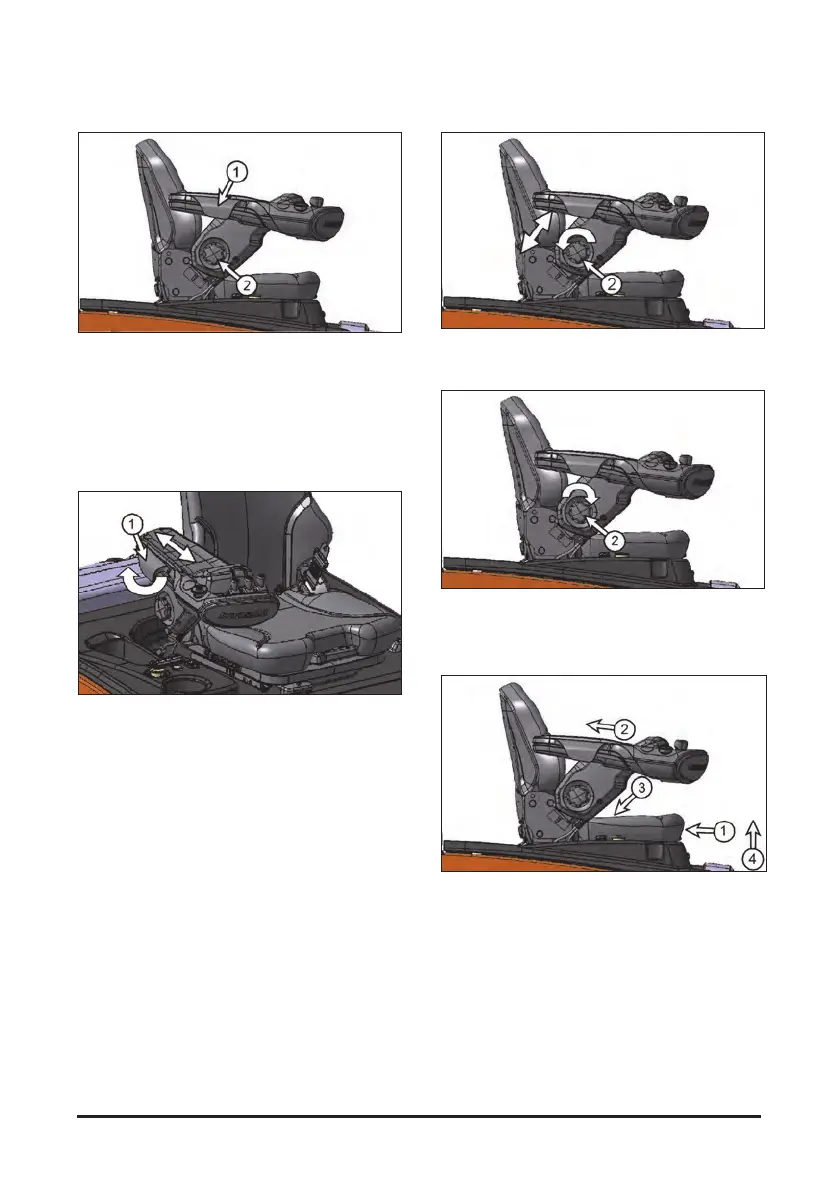

Forward and Backward Adjustment
1. Turn No. 1 lever upwards.
2. Adjust the position of the arm rest.
3. Release the No. 1 lever to fix the arm rest.
Up and Down Adjustment
Turn No. 2 knob leftwards (CCW) to adjust the arm
rest position up/down.
Turn No. 2 knob to the right (CW) to fix the arm rest.
Hood Opening
1. Slide the seat to the backward-most position.
2. Slide the armrest to the backward-most position.
3. Slide the armrest to the downward-most position.
4. Open the hood.
