Dormakaba E7900 Series - Installation of Mechanical Override Models

(L)
Override
Shaft
Parts and Tools List
NOTE: For the purposes of Section 7 use the naming convention listed below in Parts and Tools List and Diagram of lock.
Tools Required:
Cylinder (J, provided with lock) or equivalent ( T ) Small flat screwdriver (less that 1/8")
(A) Lock housing
(B) Inside drive hub
(C) Nylon washer
(D) Spring washer
(not for lever feel)
(E) Drive tube
(F) Lever catch
(G) Countersink
(H) Lever handle
(I) Cap
(J) Cylinder
(K) Cylinder plug
(K1) Set Screw
(M) Allen Key
(O1) Adapter
(O2) Adapter & Screw
(L) Override shaft

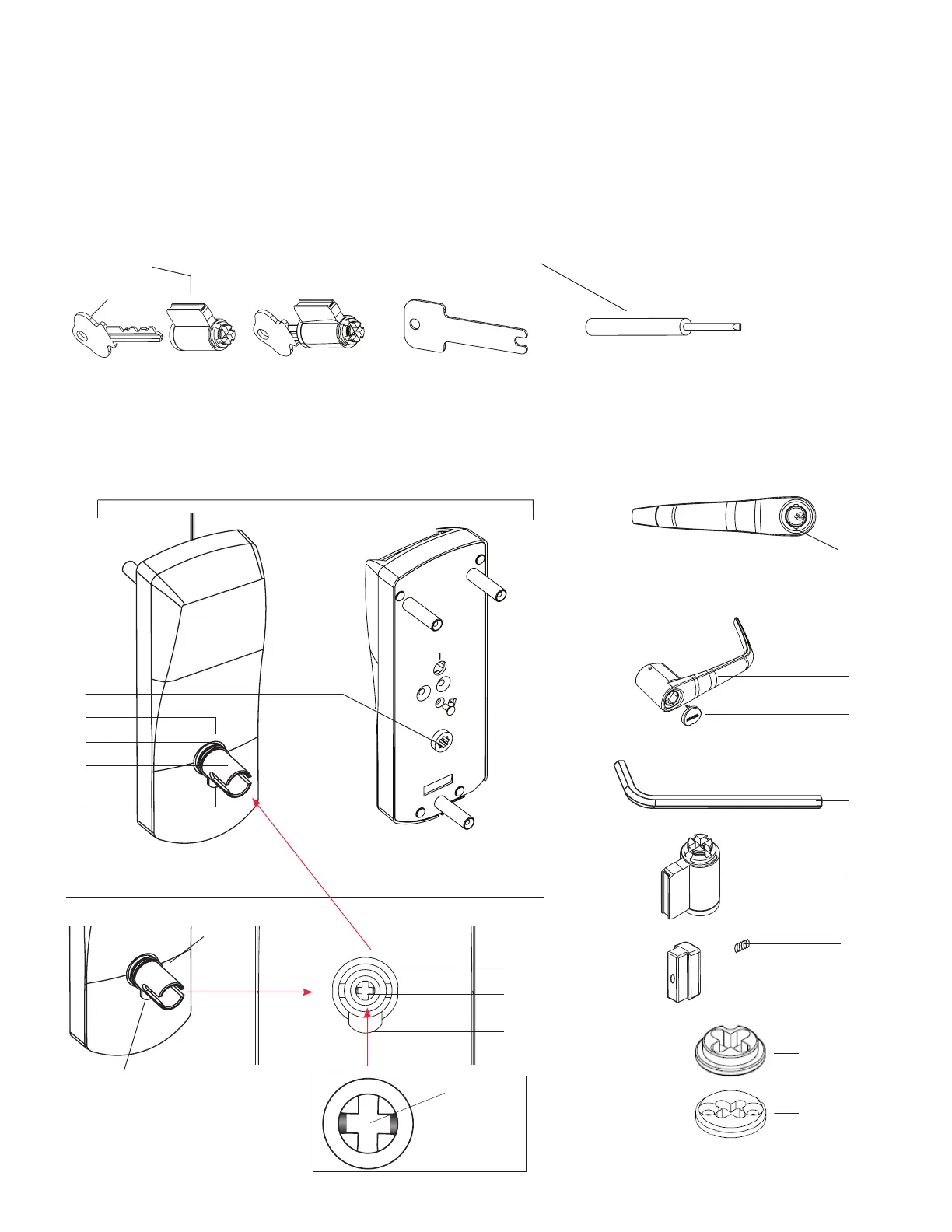

Diagram of lock:
Facing view of drive tube: (E)
BackFront
(A)
(H)
(I)
(E)
(B)
(D)
(F)
(M)
(J)
(O1)
(O2)
(K1)
(E)
(L)
(F)
(G)
(C)
(F)
(E)
(N)
7 Installation of Mechanical Override Models
