Body Controller Software
Copyright 2018, Heil Environmental
Printed in the U.S.A.
Body Controller Software
154
Disabled Functions: Forks will not Lowered.
Fault Reset: Open the top door fully. Check Cab protector down prox., Lift below Transit prox., Forks
position and Arms position for proper operation.
Travel Position Not Allowed Interlock Active (standard equipment)
If Auto lift enable switch is turned ON from either street side or from the curb side of the dual control panel and Travel
position switch is activated while the Packer Extend/Retract push button has been pressed or Packer extend/retract
Auxiliary controls are activated, then the diagnostic message will be displayed in the Insight display.

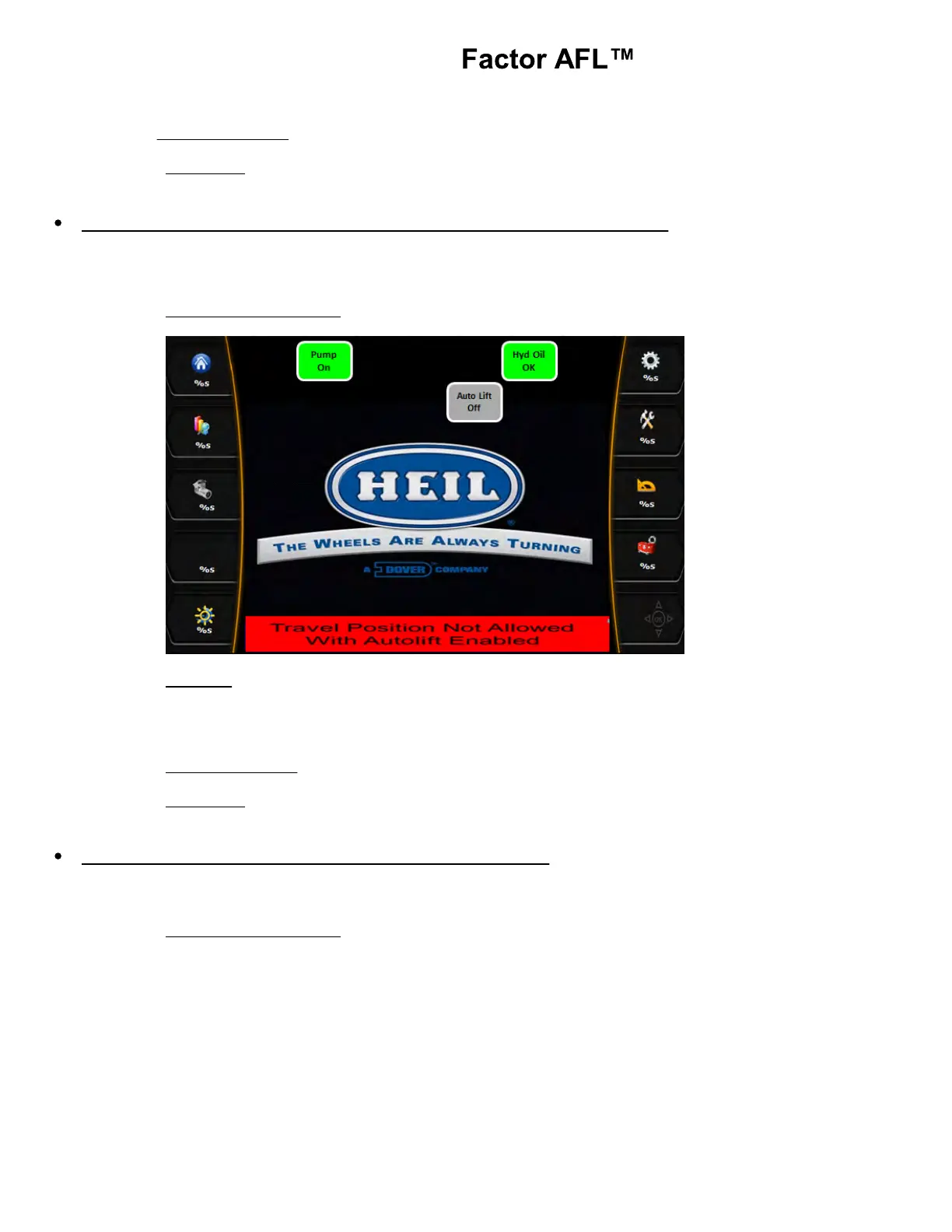

Insight Display Illustration:
Indication: A. Packer Retract push button pressed.
B. Packer Extend push button pressed.
C. Travel Position switch ON
D. Auto Lift Enable Switch ON
Disabled Functions: NONE.
Fault Reset: Turn OFF Auto Lift Enable Switch and Travel Position switch. Turn OFF the Packer extend/
retract Auxiliary controls to manually move the packer.
Tailgate Closed While Ejecting (standard equipment)
If Packer has reached the fully extended proximity switch while the tailgate is closed for at least 2 Seconds, then the
diagnostic message will be displayed in the Insight display.
Insight Display Illustration:
