Indication: A. Top Door Open light ON.
B. Residential Configuration bit is ON.
C. Top Door Configuration bit is ON.
Disabled Functions: Forks will not lowered.
Fault Reset: Open the top door fully. Check top door, Lift below Transit prox., Forks position and Arms
position for proper operation.
Cab Protector Raised and Arms Lowered Interlock (standard equipment)
The arms have been lowered when the Arm position angle is greater than the Fork roll position value (700) and the
Packer/ Cab protector switch has been enabled and the Fork position is greater than Feather Up range (610) and Cab
Protector Down configuration bit is ON and Residential configuration bit is ON, then the diagnostic message will be
displayed in the Insight display.

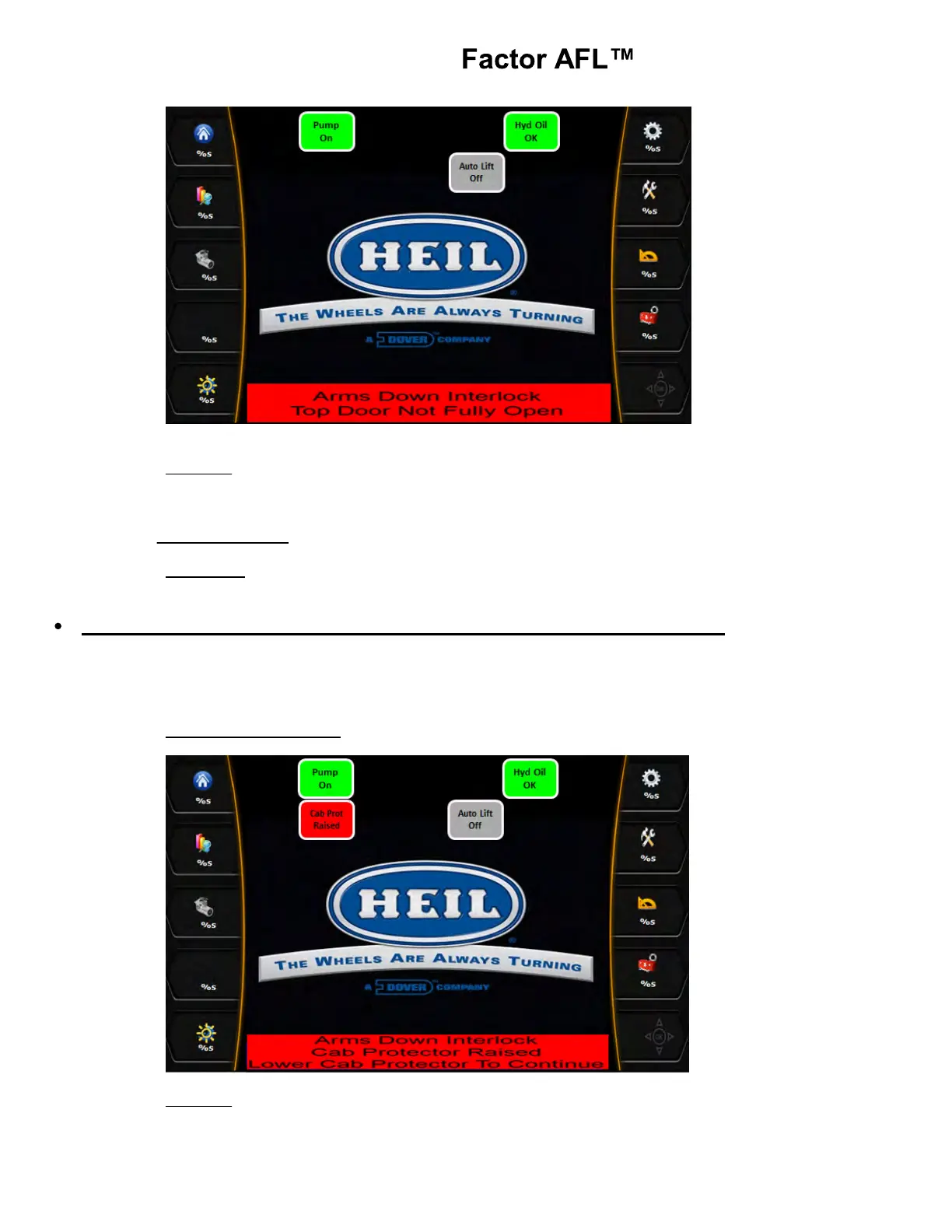

Insight Display Illustration:
Indication: A. Top Door Open light ON.
B. Residential Configuration bit is ON.
C. Cab Protector Up Configuration bit is ON.
