Body Controller Software
173
Indication: A. No Ignition Voltage on Extended side controller.
Disabled Functions: CORTEX32 Extended Controller.
Fault Reset: When the Voltage (greater than 8 VDC) is available at these VBB terminals (VBB2_E and
VBB_RELAYIS_VOLTAGE), CORTEX32 extended controller will turn ON and start functioning normally. If
the extended controller doesn’t start, there is a possible problem with the CORTEX32 Extended controller or
55-Pin connector connection or the harnessing.
Under OperatingTemperature Warning (Optional equipment)
If the Hydraulic Oil temperature is less than 70º F, then the diagnostic message will be displayed in the Insight
display.

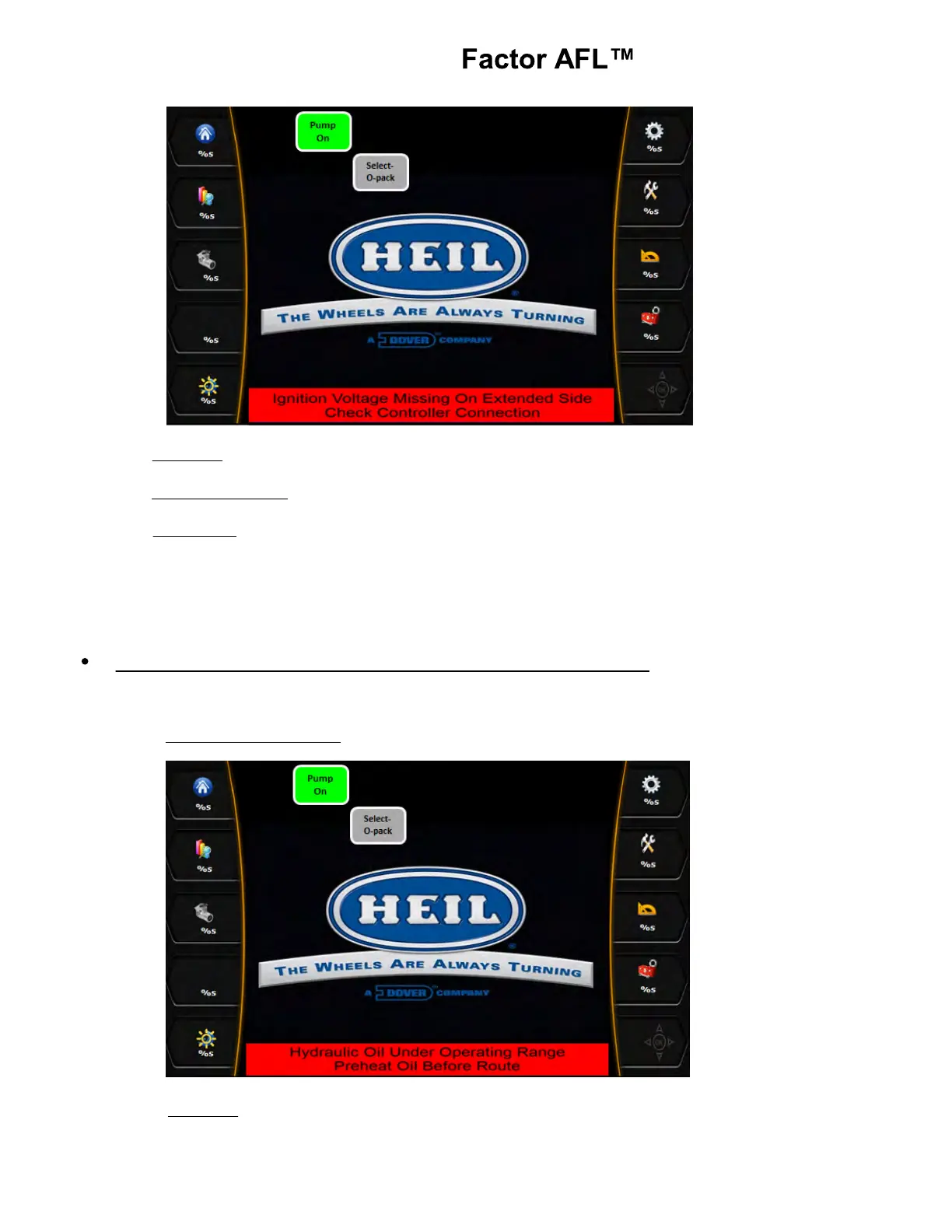

Insight Display Illustration:
Indication: Hydraulic Oil temperature under Operating range
