Body Controller Software
172
Disabled Functions: None
Fault Reset: When the Temperature returns to defined limit (i.e. within -100 to 4000), the switch will reset.
If the switch does not reset, there is a possible problem with the Temperature switch or the harnessing.
No Voltage on Extended Controller side Fault (Standard equipment)
If the Voltage measured across VBB1_E, VBB2_E, VBB3_E, and VBB_RELAYIS_VOLTAGE terminal (i.e.
Connector-2 Pin-19, Pin-1, Pin-32, and Pin-51) is less than 8 Volts, then this is recognized as a fault.

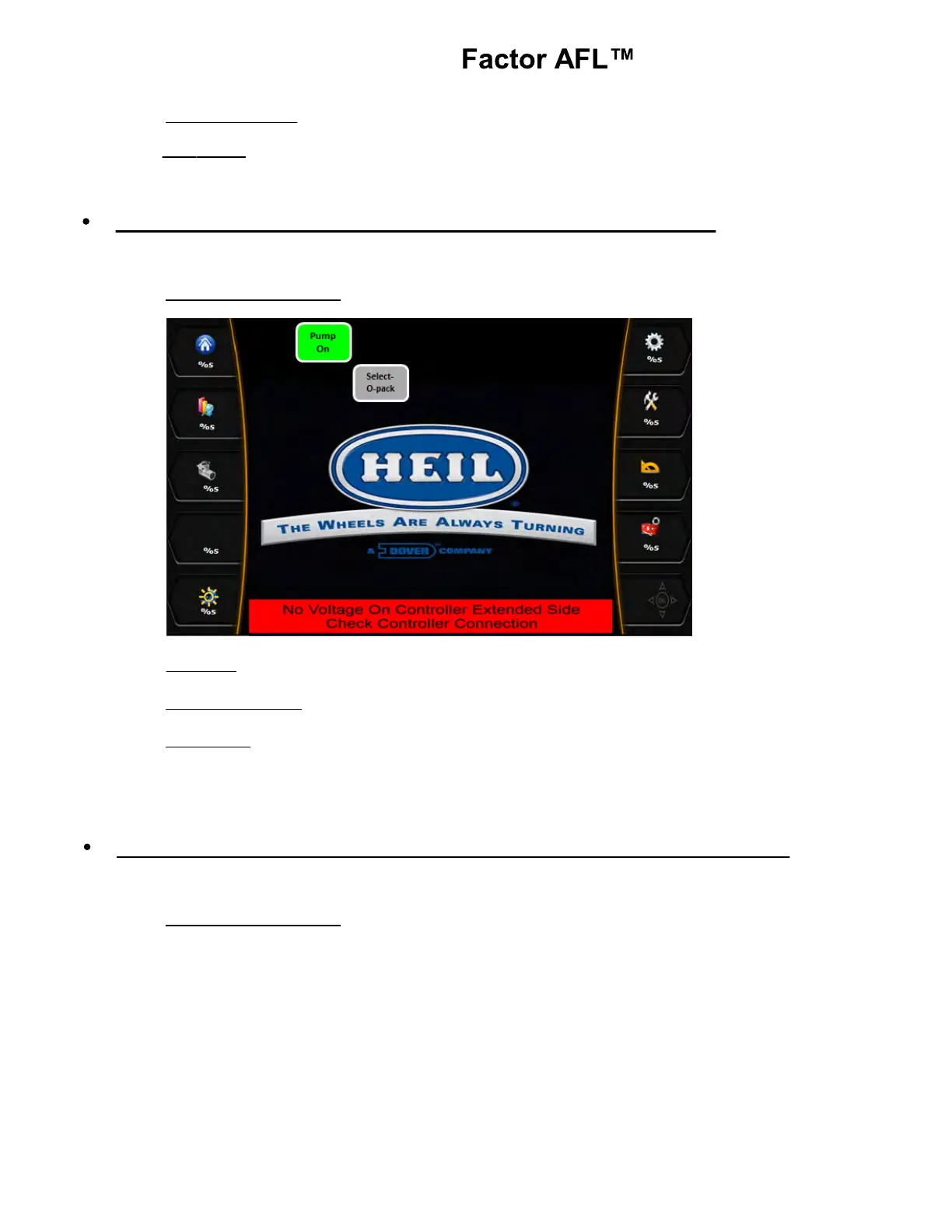

Insight Display Illustration:
Indication: A. No Voltage on Extended side controller.
Disabled Functions: CORTEX32 Extended Controller.
Fault Reset: When the Voltage (greater than 8 VDC) is available at these VBB terminals (VBB1_E and
VBB2_E and VBB3_E and VBB_RELAYIS_VOLTAGE), CORTEX32 extended controller will turn ON and
start functioning normally. If the extended controller doesn’t start, there is a possible problem with the
CORTEX32 Extended controller or 55-Pin connector connection or the harnessing.
No Ignition Voltage on Extended Controller side Fault (Standard equipment)
If the Voltage measured across VBB2_E and VBB_RELAYIS_VOLTAGE terminal (i.e. Connector-2 Pin-19 and
Pin-51) is less than 8 Volts, then this is recognized as a fault.
Insight Display Illustration:
