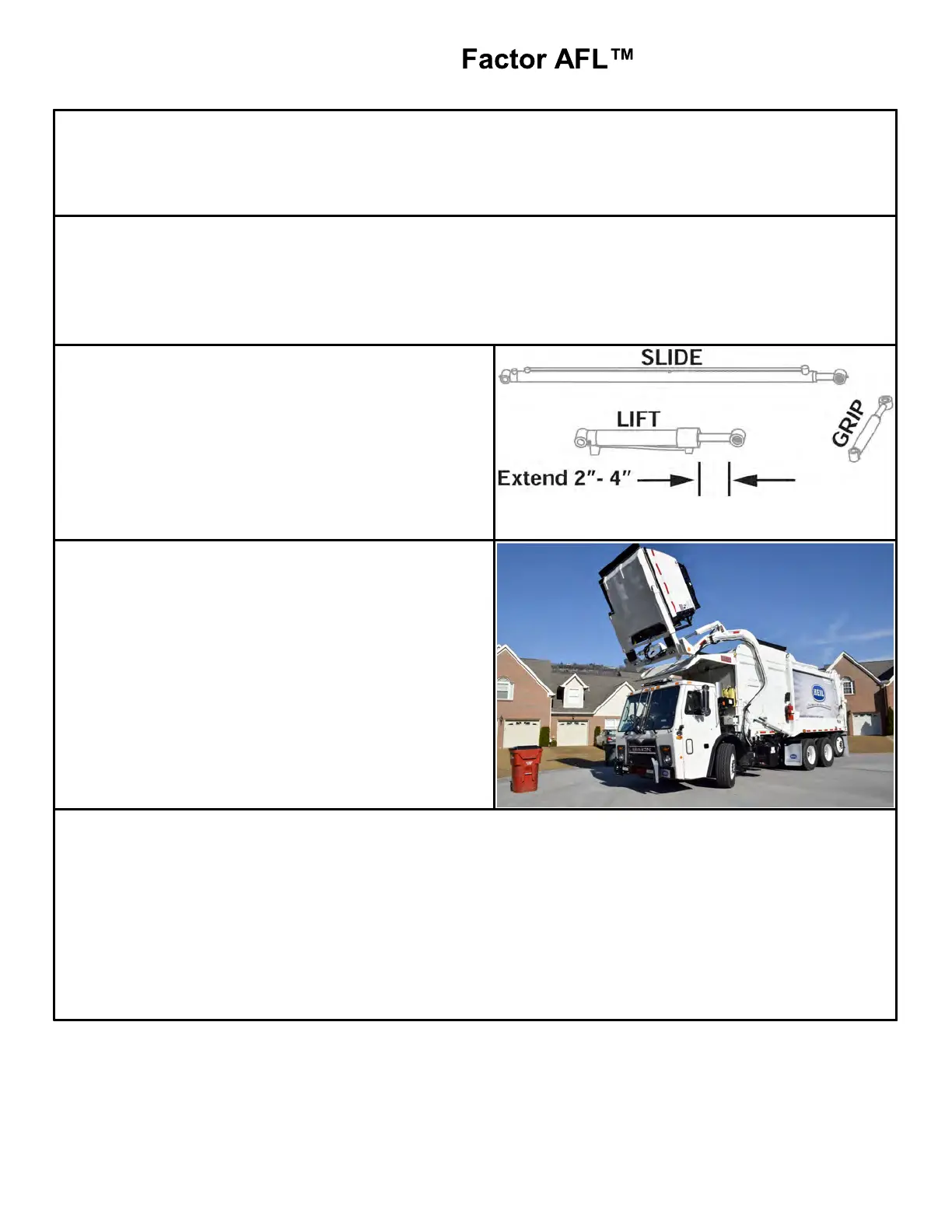

CUROTTO-CAN TOP WEEKLY CHECKS
Always complete an Operational Lock-Out/Tag-Out before starting inspection. If any check does not complete
successfully the Curotto-Can must be repaired before use otherwise the Warranty is void and equipment damage or
operator injury could result.
GRIPPER BELT TENSION CHECK
1. Check buck - it must be tight, touching the inside of the gripper and not have any play or movement.
2. Check that the belt has enough tension so that it does not touch the arm. If the belt touches the arm, carts might be
damaged.
3. Check that the band retainers are present and not damaged.
AUTO-RETRACT FUNCTION CHECK
1. Extend all cylinders 2” - 4”.
2. Engage ARMS UP function - all cylinders should auto
retract.
3. Extend all cylinders again 2” - 4”.
4. Engage FORKS EXTEND function - all cylinders should
auto retract.
5. If Auto-retract does not work - repair before using.
PACKER BLADE LOCKOUT CHECK
1. Fully retract all cylinders to their home position.
2. Raise the Curotto-Can slightly above the canopy. Note:
DO NOT put the Curotto-Can in the hopper.
3. Engage AUTOPACK - packer blade should NOT move.
4. Do not run unit if packer blade moves - unit must be
repaired before using.
CYLINDER CUSHION CHECK
1. Extend the slide cylinder halfway then fully retract.
2. Check for cushion on the retract function, there should be approximately 1” of cushion.
3. Close the grippers then fully extend and retract the dump cylinder.
4. Check for cushion at the top of the stroke of the dump cylinder.
5. There should be a smooth cushion of approximately 1” on the dump function.
6. The piston should not slam into the barrel in the slide retract or dump cycle.
7. No cushion ? – unit must be repaired prior to use.
