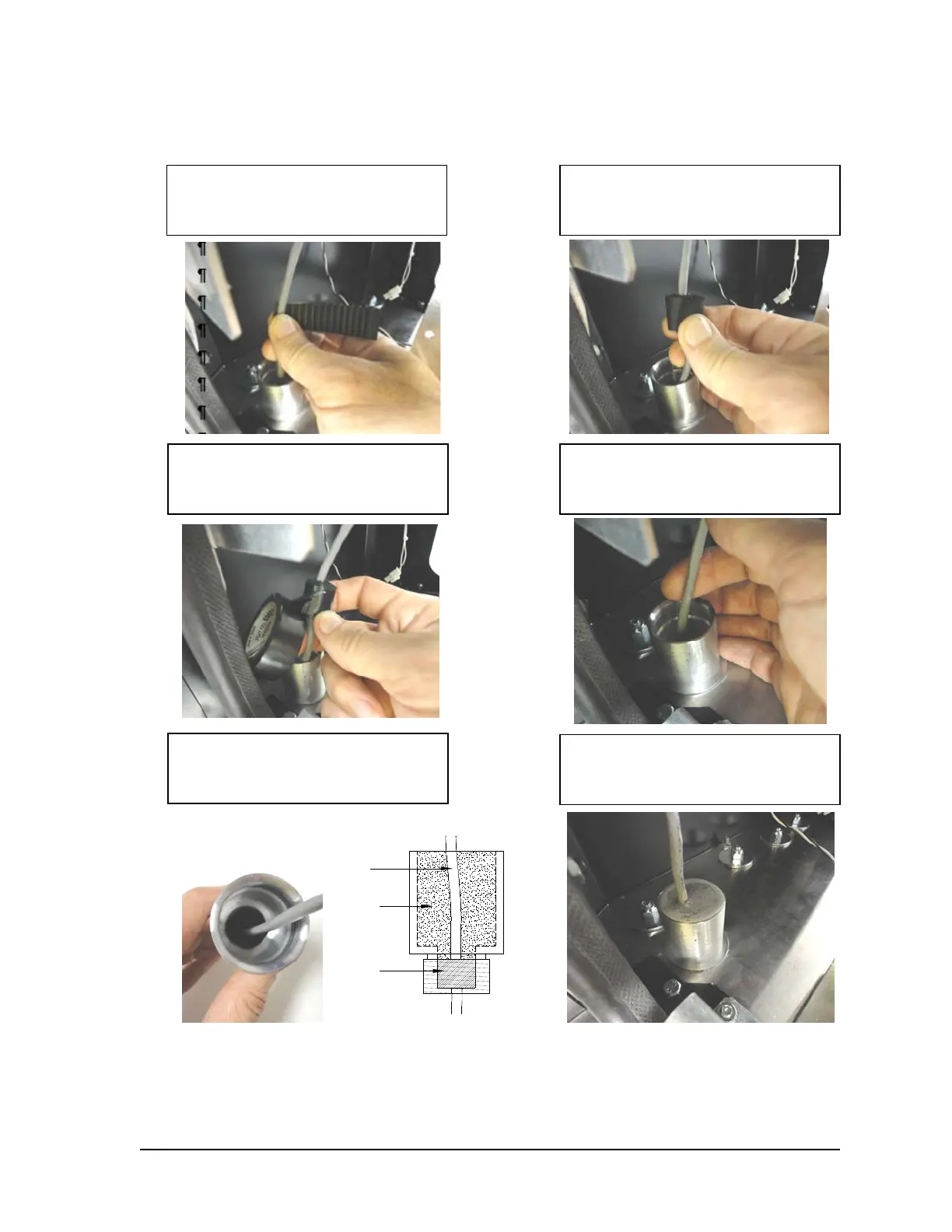

B – Continue to wrap cable until
diameter is about the size of the
inside of the conduit (3/4”).
E – View of Ethernet cable and
conduit before potting. (Picture
shows fitting outside of dispenser.)
C – Wrap Sealing Gasket with tape
to hold it in place.
D – Push cable and seal down into
conduit fitting so that top of gasket is
1-1/4” deep into the conduit.
F – Mix and pour potting mix into
conduit top to the top edge. Let
undisturbed for 12 hours. See Note.
A - Place Ethernet cable in Sealing
Gasket and begin to wrap cable.
Potting
Material
Cable
Sealing
Gasket
Sealing After the conduit is installed and the Ethernet cable is pulled, the conduit fitting
must be properly sealed.
Note: Prepare the potting compound by pouring 4 oz. Rockite into an eight oz. paper cup.
Add 1-1/2 oz. of water. Stir one to two minutes until reaching consistency similar to pancake
batter. Pour mix into fitting and fill to within 1/8” of top of fitting. Cable should exit near the
center of the fitting.
To Next Page
