Dover Wayne Select S1 User Manual

W2940305 Rev 07 8/2019 Dover Fueling Solutions 113

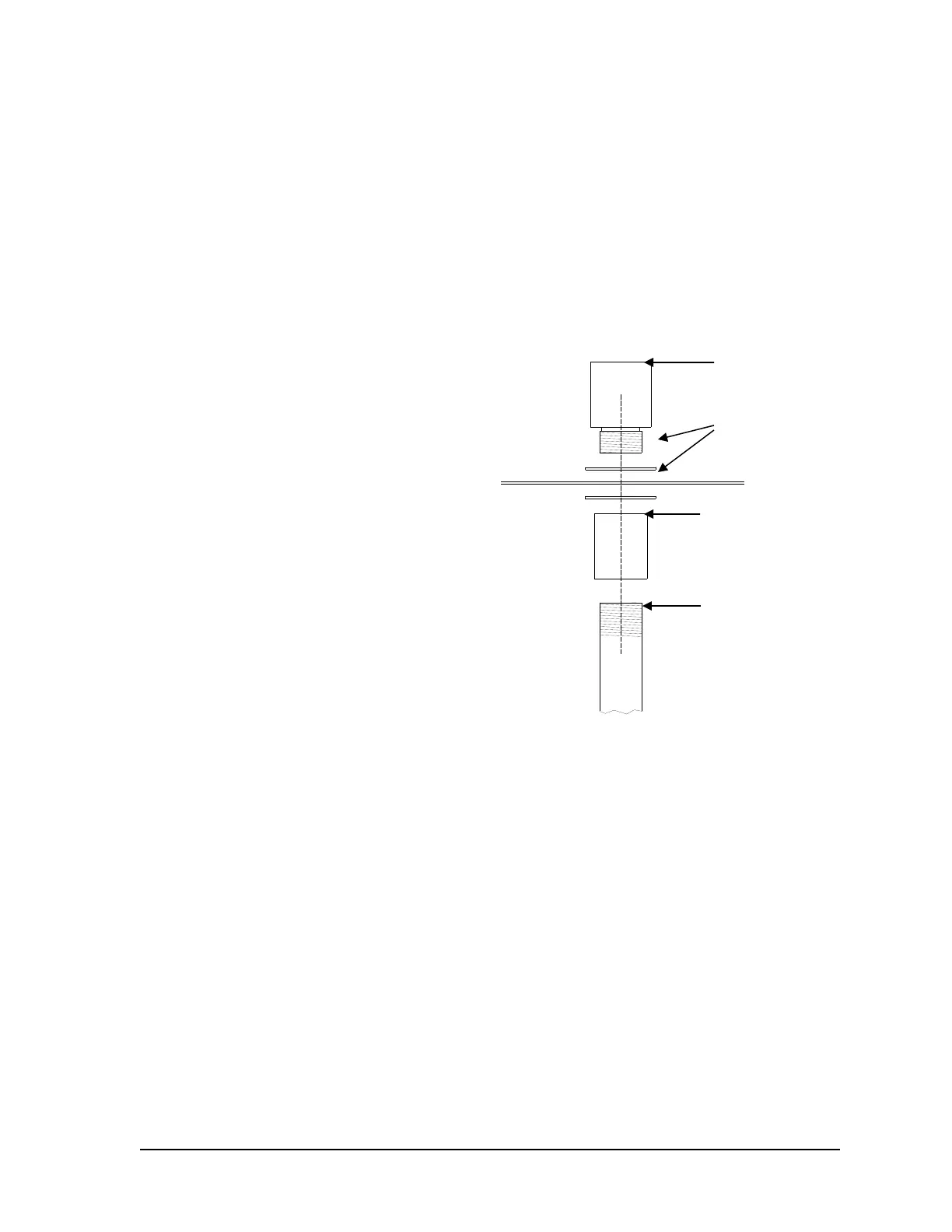

Potting Fitting
Washers
Vapor Barrier
¾” NPT Female
Coupling
¾” Rigid Metal
Conduit (field
supplied to
within 5/8” below
va
p
or barrier
)
Conduit For all iX Fleet installations, the Ethernet cable must be installed in its own
conduit to all iX Fleet dispensers (and between dispensers if relevant).
The
run of Ethernet cable must be uninterrupted from the building to the
switch in the dispenser electronic head.
The conduit is to be routed directly
from the contractor installed seal-off at the bottom of the dispenser to the fitting
provided at the vapor barrier below the iX Fleet electronics area. A hole
already exists for a ¾” conduit in the vapor barrier for this fitting connection.
This opening is sealed from the factory using flat washers, a bolt, and a nut.
When installing the cable, allow the Ethernet cable to extend at least 30” above
the vapor barrier.
When running the field conduit up into the
dispenser, follow these steps using the
DFS Ethernet fitting kit:
1. Screw ¾” NPT female coupling onto
field conduit. At least 5 threads of
the conduit must be in the coupling.
2. Position conduit and female
coupling under existing hole in
vapor barrier (See location for iX
conduit on previous page.)
3. Position 2 washers provided as
shown.
4. Screw potting fitting into female
coupling from above the vapor
barrier. Make sure a washer is
used on both sides of the vapor
barrier. Tighten until both washers
are pulled snug against the vapor
barrier.
