Draytek Vigor2120n-plus User Manual

Vigor2120 Series User’s Guide
304

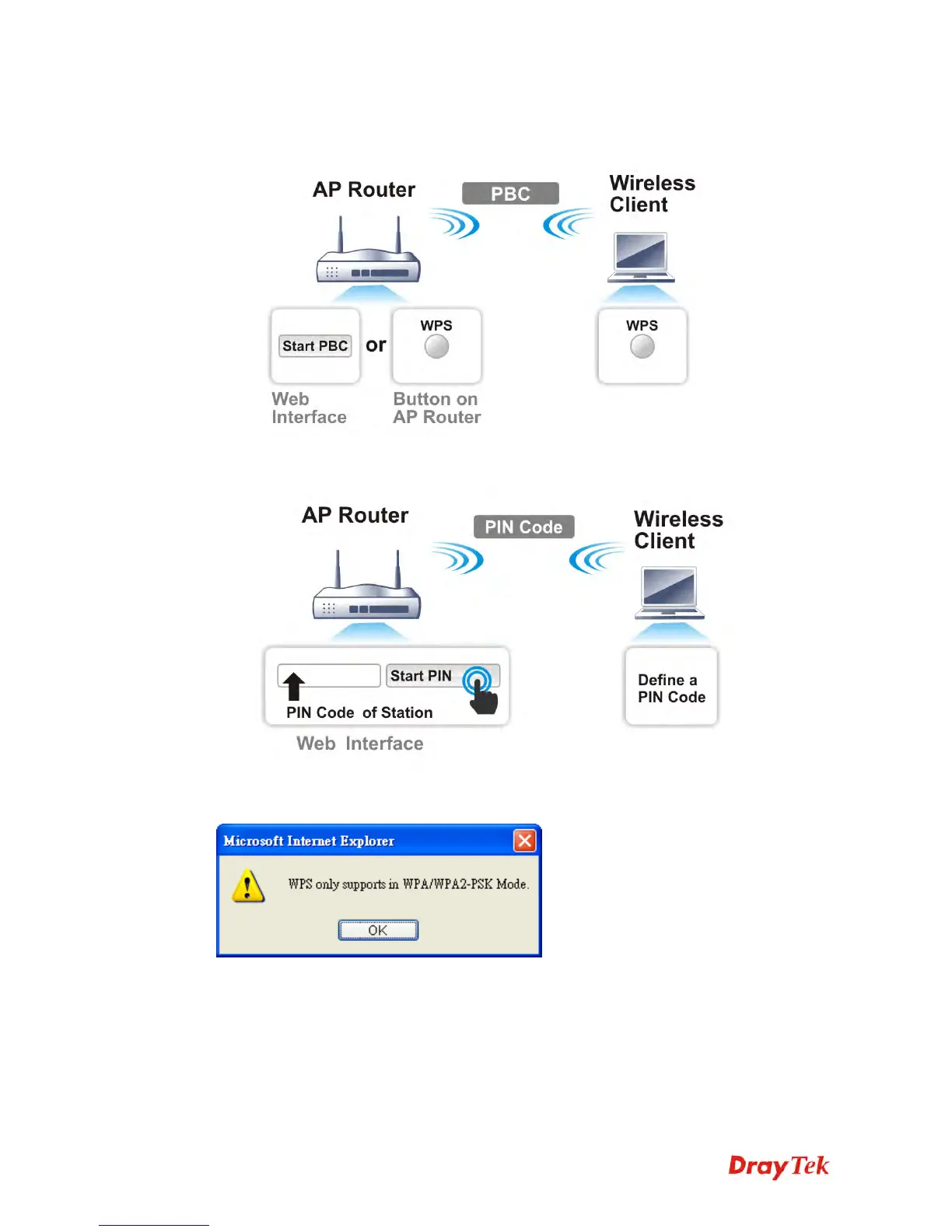

 On the side of Vigor2120 series which served as an AP, press WPS button once on the
front panel of the router or click Start PBC on web configuration interface. On the side
of a station with network card installed, press Start PBC button of network card.
 If you want to use PIN code, you have to know the PIN code specified in wireless client.
Then provide the PIN code of the wireless client you wish to connect to the vigor router.
For WPS is supported in WPA-PSK or WPA2-PSK mode, if you do not choose such mode in
Wireless LAN>>Security, you will see the following message box.
Please click OK and go back Wireless LAN>>Security to choose WPA-PSK or WPA2-PSK
mode and access WPS again.

Draytek Vigor2120n-plus Specifications

General

Wireless Standard	802.11n
Wireless Speed	300 Mbps
Firewall	Yes
WAN Connection Type	Ethernet
Frequency Band	2.4 GHz
DHCP server	Yes
QoS	Yes
Device Type	Wireless Router
LAN Ports	4
USB Ports	1
