Vigor2120 Series User’s Guide

 Static IPv6

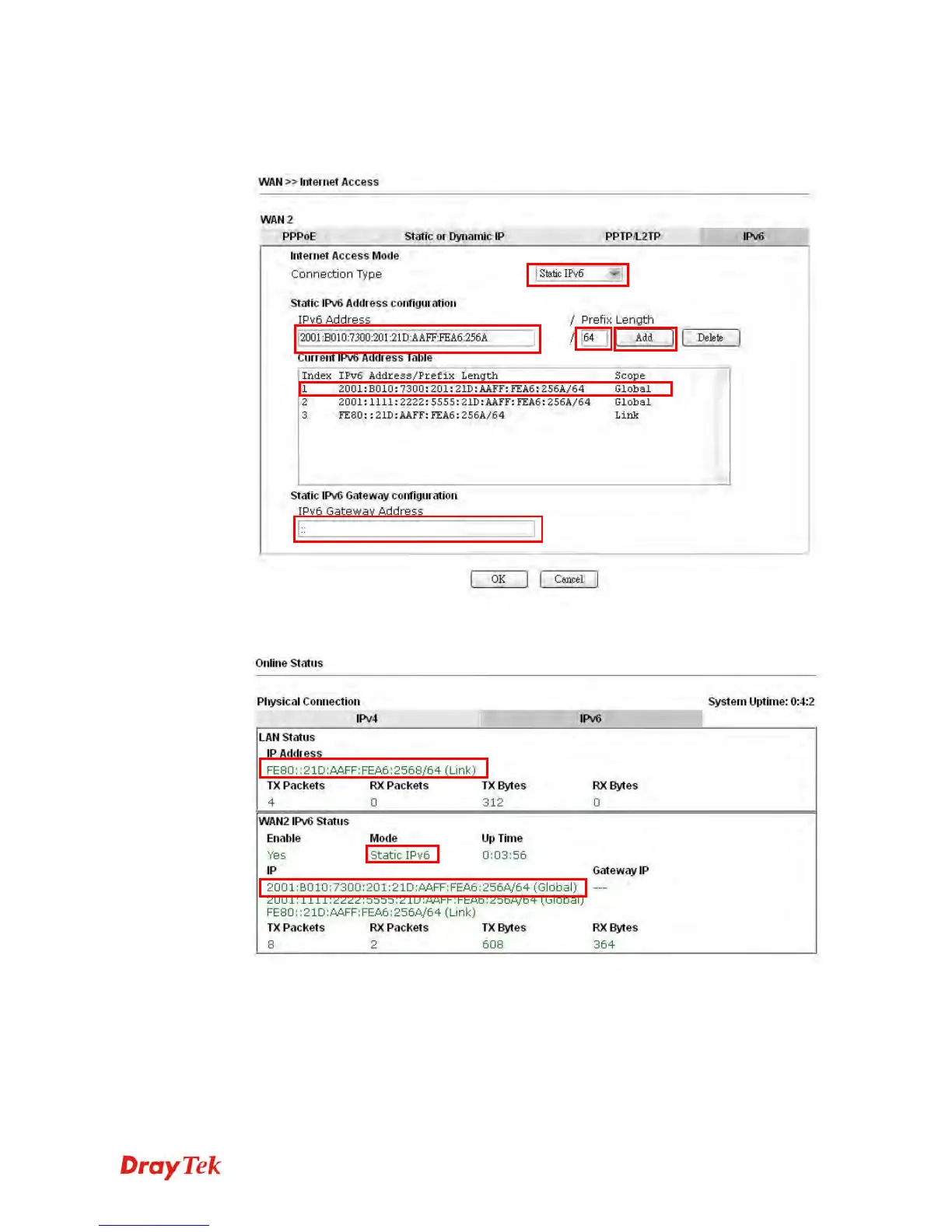

Choose Static IPv6. Type IPv6 address, Prefix Length and Gateway Address.

Click OK and open Online Status. If the connection is successful, the physical

connection will be shows as follows:
