VigorAP 800 User’s Guide
49
Enable Wireless LAN
Check the box to enable wireless function.

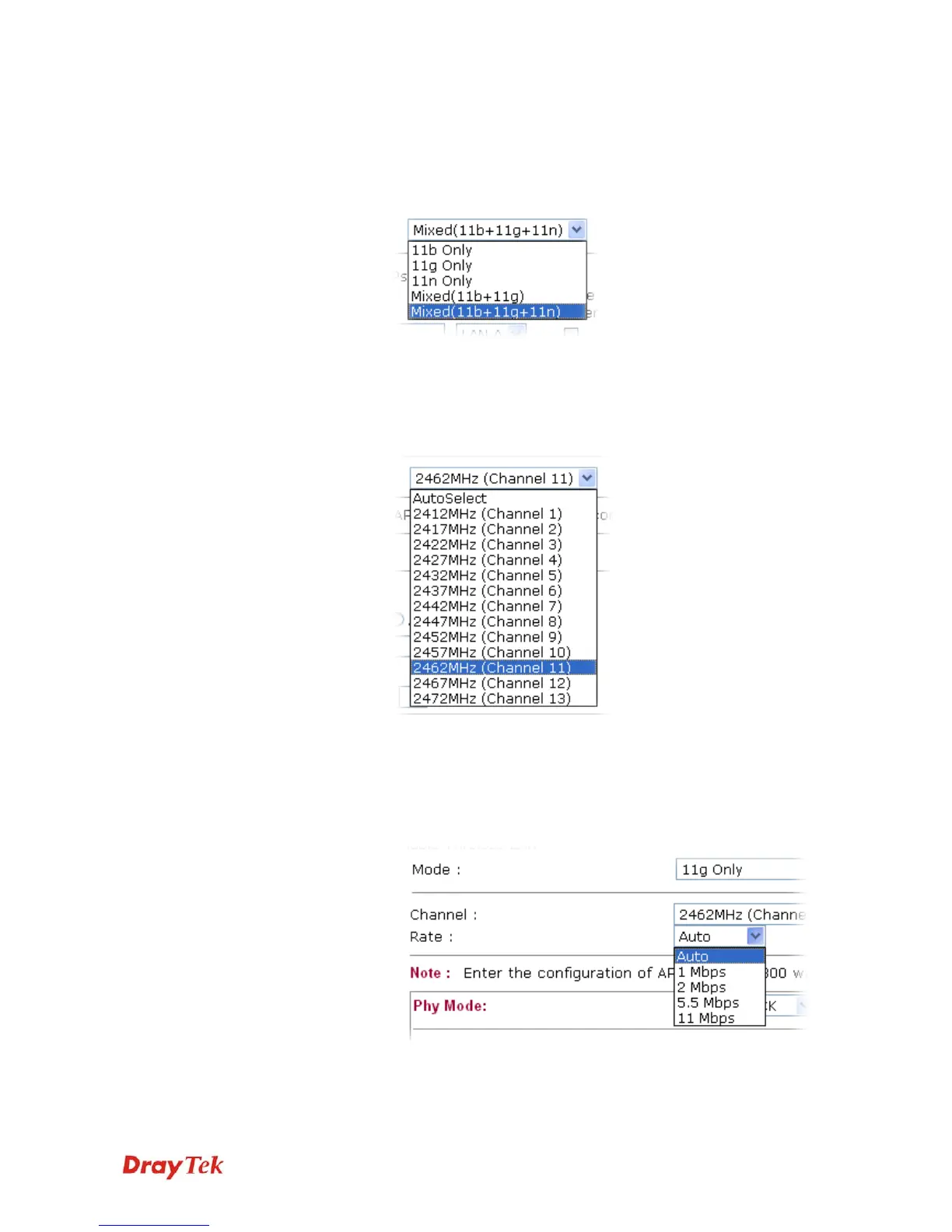

Mode
At present, VigorAP 800 can connect to 11b only, 11g only, 11n
only, Mixed (11b+11g) and Mixed (11b+11g+11n) stations
simultaneously. Simply choose Mixed (11b+11g+11n) mode.
Channel
Means the channel of frequency of the wireless LAN. The
default channel is 11. You may switch channel if the selected
channel is under serious interference. If you have no idea of
choosing the frequency, please select AutoSelect to let system
determine for you.
Extension Channel
With 802.11n, there is one option to double the bandwidth per
channel. The available extension channel options will be varied
according to the Channel selected above.
Rate
If you choose 11g Only, 11b Only or 11n Only, such feature will
be available for you to set data transmission rate.
Phy Mode
Select CCK (11b mode), OFDM (11g mode), or HTMIX
(11b/g/n mixed mode) from the drop down menu for the access
point that VigorAP 800 wants to connect. Each access point

Draytek VigorAP 800 Specifications

General

Wireless Standards	IEEE 802.11a/b/g/n/ac
Frequency Bands	2.4 GHz, 5 GHz
Power over Ethernet	802.3af
Antenna Type	Internal
Operating Modes	Access Point, WDS, Repeater
Security	WEP, WPA, WPA2, 802.1X
Management	Web-based, SNMP
Mounting	Wall, Ceiling
Operating Temperature	0°C to 40°C
