VigorAP 800 User’s Guide
56

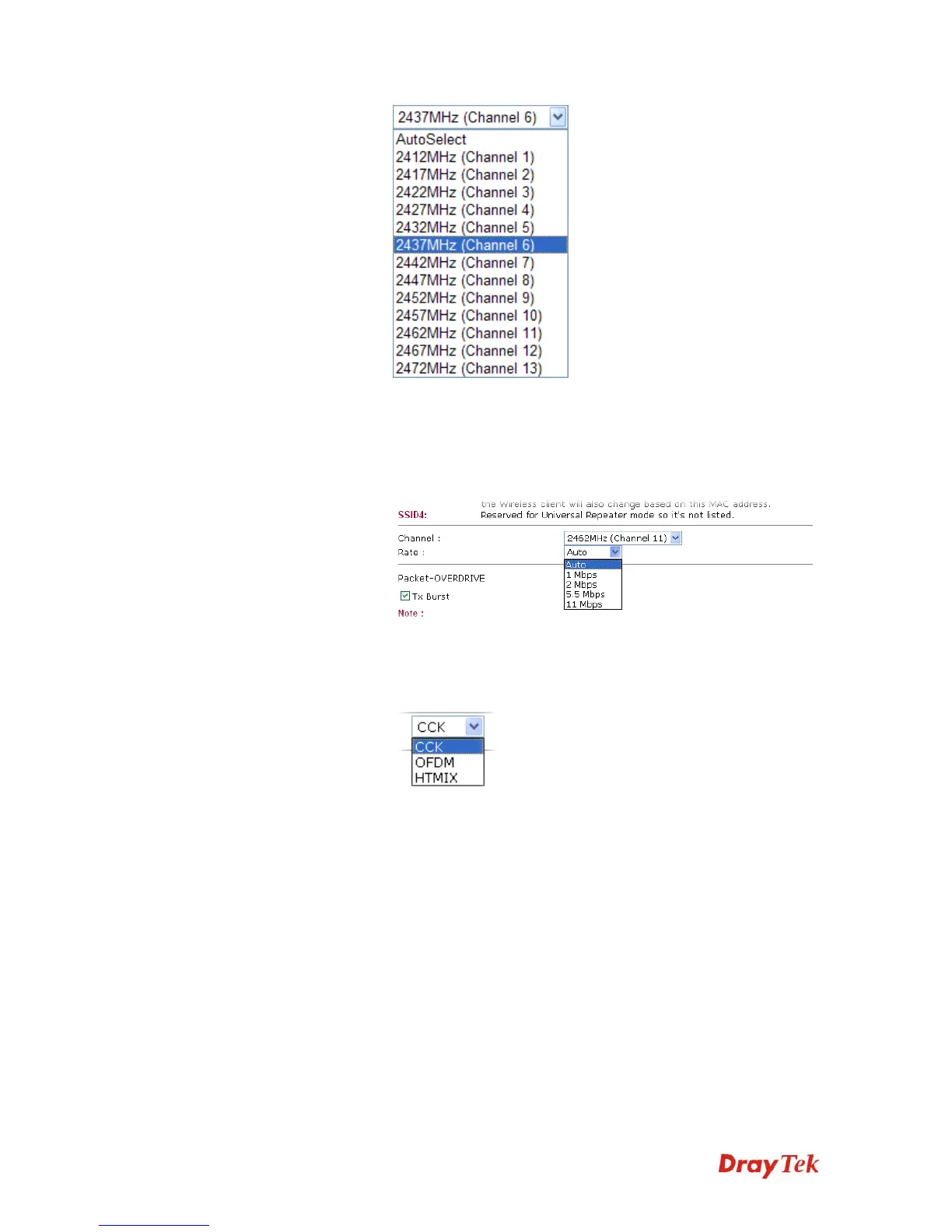

Extension Channel
With 802.11n, there is one option to double the bandwidth per
channel. The available extension channel options will be varied
according to the Channel selected above.
Rate
If you choose 11g Only, 11b Only or 11n Only, such feature
will be available for you to set data transmission rate.
Phy Mode
There are three types of transmission rates developed by
different techniques for Phy Mode. Data will be transmitted via
communication channel.
Subnet
Choose LAN-A or LAN-B for each SSID.
Security
Select WEP, TKIP or AES as the encryption algorithm.
Peer Mac Address
Four peer MAC addresses are allowed to be entered in this page
at one time.
Packet-OVERDRIVE
This feature can enhance the performance in data transmission
about 40%* more (by checking Tx Burst). It is active only
when both sides of Access Point and Station (in wireless client)
invoke this function at the same time. That is, the wireless client
must support this feature and invoke the function, too.
Note: Vigor N61 wireless adapter supports this function.
Therefore, you can use and install it into your PC for matching
with Packet-OVERDRIVE (refer to the following picture of
Vigor N61 wireless utility window, choose Enable for
TxBURST on the tab of Option).
