VigorSwitch G2080 User’s Guide
47
2
2
.
.
5
5
.
.
3
3
I
I
P
P
T
T
o
o
S
S
C
C
l
l
a
a
s
s
s
s
i
i
f
f
i
i
c
c
a
a
t
t
i
i
o
o
n
n
Function name:
IP ToS Classification
Function description:
Another QoS function is the application of Layer 3 on network framework. We focus on
TOS field of IP header. There are three bits in TOS field. We means bit 5~7 of TOS field
that we will use. According to these 3 bits, we could arrange 8 traffics –0 0 0, 0 0 1, 0 1 0,
0 1 1, 1 0 0, 1 0 1, 1 1 0, 1 1 1. As long as we change bit 5~7 of TOS field of IP header, we
will create the 8 traffic packets we meant before. Moreover, we can set High priority or
Low priority for each traffic class. For instance, if we let TOS 0 0 0 be high priority and
TOS 0 0 1 be Low Priority, we sent in the packets that have bit 5~7 of TOS Field appears 0
0 0 from the port 2 and the packets that have bit 5~7 of TOS Field appears 0 0 1 from the
port 3. We let the two kinds of packets be transmitted for port 1 until the port results in
congestion. The result is that the packets will be dropped partially from the port 3 because
the packets that belong to Low Priority.
Parameter description:

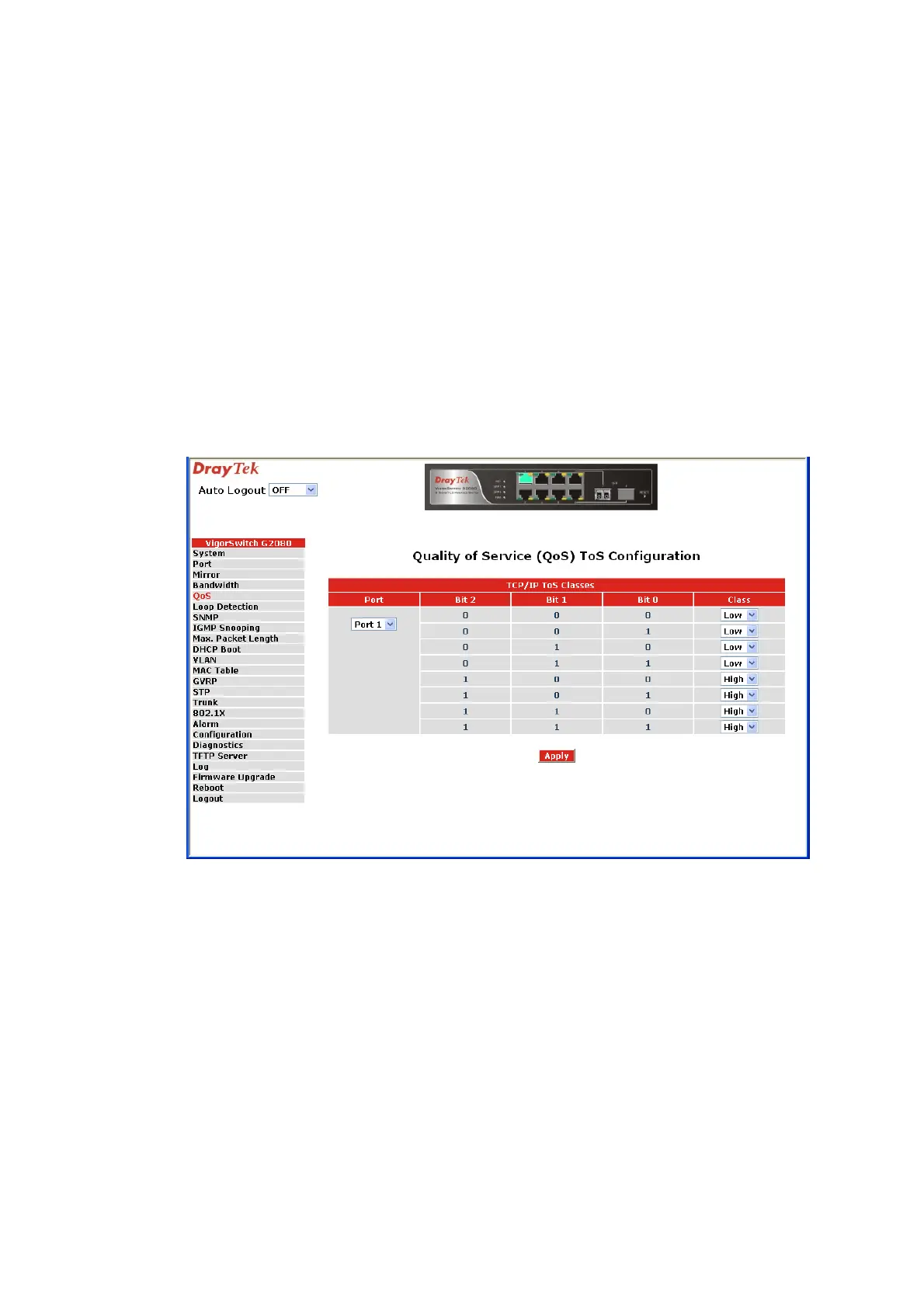

Quality of Service (QoS) ToS Configuration: Used for setting up the QoS in Layer 3.
Port: User can set up the port (1~8) respectively to let TOS QoS
function work on them. If you would like to set up all ports
at a time, user is also allowed to choose “All” in the
selection list to simplify the procedure of configuration.
Bit 0, Bit 1, Bit 2: According to the arrangement of Bit 5 ~ Bit 7 in TOS Field
of IP Header, it can form 8 kinds of traffics, including 0 0 0,
0 0 1, 0 1 0, 0 1 1, 1 0 0, 1 0 1, 1 1 0 and 1 1 1.
Class: 8 kinds of traffic as mentioned above, user can set up High
Priority or Low Priority for each port respectively.
