VigorSwitch G2080 User’s Guide
71
2
2
.
.
1
1
2
2
.
.
4
4
S
S
t
t
a
a
t
t
i
i
c
c
F
F
i
i
l
l
t
t
e
e
r
r

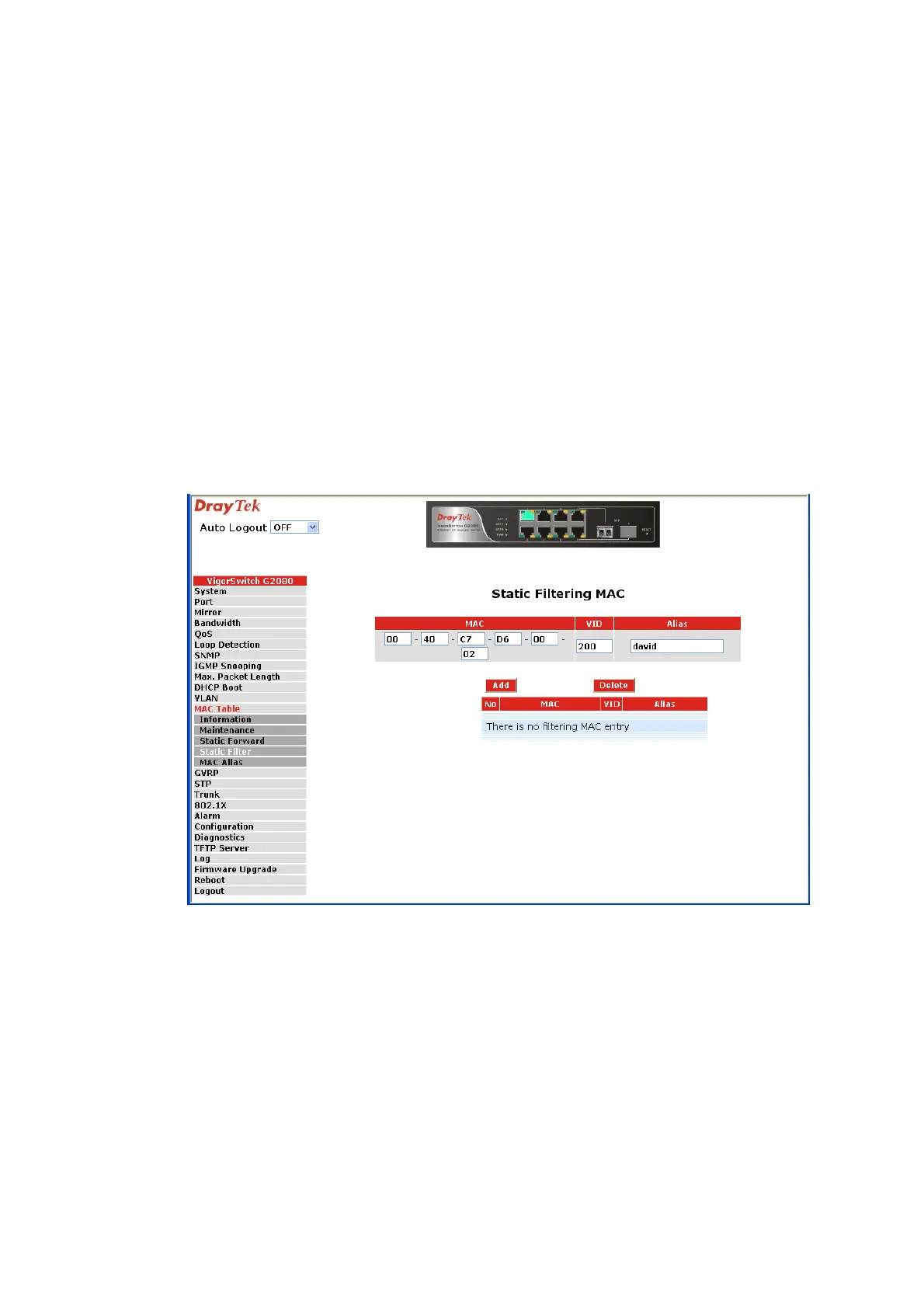

Function name:
Static Filter
Function Description:
Static Filter is a function that denies the packet forwarding if the packet’s MAC Address is
listed in the filtering Static Filter table. User can very easily maintain the table by filling in
MAC Address, VID (VLAN ID) and Alias fields individually. User also can delete the
existed entry by clicking <Delete> button.
Parameter description:
MAC: It is a six-byte long Ethernet hardware address and usually
expressed by hex and separated by hyphens. For example,
00 – 40 - C7 - D6 – 00 - 02
VID: VLAN identifier. This will be filled only when tagged
VLAN is applied. Valid range is 1 ~ 4094.
Alias: MAC alias name you assign.
