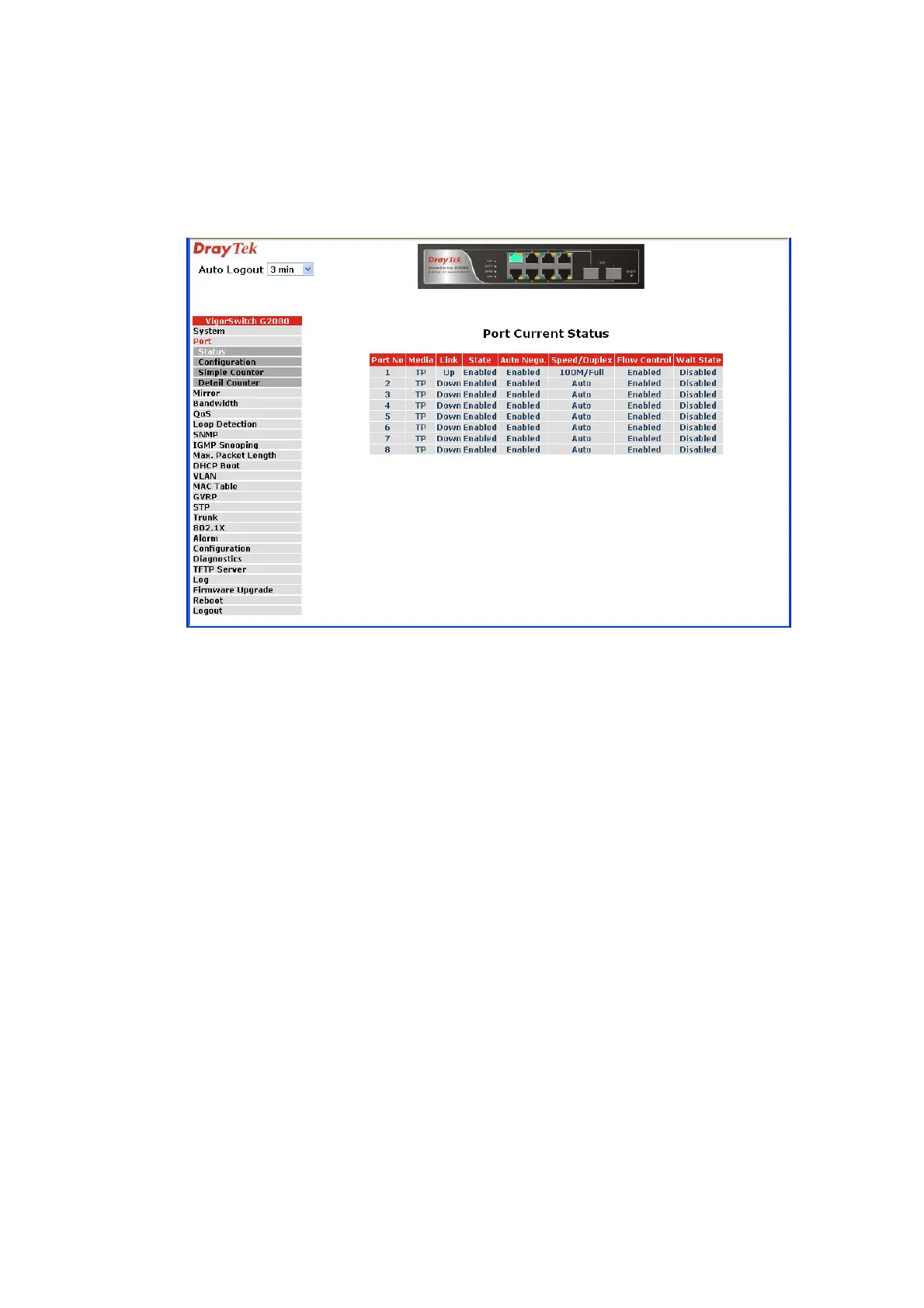

The function Port Status gathers the information of all ports’ current status and reports it by
the order of port number, link status, port state, Auto-Negotiation status, speed/duplex and
flow control. An extra media type information for the module ports 7 and 8 is also offered
Function name:
Port Status
Function Description:
Report the latest updated status of all ports in this switch. When any one of the ports in the
switch changes its parameter displayed in the page, it will be automatically refreshed the
port current status about every 5 seconds.
Parameter Description:
Port No: Display the port number. The number is 1 – 8. Both port 7
and 8 are optional modules.
Media: Show the media type adopted in all ports. The Port 7 and
Port 8 are optional modules, which support either fiber or
UTP media with either Gigabit Ethernet (1000Mbps) or
10/100Mbps Fast Ethernet port. They may have different
media types and speed. Especially, fiber port has
comprehensive types of connector, distance, fiber mode and
so on. The switch describes the module ports with the
following page.
Link: Show that if the link on the port is active or not. If the link is
connected to a working-well device, the Link will show the
link “Up”; otherwise, it will show “Down”. This is
determined by the hardware on both devices of the
connection. No default value.
State: Show that the communication function of the port is
“Enabled” or “Disabled”. When it is enabled, traffic can be
To Next Page
