VigorSwitch G2080 User’s Guide
63

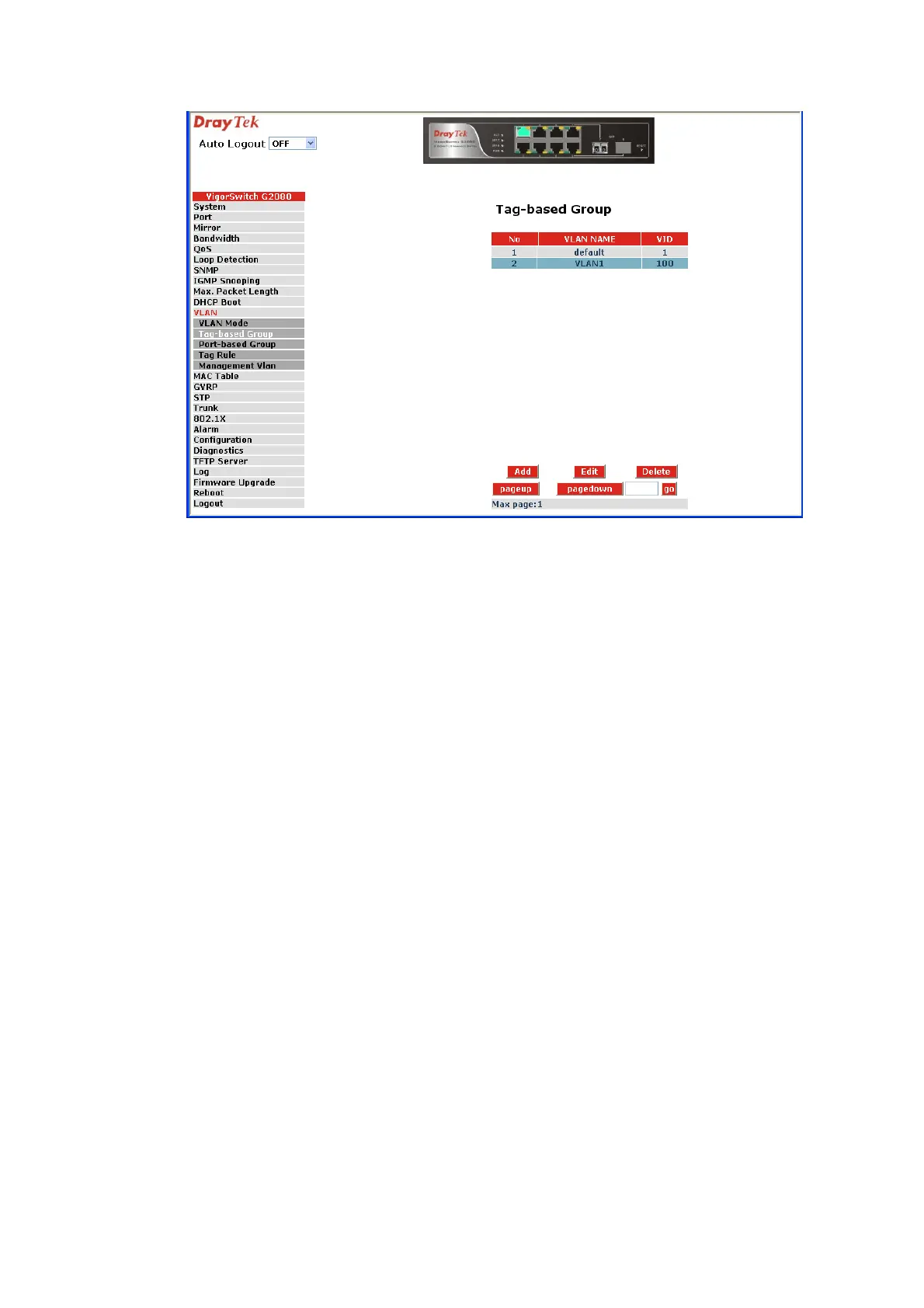

Edit a group:
Just select a group entry and press the <Edit> button, then you can modify a group’s
description, SYM-VLAN and member set.
2
2
.
.
1
1
1
1
.
.
3
3
P
P
o
o
r
r
t
t
-
-
b
b
a
a
s
s
e
e
d
d
G
G
r
r
o
o
u
u
p
p
Function name:
Port-based Group Configuration
Function description:
It shows the information of the existed Port-based VLAN Groups. You can easily create,
edit and delete a Port-based VLAN group by pressing <Add>, <Edit> and <Delete>
function buttons. User can add a new VLAN group by inputting a new VLAN name.
Parameter description:
VLAN Name: The name defined by administrator is associated with a
VLAN group. Valid letters are A-Z, a-z, 0-9, “
- “ and “_”
characters. The maximal length is 15 characters.
Member: This is used to enable or disable if a port is a member of the
new added VLAN, “Enable” means it is a member of the
VLAN. Just tick the check box (
;) beside the port x to
enable it.
