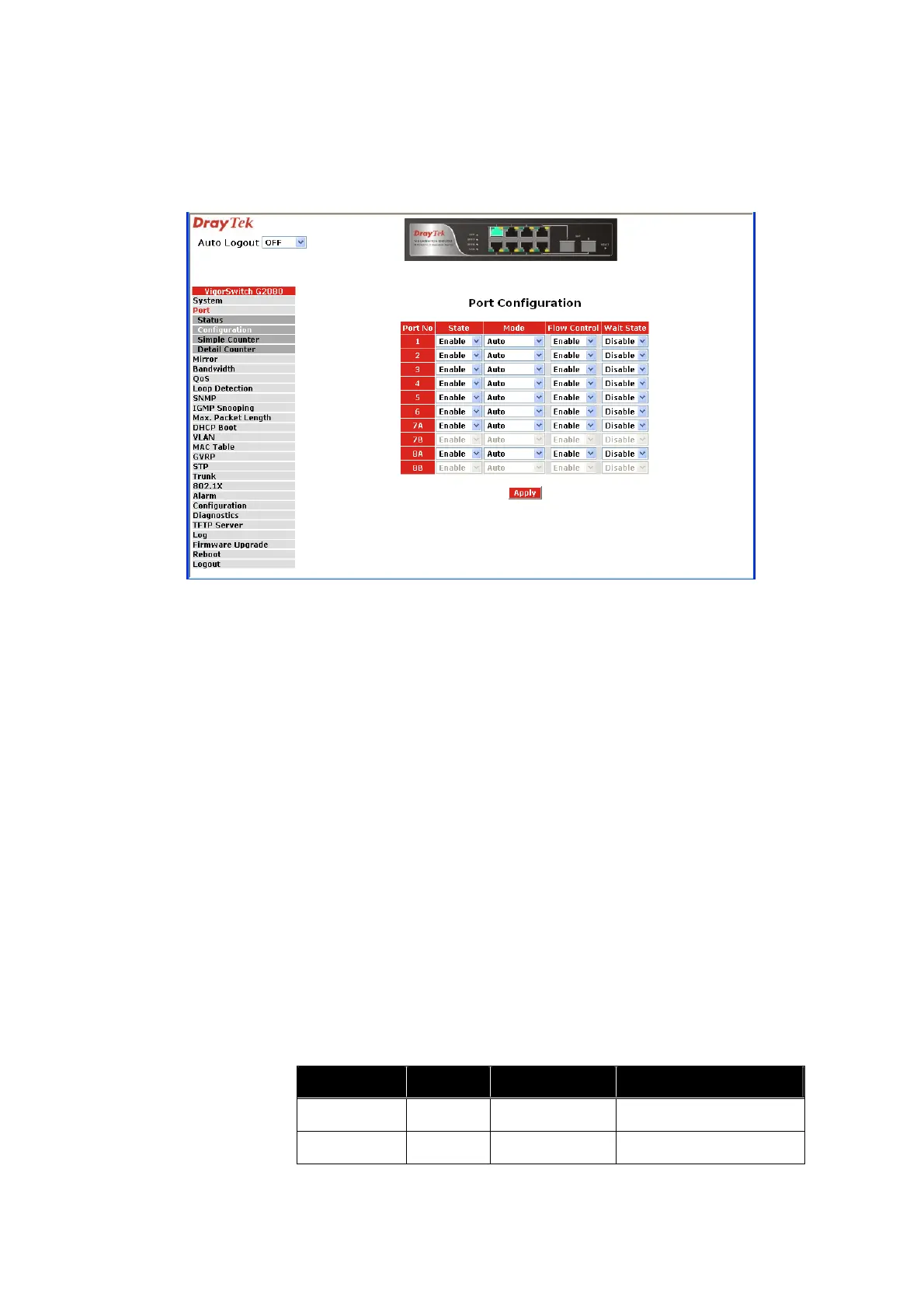

Port Configuration is applied to change the setting of each port. In this configuration
function, you can set/reset the following functions. All of them are described in detail
below.
Function name:
Port Configuration
Function description:
It is used to set each port’s operation mode. The switch supports 3 parameters for each port.
They are state, mode and flow control.
Parameter description:
State: Set the communication capability of the port is Enabled or
Disabled. When enabled, traffic can be transmitted and
received via this port. When disabled, the port is blocked
and no traffic can be transferred through this port. Port State
is configurable by the user. There are only two states
“Enable” and “Disable” able to choose. If you set a port’s
state “Disable”, then that port is prohibited to pass any
traffic, even it looks Link up.
Default: Enable.
Mode: Set the speed and duplex of the port. In speed, if the media is
1Gbps fiber, it is always 1000Mbps and the duplex is full
only. If the media is TP, the Speed/Duplex is comprised of
the combination of speed mode, 10/100/1000Mbps, and
duplex mode, full duplex and half duplex. The following
table summarized the function the media supports.
Media type NWay Speed Duplex
1000M TP ON/OFF 10/100/1000M Full for all, Half for 10/100
1000M Fiber ON/OFF 1000M Full
To Next Page
