SECTION 5 MAINTENANCE
Page 28
OM560C99/1E DRESSTA
COOLING SYSTEM

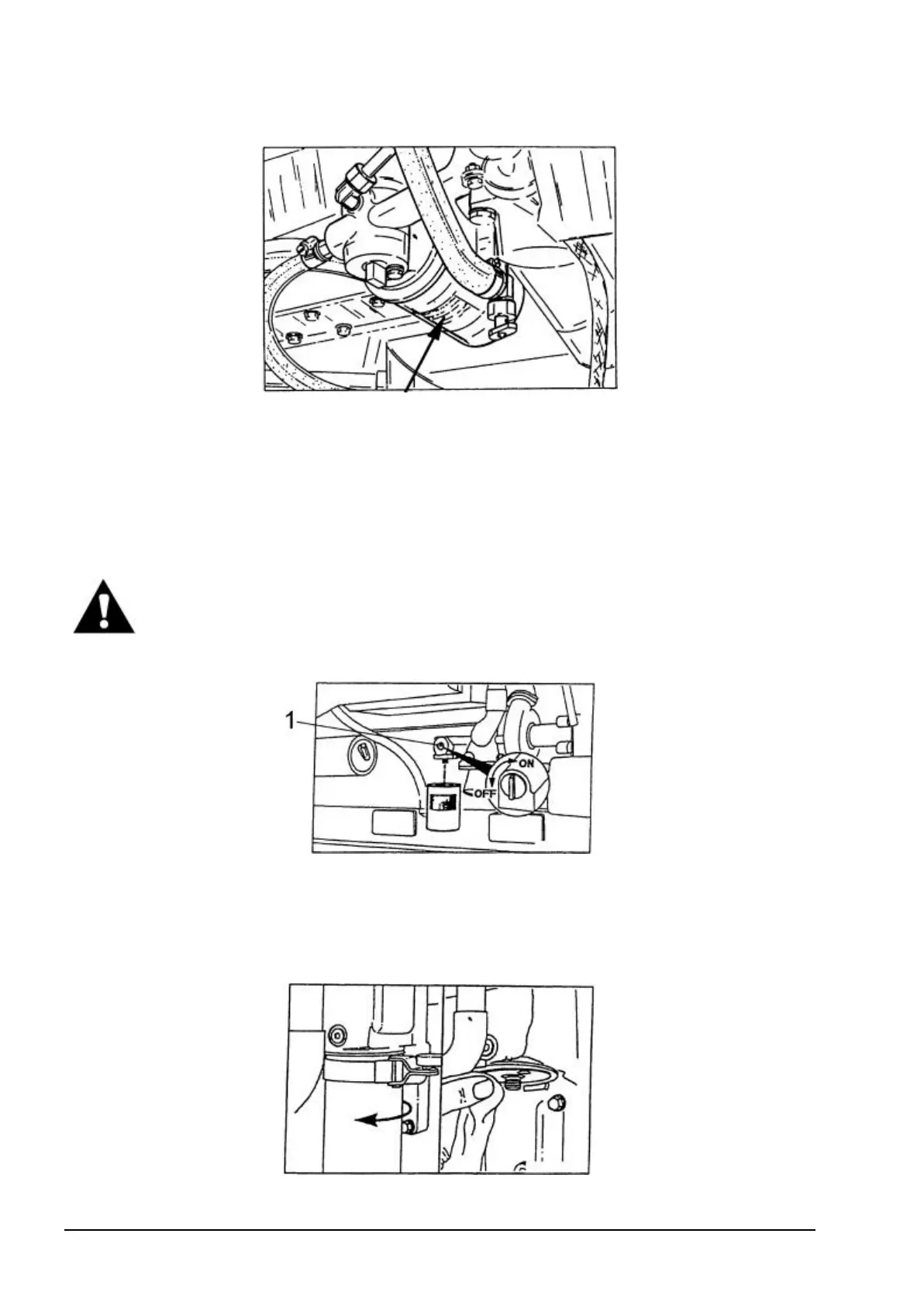

Fig. 5.20. Location of Coolant Filter
Coolant filter is located on the left side of the engine.
Be careful not to allow dirt, water or other foreign material to get into a new filter. Keep new filters in
the original package until ready for installation.
REPLACEMENT
WARNING! Hot, scalding coolant can spray out if the radiator cap is removed
suddenly. Relieve system pressure by slowly turning the cap to the first notch or
lifting the safety lever (if equipped). Remove the cap only after the pressure is
relieved.
Fig. 5.21. Shut-Off Valve of Coolant Filter
1. Open the engine side access door on the left side of the machine.
2. Open the radiator cap. Close shut-off valve (1) located on the left side of the engine, by placing it
in OFF position.
Fig. 5.22. Cleaning Coolant Filter Head
