FUEL SYSTEM

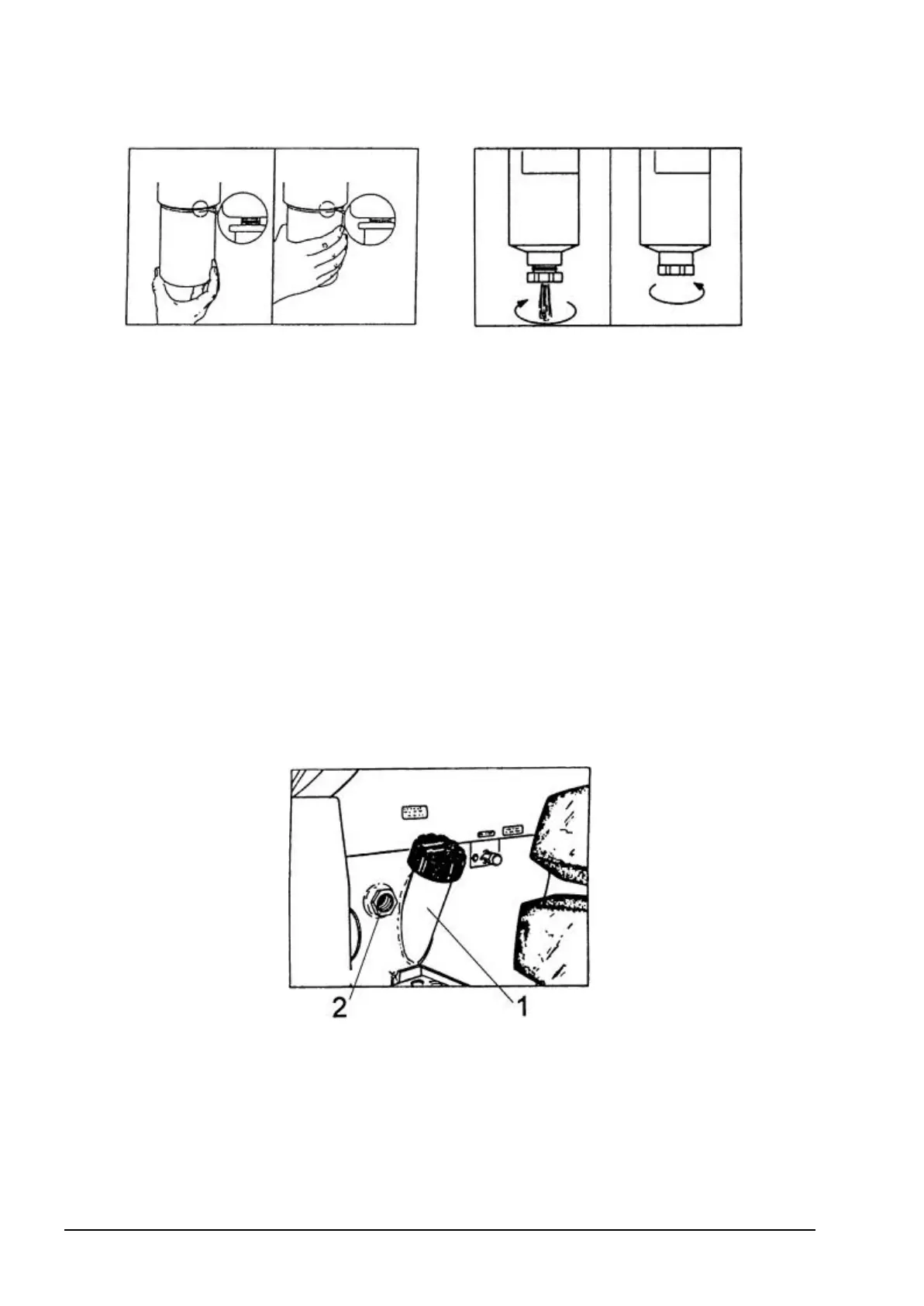

Fig. 5.43. Method of Fuel Filter Installation Fig. 5.44. Draining Fuel Filter Water Separator
Fuel filters are equipped with water separators., Fig. 5.44.
To drain water and sediment carry out as follows:
– stop the engine,
– turn the water separator drain valve to the left by 1.5 to 2 turns,
– drain the water until clear fuel start to flow,
– close the valve by turning home to the right.
NOTE: Do not overtighten the valve not to damage valve thread.
5.13.2. FUEL TANK
FUEL STRAINER
The fuel strainer is installed in filler pipe (1, Fig. 5.45). Access is possible upon the removal of the
filler cap and retainer. The fuel strainer performs a coarse filtration of the fuel facilitating the
operation of the fuel filters. Keep the fuel strainer clean. Use kerosene or diesel fuel for cleaning.
FUEL LEVEL SIGHT GAUGE
Fig. 5.45. Fuel Tank
1 - Filler Pipe 2 - Sight Gauge
Sight gauge (2, Fig. 5.45.) is located on the right side of the fuel tank. If the fuel level is not visible in
the gauge, fill the tank. To prevent moisture due to condensation, the fuel tank should be refilled at
the end of each day’s operation.
