DRESSTA 560C - Schematic of Torque Converter and Transmission Hydraulic System

SPECIFICATIONS SECTION 6
Page 5
DRESSTA OM560C99/1E
SCHEMATIC OF WHEEL LOADER DRIVE TRAIN
The description of the drive train assemblies shown in Fig. 6.1.
1 - Engine
2 - Torque Converter
3 - Transmission
4 - Front Drive Axle
5 - Rear Drive Axle
6-9 Drive Shafts
10 - Transfer Drive
11 - Parking Brake
12 - Bolster
13 - Service Brake
14 - Ground Driven Steering Pumps
F, R, S
1
, S
2
, S
3
- Clutches
6.4. SCHEMATIC OF TORQUE CONVERTER AND TRANSMISSION
HYDRAULIC SYSTEM

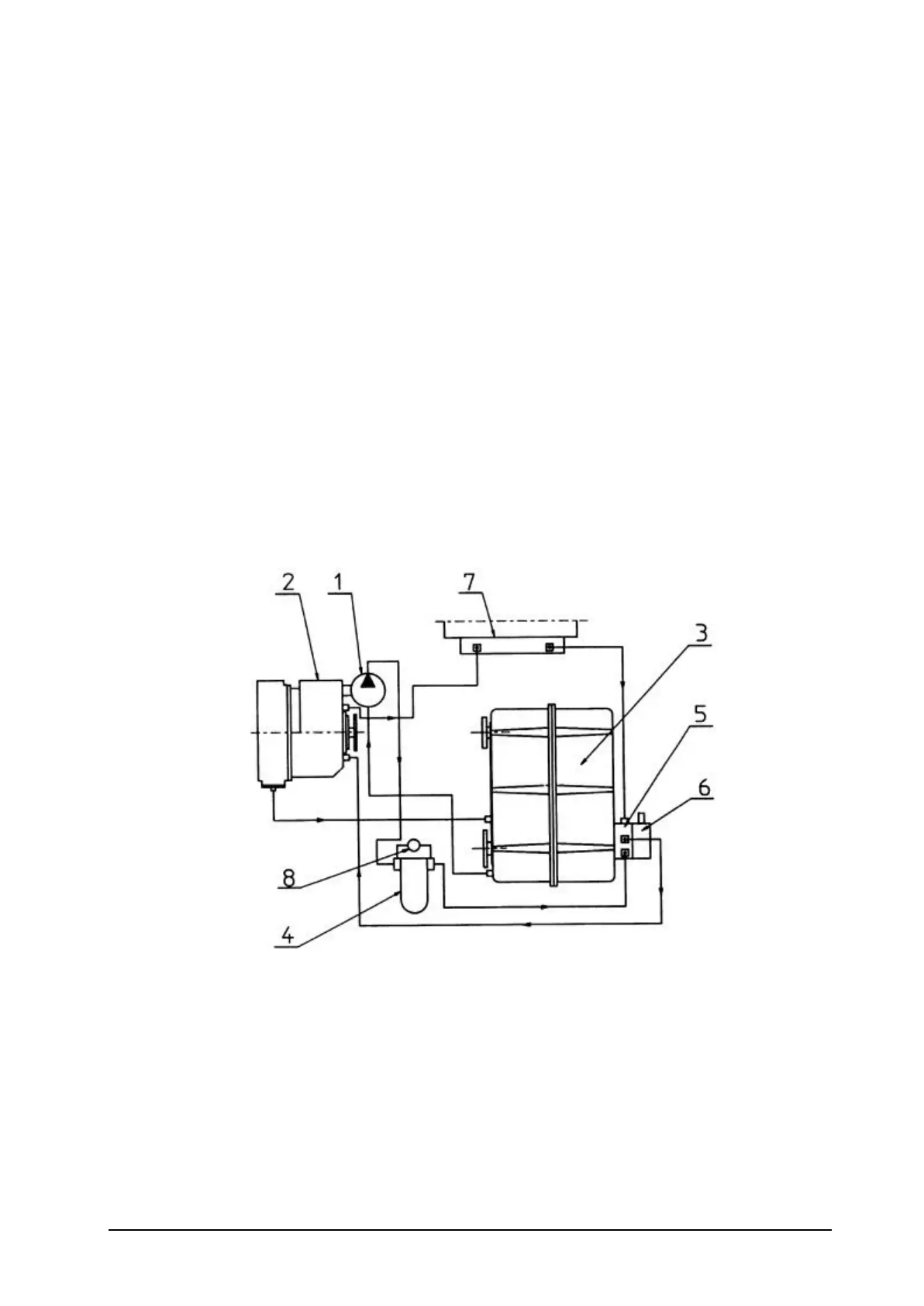

Fig. 6.2. Schematic of Torque Converter and Transmission Hydraulic System
1. Pump
2. Torque Converter
3. Transmission
4. Pressure Filter
5. Regulating Valves
6. Steering Valves
7. Radiator
8. Filter Switch
