SECTION 6 SPECIFICATIONS

Page 16

OM560C99/1E DRESSTA

SPECIFICATIONS

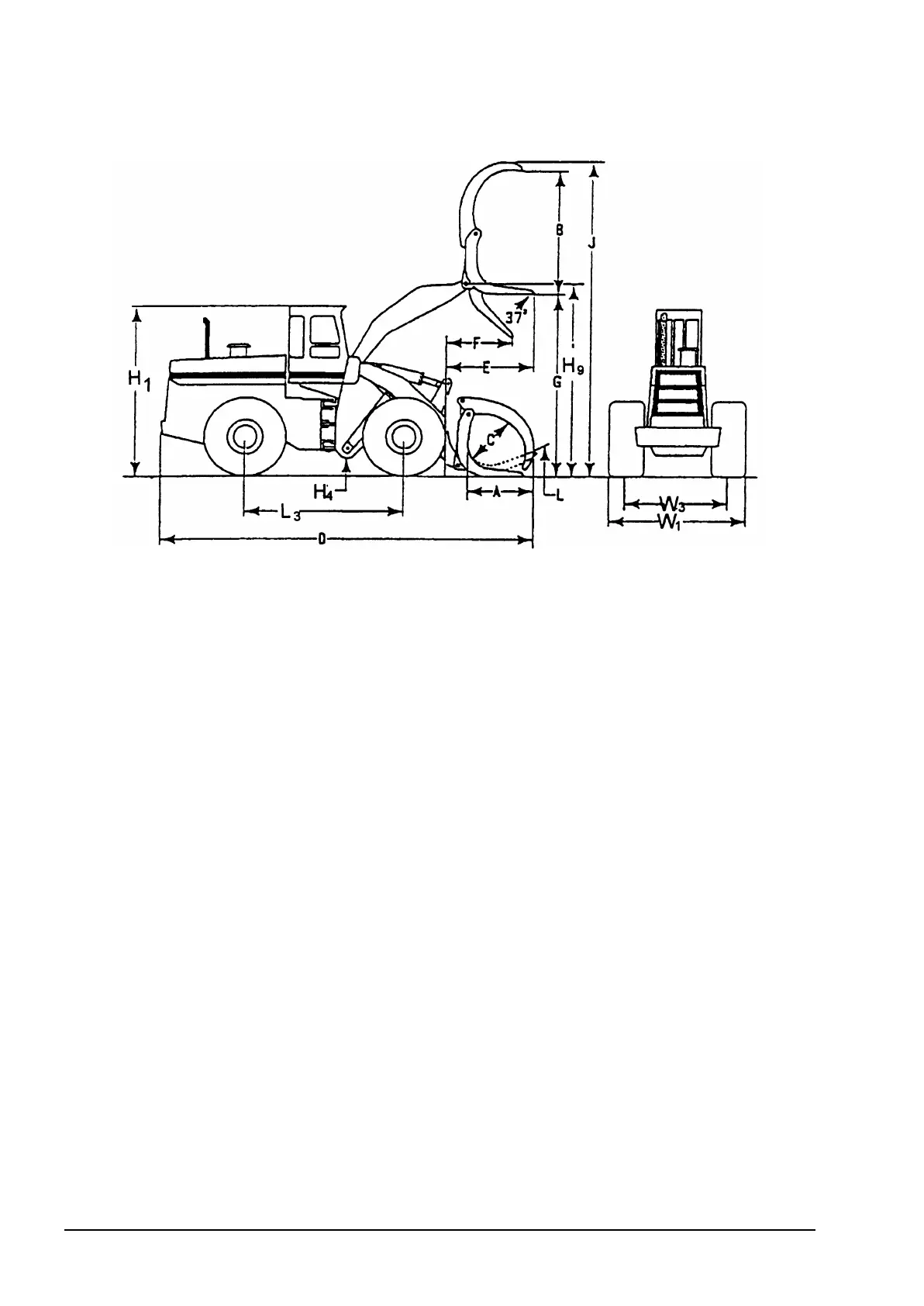

Fig. 6.8. Overall Dimensions - 560C LOGGER with Grapple

GRAPPLE

90-108-119 HC-90-112

A Length of tines ............................................................................................. 2290 mm .......2290 mm

B Maximum clamp opening ............................................................................ 4280 mm .......4060 mm

C Minimum closure diameter.......................................................................... 2290 mm .......2790 mm

D Overall machine length, tines on ground .................................................. 10440 mm .....10640 mm

E Reach at maximum lift, tines level .............................................................. 2730 mm .......2940 mm

F Reach at maximum dump and maximum lift.............................................. 2000 mm .......2170 mm

G Maximum tine height with tines level........................................................... 4540 mm .......4540 mm

J Maximum overall height................................................................................ 9390 mm .......9390 mm

L Maximum grapple rollback at ground.................................................................... 9.5° ................9.5°

Grapple width (not shown in Fig. 6)............................................................. 3500 mm .......3500 mm

6.8.2. CAPACITIES

Refill Service

Fuel tank..................................................................................................................625 l

Cooling system .......................................................................................................101 l

Front axle ..................................................................................................................80 l

Rear axle...................................................................................................................80 l

Hydraulic system (loader and steering)..................................................................382 l

Hydraulic tank 185 l

Transmission system .............................................................................................144 l

Transmission 85 l

Engine and filter ........................................................................................................57 l

Steering gear..........................................................................................................0.33 l

Air conditioner .....................................................................................................1.22 kg
