DRESSTA 560C - Servicing the Breather; Cab; Loader Equipment

MAINTENANCE SECTION 5
Page 51
DRESSTA OM560C99/1E
TRANSMISSION AND TORQUE CONVERTER
5.18.5. SERVICING THE BREATHER
The breather is located on the LH side of the rear main frame close to the torque converter (Fig.
5.57).
The breather vents the entire drive train, i.e. torque converter and transmission. Remove the
breather, disassembly and wash the breather in a commercial cleaning solvent available.
5.19. CAB

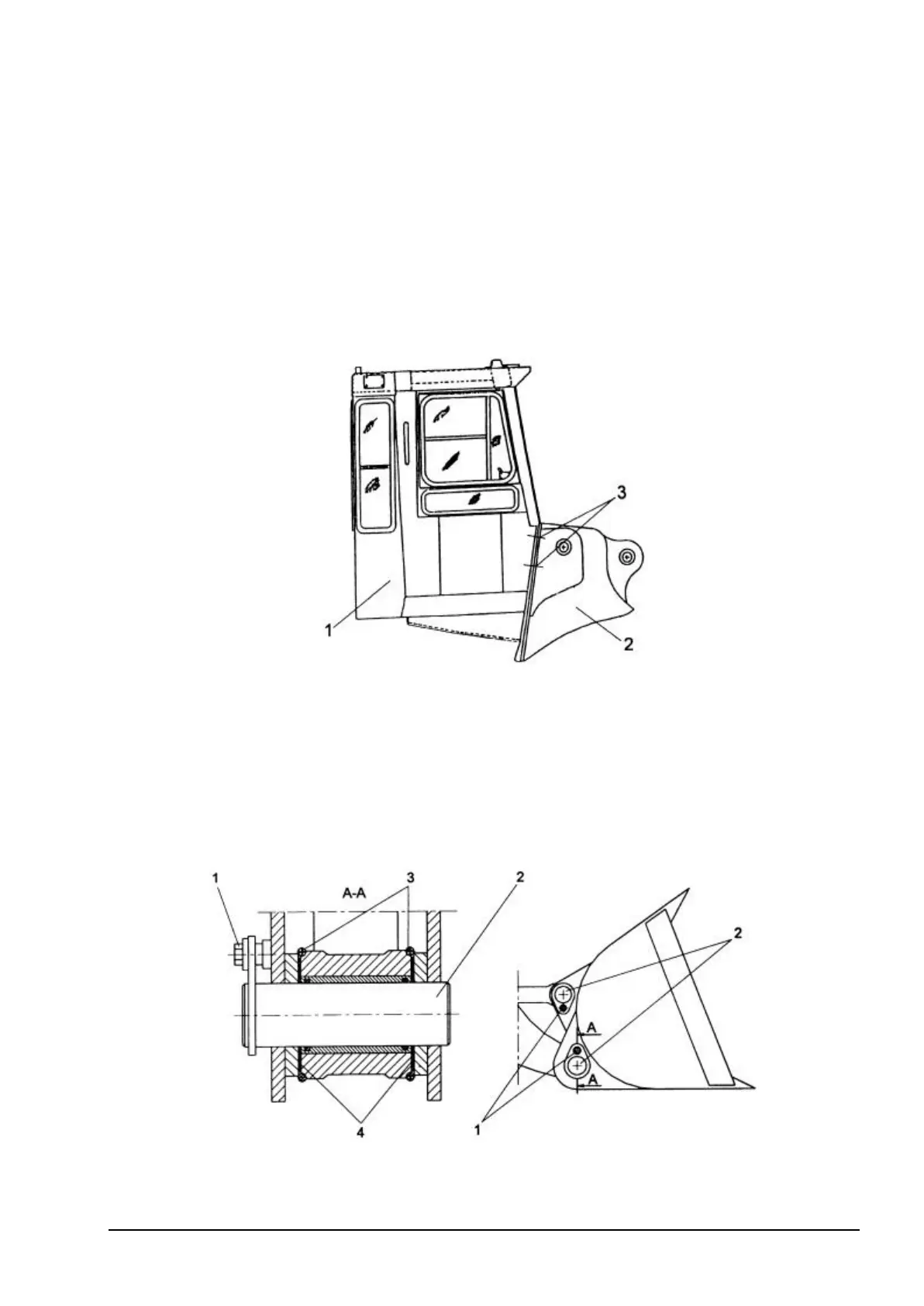

Fig. 5.58. Cab Mounting
1 - Cab 2 - Front Frame 3 - Bolts
Check periodically torque of ROPS cab mounting bolts. Refer to Section 6 SPECIAL TORQUES.
5.20. LOADER EQUIPMENT
BUCKET INSTALLATION AND REMOVAL
Fig. 5.59. Bucket Installation
1 - Bolt
2 - Pin
3 - O-Ring
4 - Shim
