SECTION 4 OPERATING
Page 24
OM560C99/1E DRESSTA
4.7. AIR CLEANER SERVICE INDICATOR

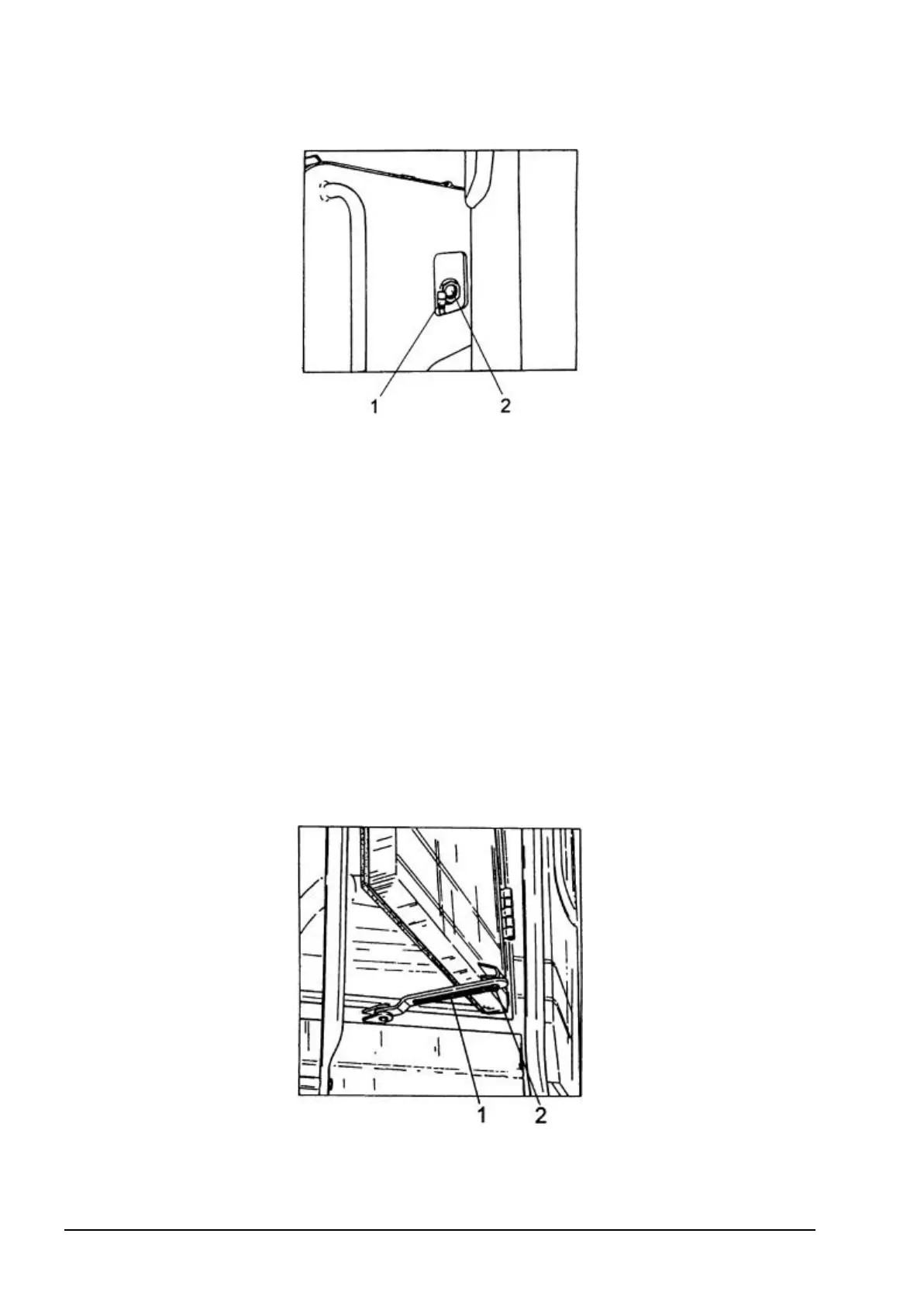

Fig. 4.15. Service Indicator and Hydraulic Reservoir Sight Gauge
1. Service Indicator 2. Hydraulic Reservoir Sight Gauge
During operation, the red band will gradually rise in the indicator window as dirt accumulates in the
air filter elements. When the filter elements reach the maximum allowable restriction, the red band
will completely fill the indicator window and automatically lock in this position. The red band will
remain fully exposed even after stopping the engine. Press the reset button on top of indicator after
the elements have been serviced.
4.8. DOME LIGHTS WITH SWITCHES
Dome lights are installed in the roof of the cab on the right and left hand side of operator’s head.
The lights are equipped with switches.
4.9 CAB DOOR LATCH
The cab door may be locked in an open position. The latch is particularly useful for cab ventilation
when operating in high ambient temperatures.
Fig. 4.16. Cab Door Latch
1 - Arm 2 - Pin
