DRESSTA 560C - Transmission and Torque Converter; Changing the Oil; Changing the Oil Filters

MAINTENANCE SECTION 5
Page 49
DRESSTA OM560C99/1E
TRANSMISSION AND TORQUE CONVERTER
6. Add oil if necessary thru the filler tube, Fig. 5.54 upon the removal of the filler cap. The oil level
should be visible in the sight gauge. Refer to "REFILL SPECIFICATIONS AND CAPACITIES
CHART".
IMPORTANT: If the oil level is above the sight gauge, drain the oil until the level is in the middle of
the sight gauge. Too much oil in the transmission will cause aeration of the oil.
5.18.2. CHANGING THE OIL
1. With the oil at the operating temperature, park the machine on level ground. Lower the bucket
to the ground, apply the parking brake and stop the engine. Install the frame locking bar.
2. Remove the drain plugs from the transmission and torque converter.
3. Replace the filter elements of the transmission and torque converter and brake cooling
systems as described in 5.18.3. and 5.7.1.
4. Drain the transmission and torque converter completely and reinstall the drain plugs.
5. Clean the transmission strainer as described in 5.18.4.
6. Fill the transmission with fresh oil as described in 5.18.1.
7. Prior to starting the machine check for leaks the following connections: drain plugs,
transmission and torque converter filters, brake cooling filter and transmission strainer.
8. Deaerate the brake system.
5.18.3. CHANGING THE OIL FILTERS

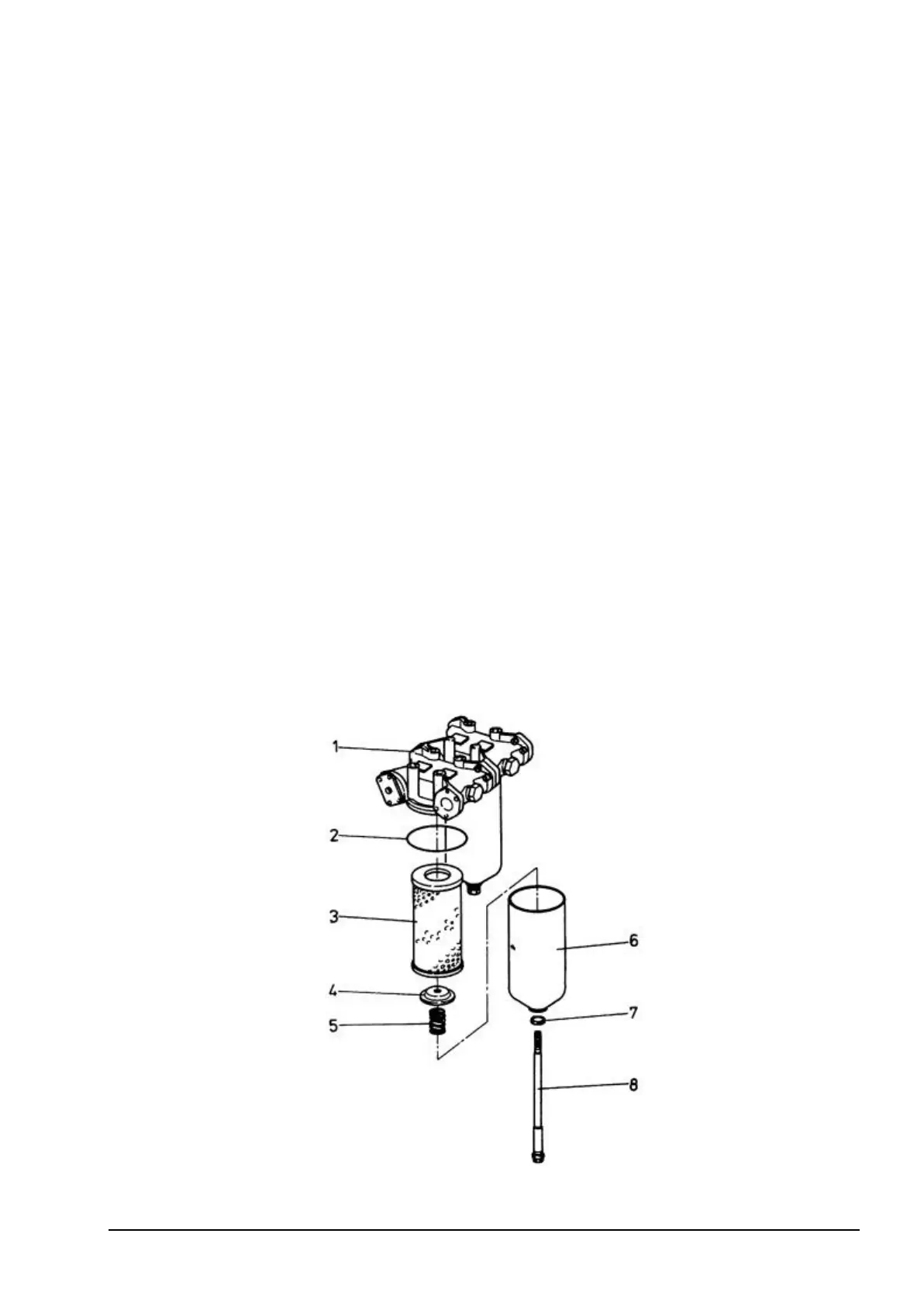

In Fig. 5.55 are shown two filters visible in cutout of right wall of the rear frame.
1. Remove all the dirt from around filter base 1, Fig. 5.55 and case 6. Both filters have identical
design. Each element is changed in the same manner.
2. Loosen bolt 8, hold case 6, and unscrew the bolt completely.
3. Pull case 6 free out of base 1 together with element 3 and other parts.
Fig. 5.55. Transmission and torque converter filters
