6.8. SPECIFICATIONS
6.8.1. GENERAL SPECIFICATIONS OF THE LOADER (Refer to Fig. 6.7. and 6.8.)
Below specified specifications are for standard configuration of 560C wheel loader equipped with
ROPS-FOPS cab, standard bucket, counterweight and 29.5 x 29 tires.
Rated bucket capacity................................................................................................................ 5.73m
3
Bucket width............................................................................................................................3645 mm
Dump clearance – H
8
*
)
...........................................................................................................3630 mm
Reach L
6
..................................................................................................................................1470 mm
Dump height – H
9
....................................................................................................................4110 mm
Breakout force..........................................................................................................................310.5 kN
Static tipping load **
)
• straight....................................................................................................................................282 kN
• full turn .................................................................................................................................250.6 kN
Operating weight ..................................................................................................................... 41800 kg
Load capacity [kN] ± 10%..............................................................................................................125.3
Overall length with bucket L
7
...................................................................................................9520 mm
Turning radius, outside corner of bucket @ carry..................................................................8600 mm
Articulation.........................................................................................................................................35°
Tread - W
3
...............................................................................................................................2590 mm
Wheelbase - L
3
........................................................................................................................3940 mm
Height to the top of cab – H
1
....................................................................................................4110 mm
Ground clearance – H
4
..............................................................................................................500 mm
Machine width – W
1
.................................................................................................................3380 mm
Axle oscillation ...............................................................................................................................11.5°
Operating weight, LOGGER version
• Grapple 90-108-119............................................................................................................ 50011 kg
• Grapple HC-90-112............................................................................................................. 50478 kg
*
)
increases or decreases according to the tire size
**
)
machine stability, weight and performance are affected by the machine configuration and optional equipment
NOTE: Performance specified per SAE J732.

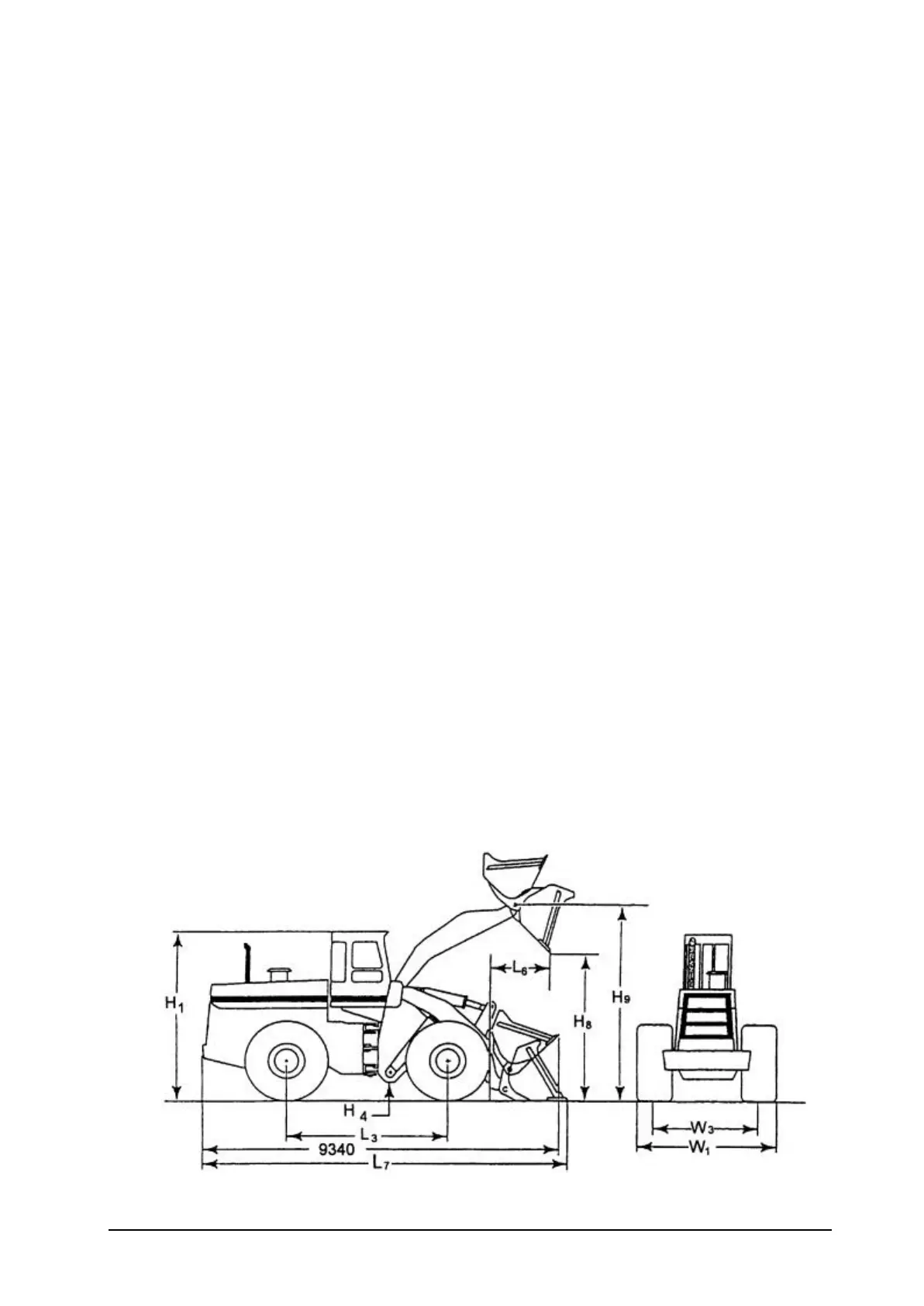

Fig. 6.7. Overall Dimensions – Wheel Loader 560C
