OPERATING SECTION 4
Page 13
DRESSTA OM560C99/1E
INSTRUMENTS AND CONTROLS
17. IGNITION SWITCH.

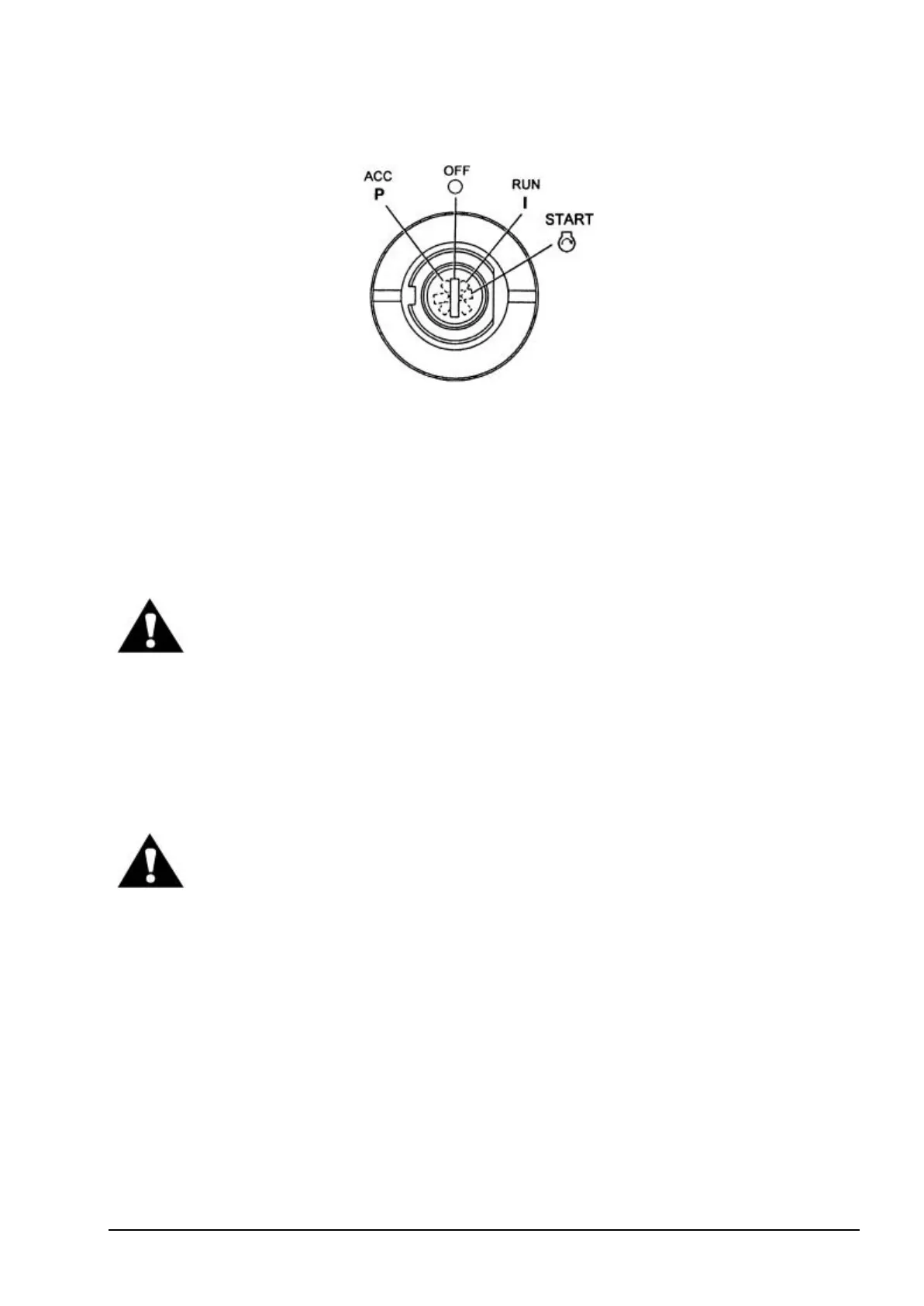

Fig. 4.5. Ignition Switch Positions
The starting switch is used to connect and disconnect circuits of electrical system and switching on
and off the engine and is equipped with a key.
Ignition switch position:
ACC – to the left – not used,
OFF - after inserting the key- disconnects the electrical circuit,
RUN - to the right – activates electrical circuits,
START- to the right with automatic return to RUN when released – engine startup.
WARNING: Do not hold the key in START position for more than 30 second.
Allow a 2 minute interval between cranking. Never place the key in START
position when engine is running.
18. FRONT AUXILIARY LAMPS SWITCH
Not equipped in standard machine. If equipped, push the switch up to turn the front roof mounted
lights and place in center position to switch them off.
19. FRONT WORK LAMPS SWITCH (only in CE configuration)
Push the switch up to turn on the passing lights, place in the central position to switch the parking
lights on. When placed in the lower position it switches the lights off.
WARNING! Always operate with work lights switched on when visibility is
reduced (fog, down, at night). Rear lights are switched on simultaneously with
front lights. Remember, lights are designed not only for the operator but also for
personnel working nearby, indicating position and movement of the machine.
20. LOW LEVEL LIGHTS SWITCH
If the machine is equipped with additional lights mounted on the front frame supports, push the
switch up to turn on the low level lights and place in the central position to turn off the lights. Not
equipped in the standard configuration of the machine.
21. ETHER START AND REAR WORK LAMPS SWITCH
The switch has three positions:
a) in the upper position switches on the rear work lights. Switch the lights when loading at night or
in fog. Do not switch the lights when traveling on public roads,
b) in the central neutral position - switches off rear lights,
c) in the lower position switches ether injection to inlet manifold of the engine. Injected dose does
not depend on time the switch is held in the lower position. When released the switch
automatically returns to the central position. For additional information refer to COLD
WEATHER STARTING (not equipped in the standard configuration of the machine).
