Mode
This function allows  the display day or night
mode.
●
Use  (1) and (2) (Fig 135) from the
Interactive Menu to select the  menu
item and press ENTER (3).
●
Select the Backlight item and press ENTER (3).
●

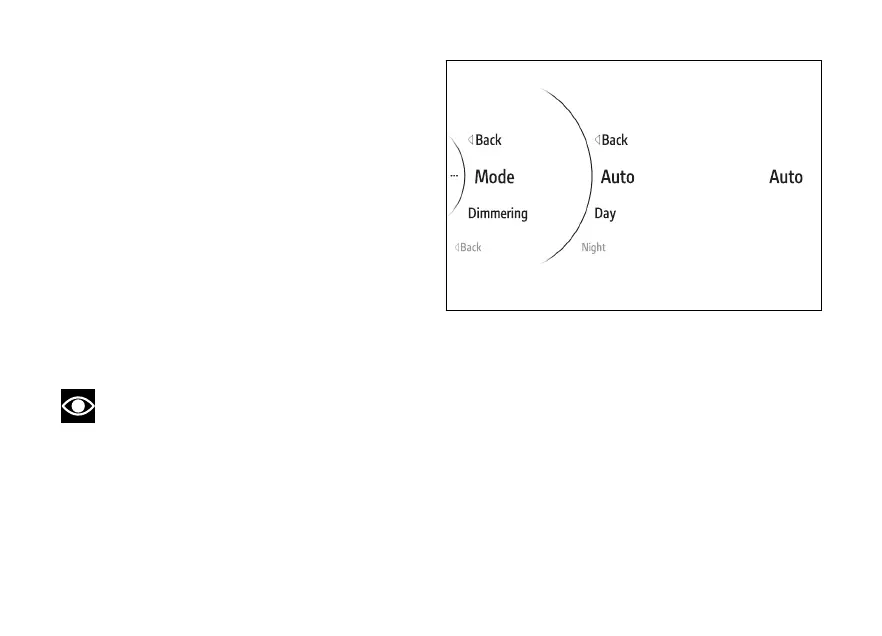

Select the Mode item and press ENTER (3).
Auto, Day and Night are displayed in the middle.
While the current status of the function is shown on
the right.
The "Auto" mode allows the background colour to
automatically change according to the ambient light
detected by the instrument panel.
Use  (1) and (2) to scroll and select the desired
mode. Press ENTER (3) to confirm.
Note
In case of  disconnection, the "Auto"
mode is automatically set.
Fig 137
159

Ducati MULTISTRADA V4 Specifications

General

Displacement	1, 158 cc
Power	170 hp (125 kW) @ 10, 500 rpm
Torque	125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke	83 mm x 53.5 mm
Compression Ratio	14:1
Front Wheel Travel	170 mm (6.7 in)
Rear Wheel Travel	180 mm (7.1 in)
Front Tire	120/70 ZR19
Rear Tire	170/60 ZR17
Wheelbase	1, 567 mm (61.7 in)
Dry Weight	215 kg (474 lb)
Curb Weight	240 kg (529 lb)
Fuel Capacity	22 l (5.8 US gal)
Engine Type	V4 Granturismo, 4-cylinder, liquid-cooled
Fuel Injection	Electronic fuel injection system, Øeq 46 mm throttle bodies
Exhaust	Single stainless steel muffler with catalytic converter and 2 lambda probes
Final Drive	Chain
Frame	Aluminum monocoque
Front Brake	2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	Ø 265 mm disc, 2-piston caliper
Seat Height	Adjustable 840-860 mm (33.1-33.9 in)
Safety Equipment	Cornering ABS, Ducati Traction Control
Standard Equipment	Cruise Control, TFT color display
