Ducati MULTISTRADA V4 User Manual

Modify PIN
●
Use  (1) and (2) from the Interactive
Menu to select the  menu item and press
ENTER (3).
●
Select the "PIN Code" item and press ENTER (3).
●
Select the Modify PIN item and press ENTER
(3).
The display shows Old PIN on the  and the first of
the 4 digits active for the entry.
Entering the code:
●
The 2 arrows above and below the digit indicate
that the number can be changed from 0 to 9
using  (1) and (2).
●
Press ENTER (3) to confirm and move on to the
following digit.
●
Repeat the procedure until entering all 4 digits.
Once the  digit is entered, press ENTER (3) and
the instrument panel behaviour will be as follows:
●
If the entered PIN is correct, the display shows
Correct.
●
If the PIN entered is incorrect, Wrong is
displayed and a new  to enter the
current PIN can be made.
If the PIN is correct, enter the new PIN.

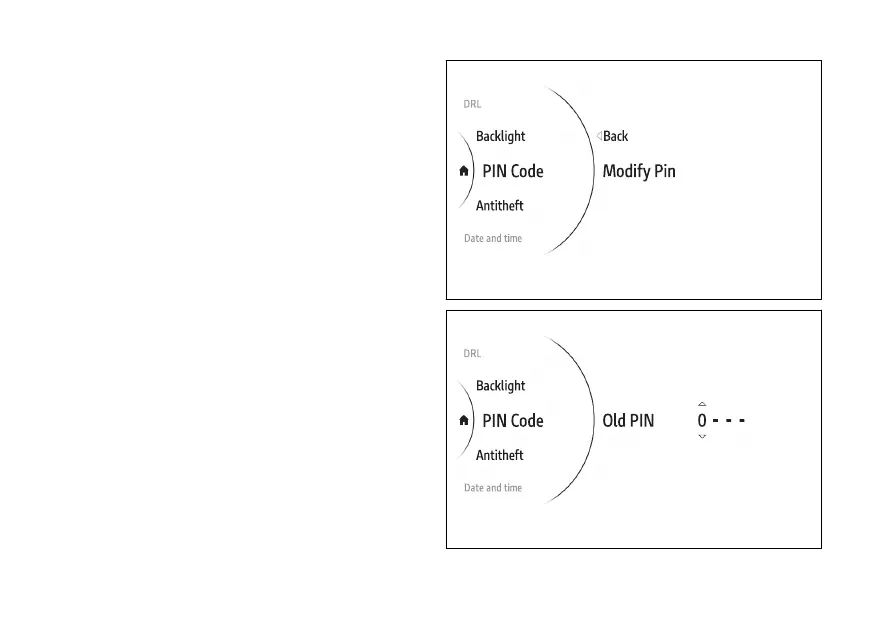

Fig 144
Fig 145
164

Ducati MULTISTRADA V4 Specifications

General

Displacement	1, 158 cc
Power	170 hp (125 kW) @ 10, 500 rpm
Torque	125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke	83 mm x 53.5 mm
Compression Ratio	14:1
Front Wheel Travel	170 mm (6.7 in)
Rear Wheel Travel	180 mm (7.1 in)
Front Tire	120/70 ZR19
Rear Tire	170/60 ZR17
Wheelbase	1, 567 mm (61.7 in)
Dry Weight	215 kg (474 lb)
Curb Weight	240 kg (529 lb)
Fuel Capacity	22 l (5.8 US gal)
Engine Type	V4 Granturismo, 4-cylinder, liquid-cooled
Fuel Injection	Electronic fuel injection system, Øeq 46 mm throttle bodies
Exhaust	Single stainless steel muffler with catalytic converter and 2 lambda probes
Final Drive	Chain
Frame	Aluminum monocoque
Front Brake	2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	Ø 265 mm disc, 2-piston caliper
Seat Height	Adjustable 840-860 mm (33.1-33.9 in)
Safety Equipment	Cornering ABS, Ducati Traction Control
Standard Equipment	Cruise Control, TFT color display
