Ducati MULTISTRADA V4 User Manual

As the thresholds set for service coupons approach,
upon each Key-On the instrument panel activates
the relevant indications for 5 seconds in large mode
(A, Fig 198)in yellow, showing the remaining distance
or days: for "Oil service" (C) and "Valve check" (D) it is
activated 1,000 km (621 miles) before service is due,
for "Annual service" (E) 30 days before service is due.
Once the threshold of the service coupons has been
reached and upon every Key-On, the corresponding
red signal is activated in large mode (A, Fig 198)for 5
seconds, then the signal toggles to small mode
(B, Fig 198): Oil service (F), Valve check (G), Annual
service (H).

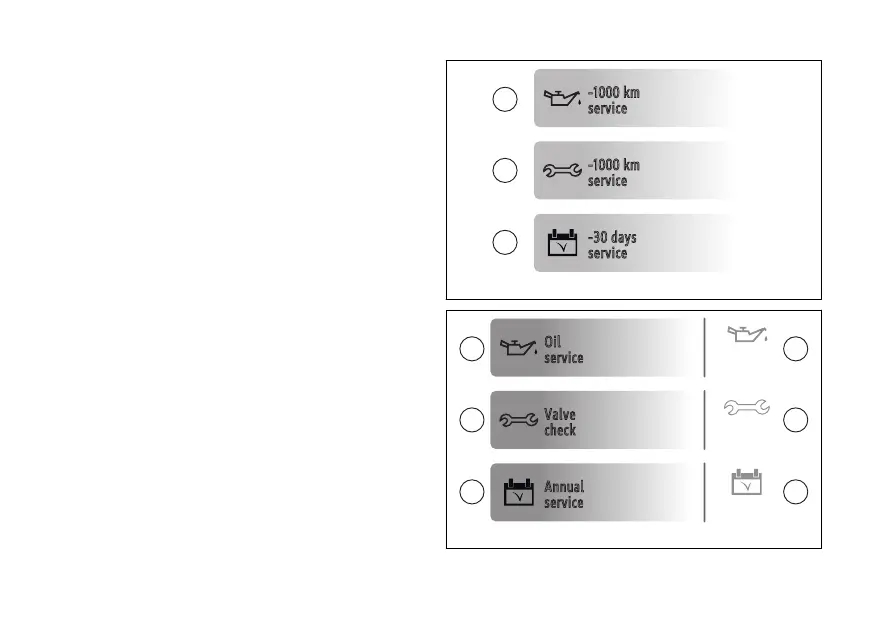

The image (Fig 200) shows the large version on the
 and the small version of the relevant service
coupons on the right.
Red service warning is displayed until reset by the
Ducati authorised service centre, during
maintenance.
The thresholds of the service coupons can be
checked via the "Service" function in the 
menu" (page 174).
-30 days
service
-1000 km
service
-1000 km
service
C
D
E
Fig 199
Annual
service
Oil
service
Valve
check
SERVICE
SERVICE
SERVICE
F
G
H
F
G
H
Fig 200
198

Ducati MULTISTRADA V4 Specifications

General

Displacement	1, 158 cc
Power	170 hp (125 kW) @ 10, 500 rpm
Torque	125 Nm (92 lb-ft) @ 8, 750 rpm
Transmission	6-speed with Ducati Quick Shift (DQS) up/down
Bore x Stroke	83 mm x 53.5 mm
Compression Ratio	14:1
Front Wheel Travel	170 mm (6.7 in)
Rear Wheel Travel	180 mm (7.1 in)
Front Tire	120/70 ZR19
Rear Tire	170/60 ZR17
Wheelbase	1, 567 mm (61.7 in)
Dry Weight	215 kg (474 lb)
Curb Weight	240 kg (529 lb)
Fuel Capacity	22 l (5.8 US gal)
Engine Type	V4 Granturismo, 4-cylinder, liquid-cooled
Fuel Injection	Electronic fuel injection system, Øeq 46 mm throttle bodies
Exhaust	Single stainless steel muffler with catalytic converter and 2 lambda probes
Final Drive	Chain
Frame	Aluminum monocoque
Front Brake	2 x Ø 330 mm semi-floating discs, radially mounted Brembo Monobloc 4-piston calipers
Rear Brake	Ø 265 mm disc, 2-piston caliper
Seat Height	Adjustable 840-860 mm (33.1-33.9 in)
Safety Equipment	Cornering ABS, Ducati Traction Control
Standard Equipment	Cruise Control, TFT color display
