Chapter 2 Basic Operation
Binding
mode
Paper width Mark on label
(stapling
width)
Side staple
(option)
LTR (279.4 mm
/11 inches)
4 (258 mm
/10.16 inches)
A4 (297 mm
/11.69 inches)
5 (276 mm
/10.87 inches)
* ”1” is not for side-stapling.
NotchGroove

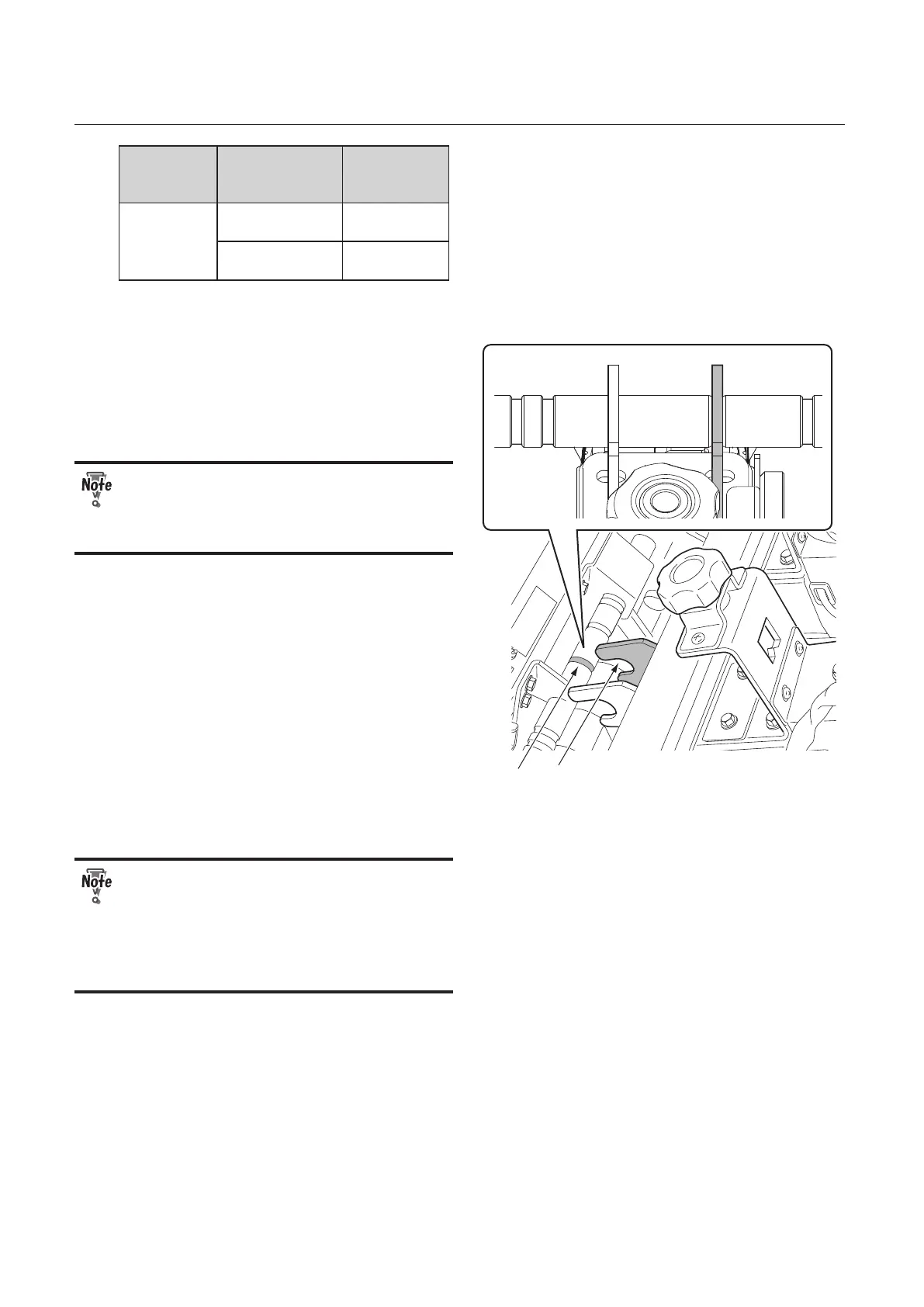

When attaching the stapler unit to the
machine, align the notch of the stapler unit
located on the non-operator’s side with the
groove on the shaft of the machine.
After attaching the stapler unit to the machine,
check that the stapler unit is vertical against
the shaft.
Make sure that the stapling widths of the
clincher and the stapler unit is the same.
Different widths may cause binding failures
and a malfunction of the machine.
10
Secure each stapler unit using the
stapler fixing knob.
11
Insert the connector of the stapler units
F and B to the inlets for stapler unit
connector F and B, respectively.
• Make sure that you do not insert the
connector of the stapler units F and B
into the wrong inlet.
• When inserting the connector of the
stapler unit into the inlet, check that the
connector clicks.
To Next Page
