- 42 -
Select menu
Retrieve JOB
Enter JOB
Settings
Select menu
Retrieve JOB
Enter JOB
Settings
JOB 01 entry
1:
DUPLO01
2:
〔
No Data
〕
3:
〔
No Data
〕

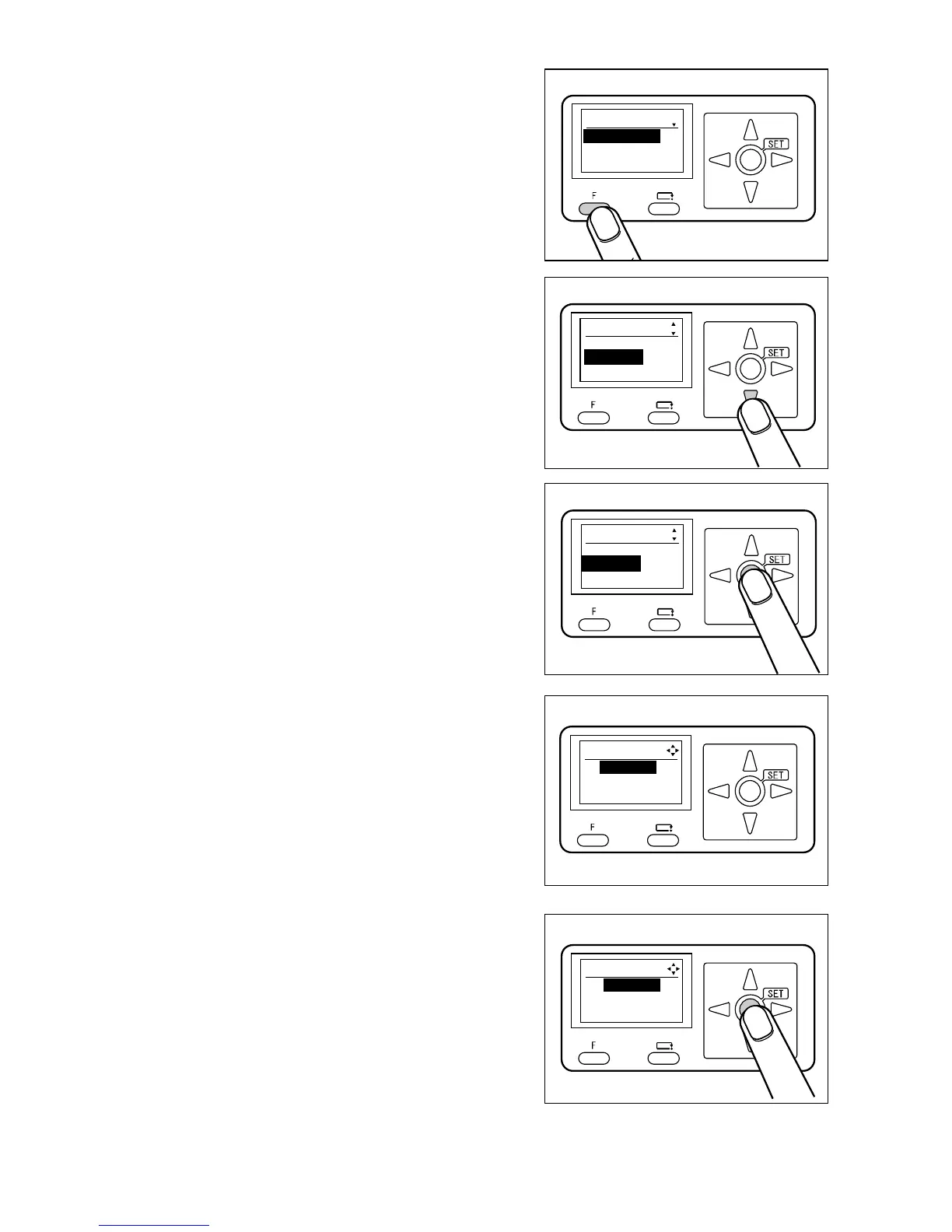

2. Press the F key to display ‘Select menu’
screen on
the LCD panel.
3. Press the CURSOR key (Down) several times to
select ‘Enter JOB’.
4. Press the SET key to fix ‘Enter JOB’.
5. Saved JOB name is displayed.
6. Press the SET key and fix the JOB No. you desire
to
change.
Select menu
Retrieve JOB
Enter JOB
Settings
JOB 01 entry
1:
DUPLO01
2:
〔
No Data
〕
3:
〔
No Data
〕
42
44
Table of Contents
Default Chapter
4
Table of Contents
4
Notes on Safety (Please Read and Observe)
6
Locations of Warning Labels
10
Chapter 1 Before Use
12
1．Part Names and Their Functions
13
Overall Appearance (DC-F1)
13
Inside of DC-F1
14
Overall Appearance (DC-SC1)
15
2．Part Names and Their Functions on the Control Panel
16
Control Panel
16
3．Description on the LCD
18
Display Screen(Stand-By Screen)
18
Function Mode Display
19
4．Paper Handling
20
About Papers
20
Confirming Right Side/Other Side and Edge/Rear Edge of Paper
20
Paper Size Limit after Folding
21
5．Turning Power ON/OFF
23
Turning Power on
23
Turning Power off
23
6．Connecting with Other Units
24
When Connecting with Other Units
24
7．Switching Input Unit
25
Selecting Input Unit
25
Notes for Input Unit
26
Chapter 2 Basic Operations
28
1．Supported Fold Type
29
Fold Type
29
2．Manual Insertion Function (Option)
30
Selecting Manual Mode
30
Entering JOB on the Control Panel (Only in Manual Mode)
31
Selecting Fold Type
34
V-Fold (1V)
34
V-Fold (2V)
34
C-Fold
35
Z-Fold
35
Gate Fold
36
Double Parallel
37
Confirming the Entered JOB (Only in Manual Mode)
38
Processing Paper by Selecting JOB (Only in Manual Mode)
40
Changing JOB Setting (Only in Manual Mode)
42
Using Log Function (Only in Manual Mode)
45
Returning to Previous Operation (Only in Manual Mode)
47
Stopping JOB Entry (Only in Manual Mode)
47
Clearing JOB Entry (Only in Manual Mode)
47
Chapter 3 Application Operations
48
1．Function Setting Mode
49
Using 'Reject Mode' (Only in DC Mode)
49
Using 'No Fold Mode' (Only in DC Mode)
50
Using 'Precision Mode' (Only When DC-SC1 Is Connected)
52
Chapter 4 Trouble Guide
54
1．Adjusting Fold Skew
55
Adjusting Horizontal Fold Skew
55
Adjusting Vertical Fold Skew
56
2．Error Messages
59
Messages for Paper Jam
59
Messages for Error in Operation
59
Error Display
60
3．When a Paper Jam Has Occuurred
68
When a Paper Jam Has Occurred in Conveyer Area F
68
When a Paper Jam Has Occurred in Conveyer Area R
70
When a Paper Jam Has Occurred in the Fold 1 Area
71
When a Paper Jam Has Occurred in the Fold 2 Area
73
When a Paper Jam Has Occurred in the Decurl Area
74
When a Paper Jam Has Occurred in the Exit Area
76
When a Paper Jam Has Occurred in the Reject Area
77
When a Paper Jam Has Occurred in the Manual Slot
78
4．Trouble Shooting
80
If Trouble Occurs
80
Contacting Serviceperson
80
Chapter 5 Maintenance
82
1． Daily Maintenance
83
2． Cleaning
84
Cleaning Conveyer Roller
84
Chapter 6 Specifications
86
